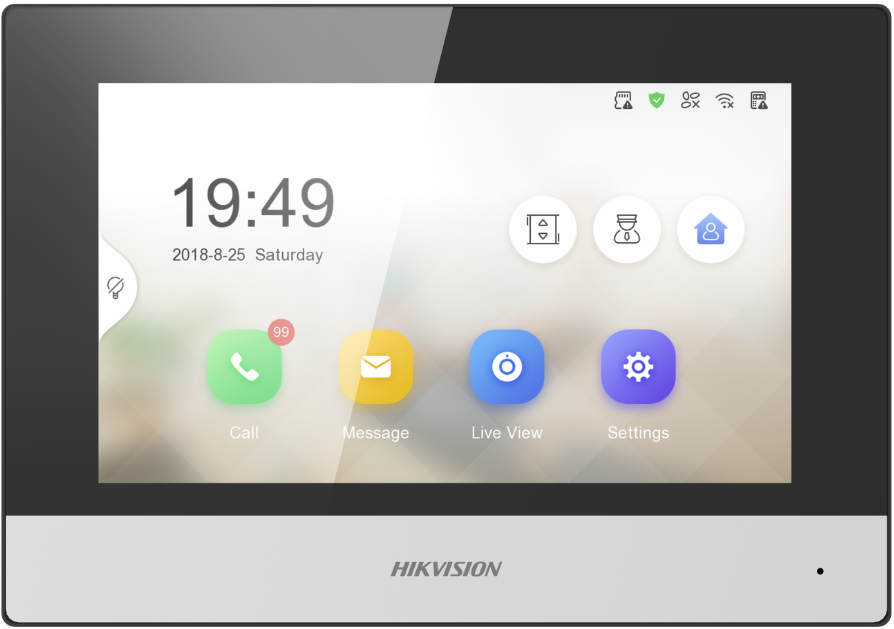

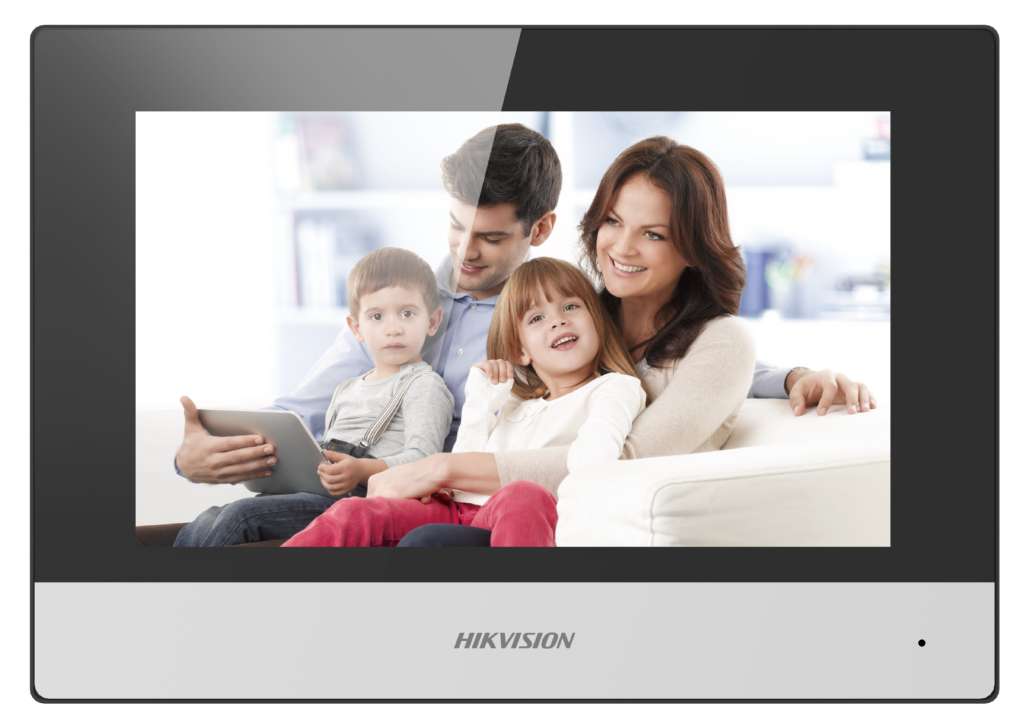

Hikvision 7 inch Touch screen LCD Monitor 2 wire

ADDITIONAL INFORMATION

● Two-pin wire for power supply and network access

● UI V2.0: User friendly design
● 7-inch colorful touch screen with resolution 1024 × 600
● 2-ch transmission plan
● Stores messages and captured pictures in the TF card
● Remote unlocking via the client software or the mobile client
● Views live videos of door stations and linked cameras
● Supports wireless network

SPECIFICATION

TECHNICAL SPECIFICATIONS

• ROM 32 MB
• RAM 128 MB
• CPU Embedded processor
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Compression Bitrate 64 Kps
• Audio Quality Noise suppression and echo cancellation
• Volume Adjustment Adjustable
• Event Capacity 200 captured pictures (with TF card); 200 alarm records - 2 MB RAM (without TF card) reserved for events
• Linked Network Camera Capacity 16
• Linked Indoor Extensions Capacity 5
• Notice Capacity 200
• Linked Door phone Capacity 17 IP door phones Max.
• Alarm Input 8-channel alarm inputs
• RS-485 1
• TF Card Max to 128 G, SD 2.0 or lower version
• Alarm Output 2 relays (30 V Max.)
• Two-Wire IP Interface 1
• Wired Network 10/100 Mbps self-adaptive through 2-wire interface
• Power Supply Method Two-wire
• Power Supply Powered by KAD704Y or KAD706Y series distributor
• Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity 10% to 90% (no-condensing)
• Wi-Fi Standard Wi-Fi 802.11 b/g/n
• Dimensions (W × H × D) 200 mm × 140 mm × 15.1 mm
