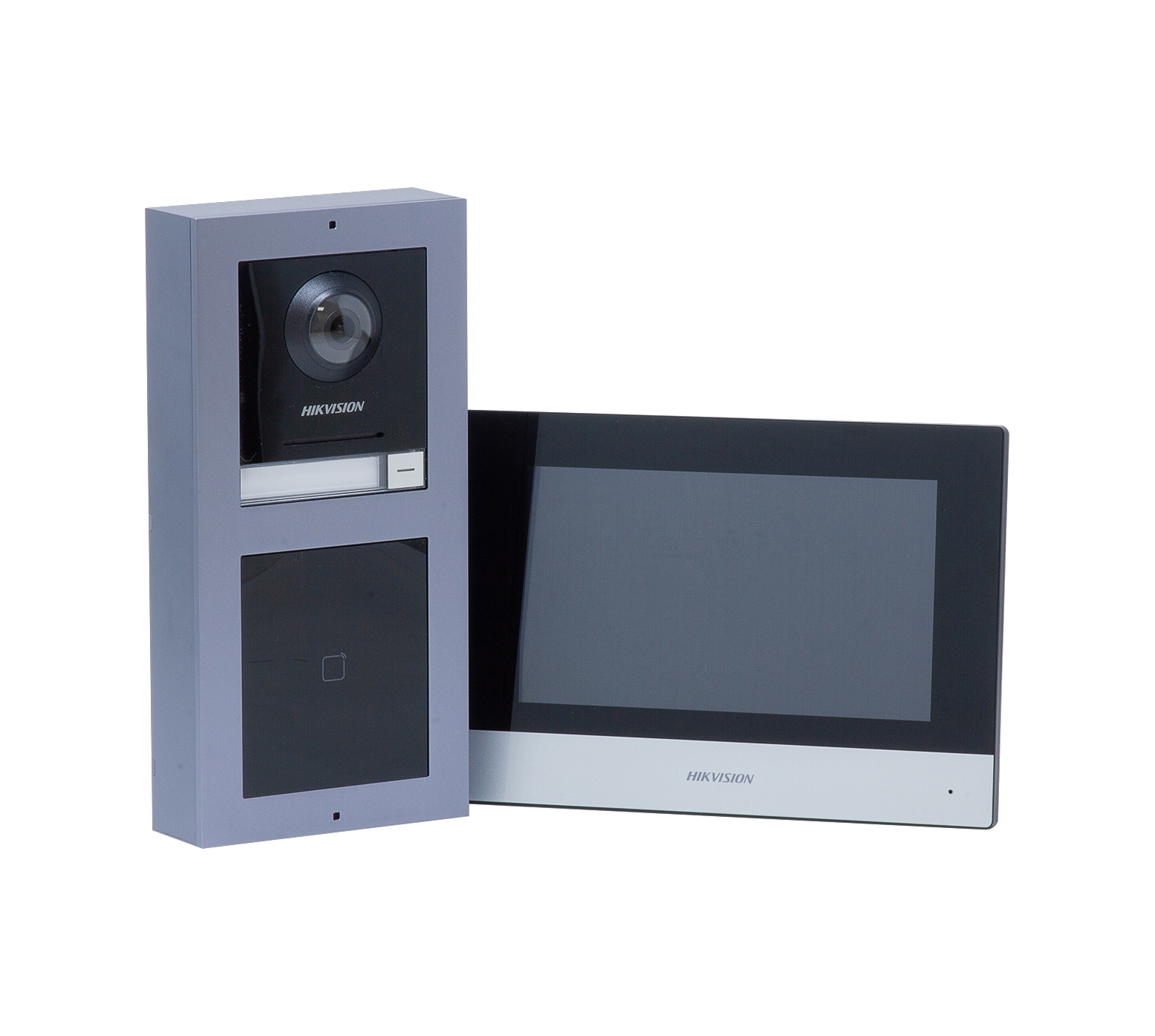

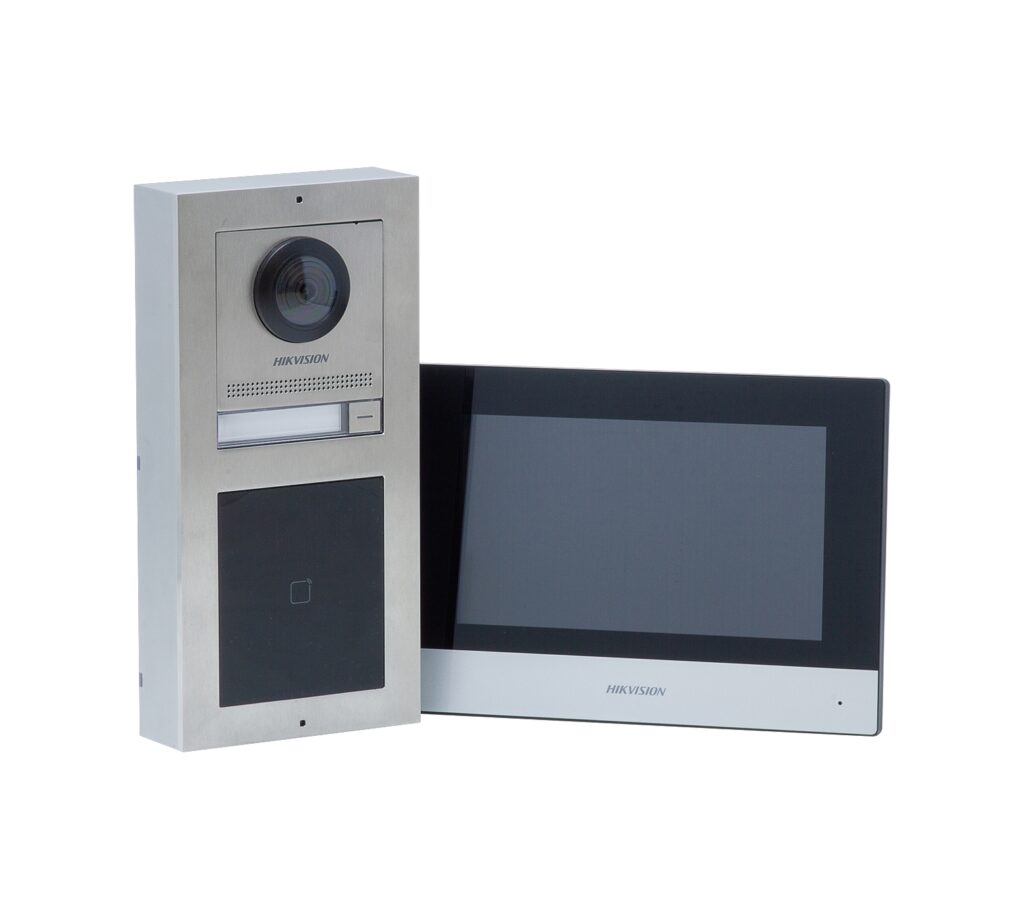

Hikvision 1 button 2 Wire video kit, touch and display and 7 inch monitor

ADDITIONAL INFORMATION

The unit is powered from the video/audio distribution module (KAD706) using 2 wire cable which at the same time carries the data making the system very simple to install, and easy to upgrade existing intercom systems.

You can answer calls & open the gate using the indoor 7 inch touch screen and remotely via the hikconnect mobile app or via PC using IVMS-4200.

• Two-pin wire for power supply and network access
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low illumination
• Tampering alarm
• Fisheye camera with IR supplement light
• Supports sub-modules' access (max. 8)
• Nametag customization

Additional modules such as touch and display, keypad and proximity can be integrated for a customisable intercom and additional features!

This Hikvision touch display has a built in Mifare card reader.

• Modular door station Touch & Display module, needs a mounting bracket
• 4 inch touch screen, IP65-IK8
• Dial number display, pin code & card unlock, contact list & advertisement display
• Stores and searches contact list
• Multiple languages

SPECIFICATION

VIDEO MODULE TECHNICAL SPECIFICATIONS

• Supplement Light IR supplement
• FOV Horizontal 180° Vertical: 96°
• Pixel Main stream : 1920 × 1080 Sub stream : 720 × 480
• Audio Quality Noise suppression and echo cancellation
• SUB Door station capacity 16
• Network Interface 1
• Exit button interface 2
• Lock control interface 2
• Door contact Input interface 2
• Power Interface 1
• Protective Level IP65
• Working Temperature -40° C to +55° C(-40° F to 131° F)
• Working Humidity 10% to 95%
• Dimensions 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
• Power Supply 24VDC Two wire power supply or 12VDC Independant power supply
• Application Environment Outdoor
• Power Consumption 4 W

TOUCH AND DISPLAY TECHNICAL SPECIFICATION

• ROM 32 MB
• RAM 128 MB
• Screen Size 4-inch
• Type IPS touch screen
• Resolution 480 x 480
• Brightness 500 cd/m2
• Audio Output Buzzer
• Wireless Network Only AP mode
• Card Reading Frequency 13.56 MHz
• Card Reading Distance 2 cm
• Card Type Mifare card
• TF Card Reserved
• DIP Switch 8 bits
• Cascade Interface 2
• Installation Surface OR flush
• Protective Level IP65, IK8
• Working Temperature -20 °C to 60 °C (-4 °F to 140 °F)
• Working Humidity 10% to 95% (no-condensing)
• Dimensions 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
• Power Supply 12 VDC, supplied by the main module
• Power Consumption≤ 4 W

SURFACE MOUNT BRACKET SPECIFICATION

• Dimensions
  • Cover: 219 × 107 × 4 mm(8.62" × 4.21\" ×0.16\")
  • For installation Frame 117 x 107 × 32.7 mm (4.61" x 4.21" x 1.29")

7 INCH MONITOR TECHNICAL SPECIFICATIONS

• ROM 32 MB
• RAM 128 MB
• CPU Embedded processor
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Compression Bitrate 64 Kps
• Audio Quality Noise suppression and echo cancellation
• Volume Adjustment Adjustable
• Event Capacity 200 captured pictures (with TF card); 200 alarm records - 2 MB RAM (without TF card) reserved for events
• Linked Network Camera Capacity 16
• Linked Indoor Extensions Capacity 5
• Notice Capacity 200
• Linked Door phone Capacity 17 IP door phones Max.
• Alarm Input 8-channel alarm inputs
• RS-485 1
• TF Card Max to 128 G, SD 2.0 or lower version
• Alarm Output 2 relays (30 V Max.)
• Two-Wire IP Interface 1
• Wired Network 10/100 Mbps self-adaptive through 2-wire interface
• Power Supply Method Two-wire
• Power Supply Powered by KAD704Y or KAD706Y series distributor
• Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity 10% to 90% (no-condensing)
• Wi-Fi Standard Wi-Fi 802.11 b/g/n
• Dimensions (W × H × D) 200 mm × 140 mm × 15.1 mm

KAD706 TECHNICAL SPECIFICATION

• Indicator 9
• Power Supply Method 24 VDC
• Working Temperature -10° C to +50° C(-14° F to 122° F)
• Working Humidity 10% to 90%
• Power Consumption CH1 to CH5＜6 W, CH6＜16 W

KAW60 TECHNICAL SPECIFICATION

• Power Supply 85 to 264 VAC
• Power Consumption 60 W
• Working Temperature -30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity 20% to 90%
• Output Power 24 VDC
• Dimension (W × H × D) 52.5 mm × 90 mm × 54.5 mm (2.07" × 3.54" × 2.15")
