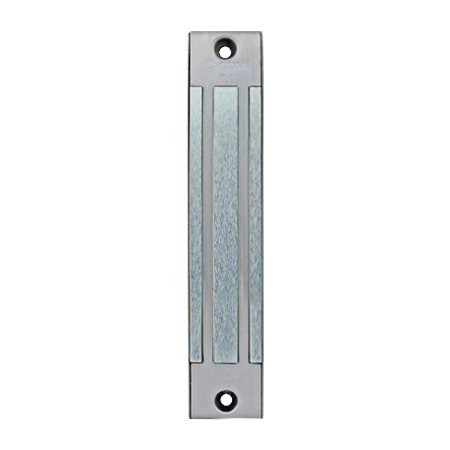

CDVI i500SR 500kg external surface monitored magnetic lock
Product Code: I500SR
The i500SR is a monitored surface maglock with a holding force of up to 500kg.
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
Related Products (1)
CDVI i400SR 400kg external surface monitored magnetic lock
Product
Code: I400SR
inc VAT
ADDITIONAL INFORMATION
The i500SR is part of the range of external electromagnetic locks from CDVI offering high performance flexible locking solutions in the most harsh environments.
Cased in high grade stainless steel, with a unique cover plate, all models are supplied with full fixing kits. A range of powder-coated steel brackets are available if required (ES brackets).
- 500kg holding force
- Monitored
- Stainless steel construction
- For use in harsh environments
- Brackets available (ES brackets)
SPECIFICATION
Technical:
- Holding force: 500 kg
- Monitoring: lock status - COM, NO, NC
- Voltage: 12/24Vdc
- Current: @12Vdc = 550mA, @24Vdc = 275mA
- Dimensions: 230 x 61 x 40mm
- IP54
This kit contains:
OPTIONAL ACCESSORIES
