Delay module for fail safe locks
Product Code: VHLD

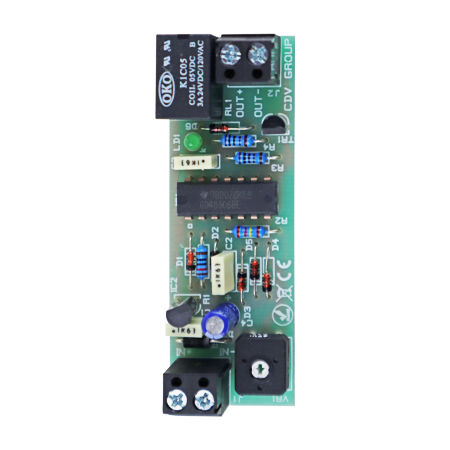

3-10 second delay module for any fail safe lock.
View more
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
ADDITIONAL INFORMATION
When power is removed the lock releases, once power is applied again the delay programmed is active before allowing the power back to the fail safe lock.
Can be operated through a simple push button without the need for additional relays or timers.
SPECIFICATION
TECHNICAL SPECIFICATION
- Minimum voltage : 10Vdc
- Maximum voltage : 15Vdc
- Current : 5A pass through current, 3A @ 24Vdc
- IP22 Rating
Dimensions
- Height 65mm
- Width 24mm
- Depth 16mm
