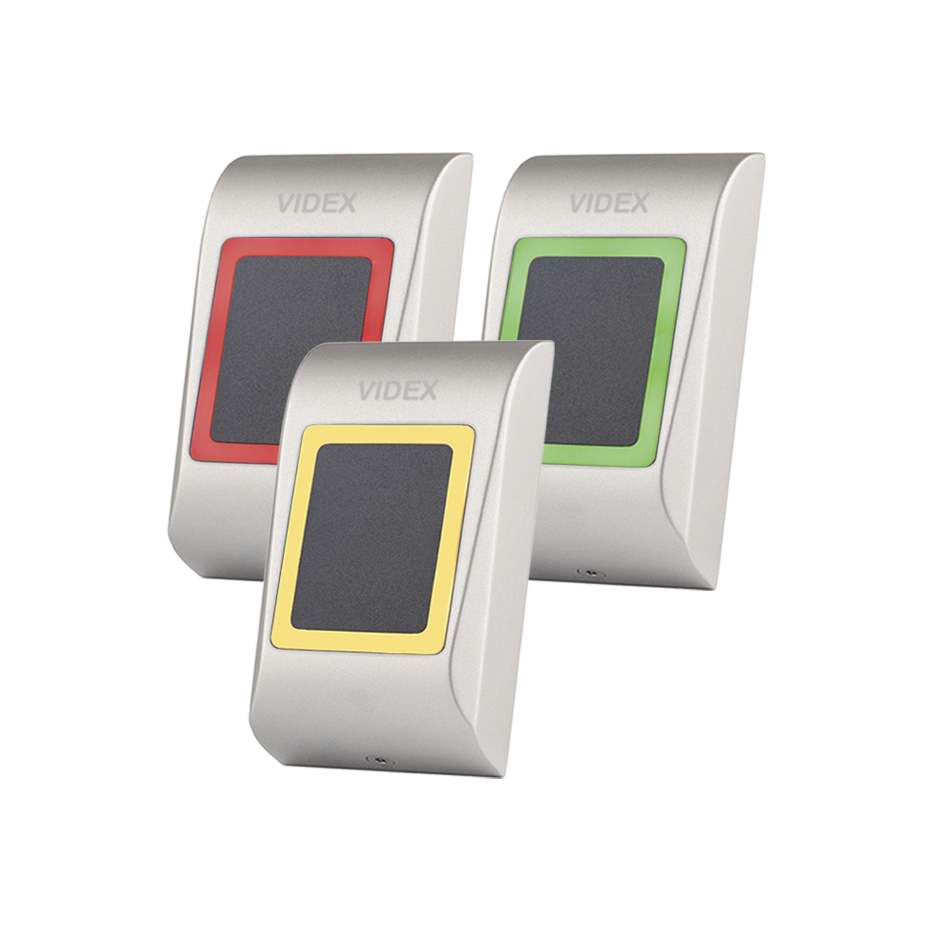

Videx MTPXS-MF-SA MiAccess surface mount silver proximity reader

ADDITIONAL INFORMATION

Includes a sounder and tri state status LED illumination to confirm, active, accept and denied. The reader is used on the MiAccess access control system which is an offline system enabling multiple readers to be used together without cabling in between.

The surface readers have resin potted electronics giving them protection against the elements and allowing them to be mounted externally, however they can be mounted internally if desired.

All readers can be programmed and configured directly using the PROA-MS or PROH-MS PC management software (available to download for free from https://software.videxservices.uk) using the micro-USB connection on the back of the reader. MiAccess fobs and cards are initally registered via the USB desktop reader (PROX-USB) connected to a laptop or PC and then the fob and card data along with reader configuration can be uploaded to the MiAccess reader.

Features

• IP65 rated moulded aluminium (in silver finish) for internal or external use
• Mifare reader with sector read/write and support for Mifare classic, 1K & 4K card types
• Read range of up to 6cm with an operating frequency of 13.56MHz
• Programming and configuration using PC software
• Firmware upgrades supported via the micro-USB connection

SPECIFICATION

Technical Details

• Operating Voltage: 12Vdc power input
• Current Consumption: 150mA (max.) during operation
• Data Connectivity: micro-USB port for connection to a PC
• Outputs: 1x built-in relay (2A @ 24Vac/dc) programmable from 1-255 seconds or 0 seconds for ON/OFF toggle mode, 1x RS485 bus connection for remote ‘touch to exit’ button and relay unit (RTTS surface or DINRTT flush)
• Inputs: push button
• Tamper Protection: Yes
• Status Indication: Tri-colour halo LED (amber, green and red) and buzzer;
• IP Rating: IP65 (for surface readers only)
• Working Temperature: -20°C to +50°C

Dimensions (mm):  51 (W) x 92 (H) x 25 (D)
