PROX USB
PT 932x932 PROX USB

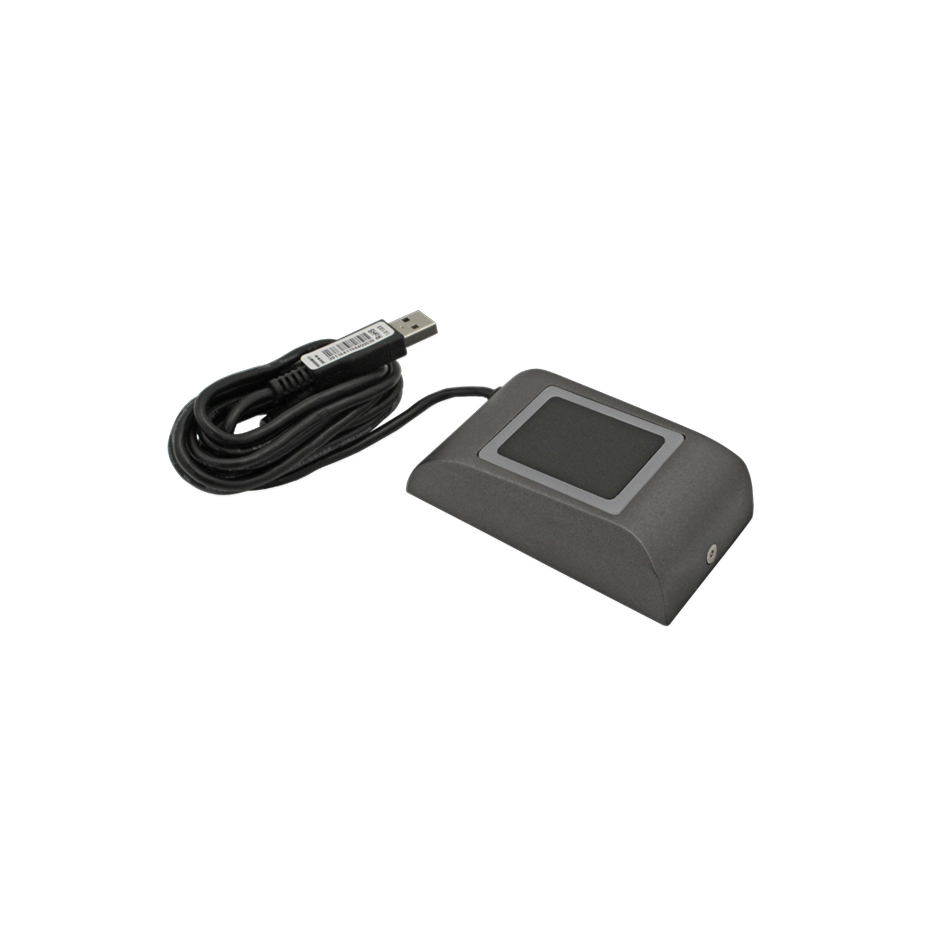

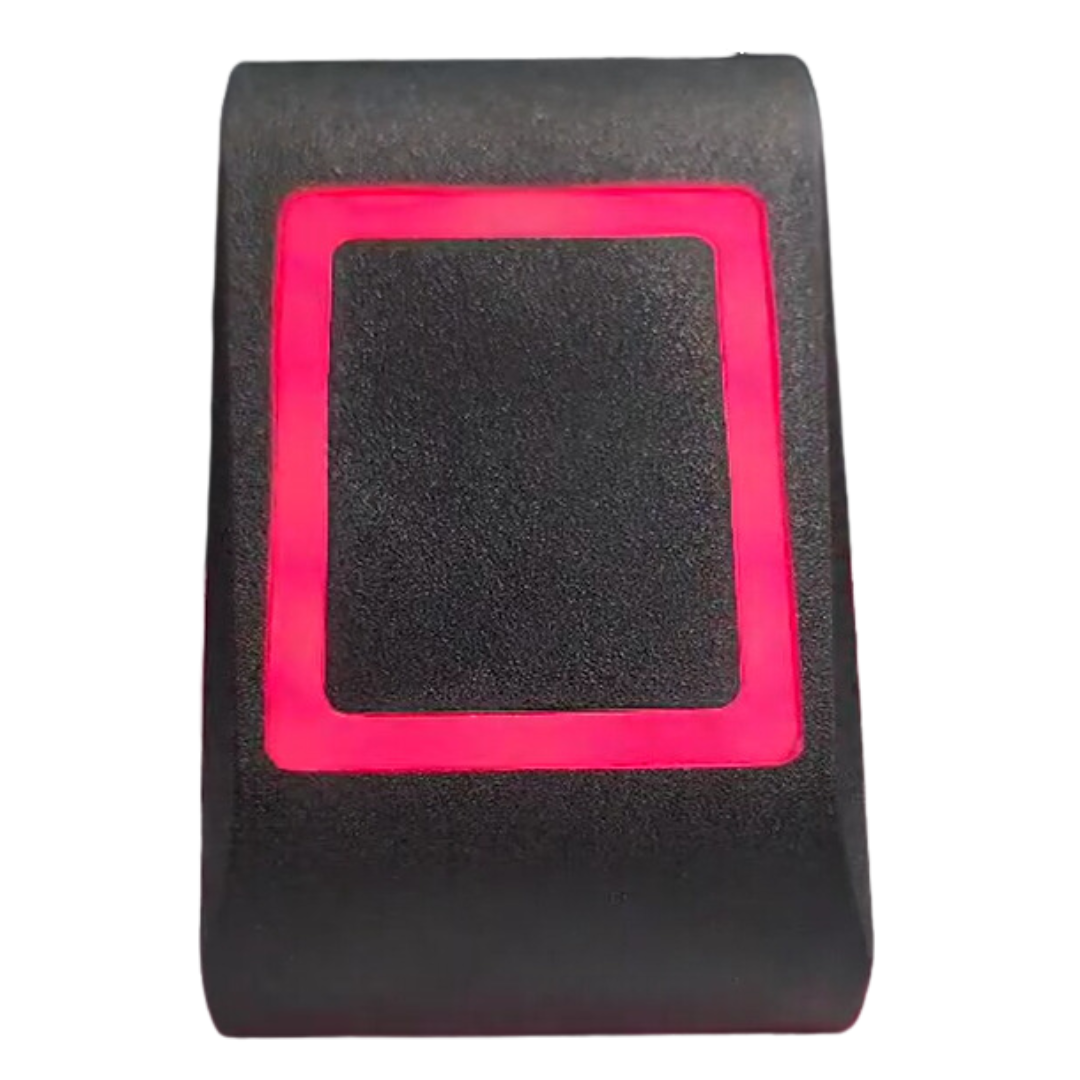

Videx PROX-USB Desktop reader

Product Code: PROX-USB

The Portal plus USB desktop proximity enrolment reader is compatible with EM, Mifare & HID fobs and cards.

The desktop proximity readers connect to a PC running the PROS CS Portal Plus GSMSK software and allow the enrolment of fobs or cards rather than programming through the proximity reader.

Indoor use only Black ABS Housing

View more
inc VAT

ADDITIONAL INFORMATION

The latest firmware version can be uploaded to the Prox USB using XPR toolbox software from http://software.xprgroup.com

SPECIFICATION

TECHNICAL SPECIFICATION

Technology: RFID 125KHZ 13.5MHz

Supported credentials: EM4100 or HID Prox compatible, Mifare

Driver: Not required

Firmware upgrade: Yes

Power Supply: 5 VDC USB 150mA

Sound indicator: Internal Buzzer

LED Indicator: Red, Green

Dimensions : 51mm x 92mm x 27mm

Operating temperature: 5°C to 40°C

MANUALS

Sorry, there are no manuals available for this product.

This kit contains:

OPTIONAL ACCESSORIES

Videx PBX2 125kHz proximity card
Videx PBX2 125kHz proximity card
inc. VAT
Videx PBX-1E ABS proximity fob EM format 125kHz
Videx PBX-1E ABS proximity fob EM format 125kHz
inc. VAT
Videx PBXBK-1E-MS50 Black Mifare fob
Videx PBXBK-1E-MS50 Black Mifare fob
inc. VAT
Videx PBX-2-MS70 Mifare master proximity card
Videx PBX-2-MS70 Mifare master proximity card
inc. VAT
Videx PBX-2-MS50 Mifare proximity card
Videx PBX-2-MS50 Mifare proximity card
inc. VAT
