Videx gsm4kcr 1s bl 4ge one station surface 4g gsm intercom with backlit keypad gun metal grey finish p4541 8346 medium

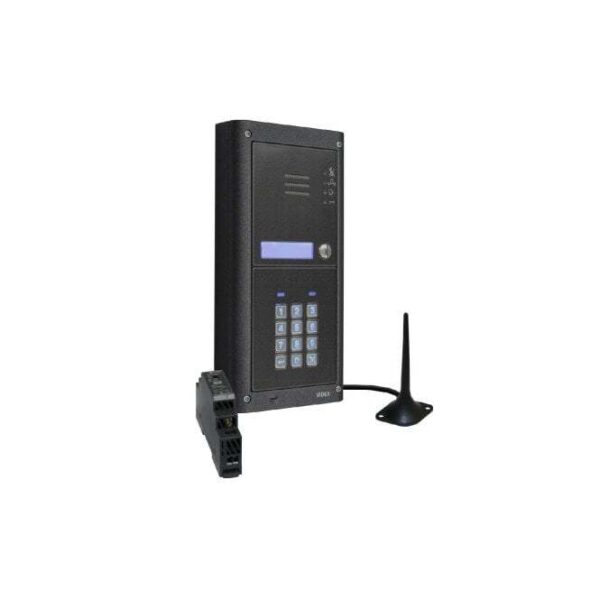

Videx GSM4KCR-1S/BL/4GE one station surface 4G GSM intercom with backlit keypad gun metal grey finish

Product Code: GSM4KCR-1S/4GE/BL

This is a simple to install 4G GSM 1 button intercom that is suitable for one residential properties or a small office. The intercom has 1 call buttons on one entrance panel.

Using mobile phone technology, a call will be made to the occupants phone, removing the need to be in the house to answer the door or gate.

It is possible to open your gate while you are not at home.

This intercom allows 2 way communication between occupants and the caller.

Available with or without a keypad.

View more
inc VAT

Related Products (1)

inc VAT

ADDITIONAL INFORMATION

4000 Series GSM Kits

With GSM comes freedom. Answer calls from your door or gate from any telephone number including your mobile so you never have to miss that important caller. GSM audio kits available from single call button applications up to 12 button kits (surface or flush), however is expandable up to 50 call buttons, all with the facility to divert to additional numbers if the first is busy or unanswered (up to 3 divert numbers per button).

Programming is carried out via SMS messaging or PC software using a micro USB connection. Including an exit button input, auxiliary inputs and outputs and a dry contact relay, the Videx GSM PRO can be powered using 12-24V ac/dc.

Additional features include integrated proximity access (for up to 1000 users) and call progress announcement both verbally and with four call progress LED’s.

An event log (up to 4000 stored events) is maintained within the entry panel and can be downloaded via the USB port or RS485 bus connection using the GSMSK PC software which also includes many features to simplify the installation and programming process.

Features

  • Up to 50 call buttons
  • 4 telephone numbers per call button (1 primary and 3 diverts)
  • 1000 dial to open numbers
  • 1000 user integrated proximity access
  • Voice annunciation
  • 4 Call progress LED's
  • Programming by SMS or PC software
  • Push to exit input
  • 2 auxiliary inputs
  • 2 auxiliary outputs
  • Dry contact relay
  • Micro USB connection
  • RS485 bus connection

Intercom for one entrance: simple intercom for one user

Two way speech

Backlit name plate

Sim Card: sim card is required for set up for call through to the occupants phone.

Calls up to to 5 devices:if the phone call isn't answered, the next number is called.

Easy programming: easily done by SMS or dialing into the panel using a telephone with a keypad.

Surface Mounted: intercom with a mirror stainless steel facia and gun metal surround.

Push to exit input (codelock version): the popular 4903 keypad with 3 relays, 2x exit button inputs and programmable (Through the keypad) with up to three 4-8 digit codes.

Multiple phone numbers: the intercom allows the calling of two telephone numbers per button.

VidexApp.jpg#asset:51500

The new app simplifies programming and usability for both end users and installers. Available for iOS and Android devices, the app allows you to program the GSM intercom system by automatically creating the SMS messages.

The app is a great addition to the Videx GSM product range, enhancing the features while also providing a convenient way to manage and operate the system.

Features include the ability to activate the door or gate either for the programmed time or to latch and unlatch it. This can be done via text message or dialling using the dial to open feature. You can also add and modify numbers called, the dial to open numbers, access codes including temporary access codes for one-time visitors, as well as proximity tags that are used to open the gate or door.

Up to 10 GSM intercoms can be stored in the app. Settings such as master code, telephone number, call button telephone numbers and free access settings are all stored to save the user time while using the app. An advanced version of the app will also be available soon with even more features for the installer or managing agent of the system.

The app is not restricted to the GSMPRO version of the Videx GSM intercom systems and can also be used with the Digital GSM, vandal resistant GSM’s, multiple entrance 2270 interface and the GSM lite.

Users can also set up free access time periods where the gate or door can be held open for visitors. The ability to decode received messages from the intercom panel is also included and some of these messages can also be imported and saved in the app for future use. For example, if the intercom call button has already been programmed it’s possible to receive the telephone numbers for the call button and import them into the app.

Users will be able to download the app directly from Google’s ‘Play store’ and Apple’s ‘App store’ free of change. The app can be used with all current and older model GSM intercoms.

Download from Apple Store

Download from Google Play

SPECIFICATION

  • Dimensions :400.40 x 135 x 44 (mm)
  • Speaker module:V-4810-1/B
  • Keypad module:V-4903
  • Power Input/Output:230Vac / 12Vdc 2A
  • Egress input:1
  • Programming:SMS/USB
  • Auxiliary Input:2
  • USB Type:Micro
  • Lock relays:2

This kit contains:

  • 1 x 4810-1/4G/BL

    1 Button speaker & prox GSM module Gun metal grey

  • 1 x 4903/M

    Back lit gsm keypad 4000 series with RS485 Matt finish

  • 1 x 4882

    Videx 2 Module 1 Row Grey Surface Box
