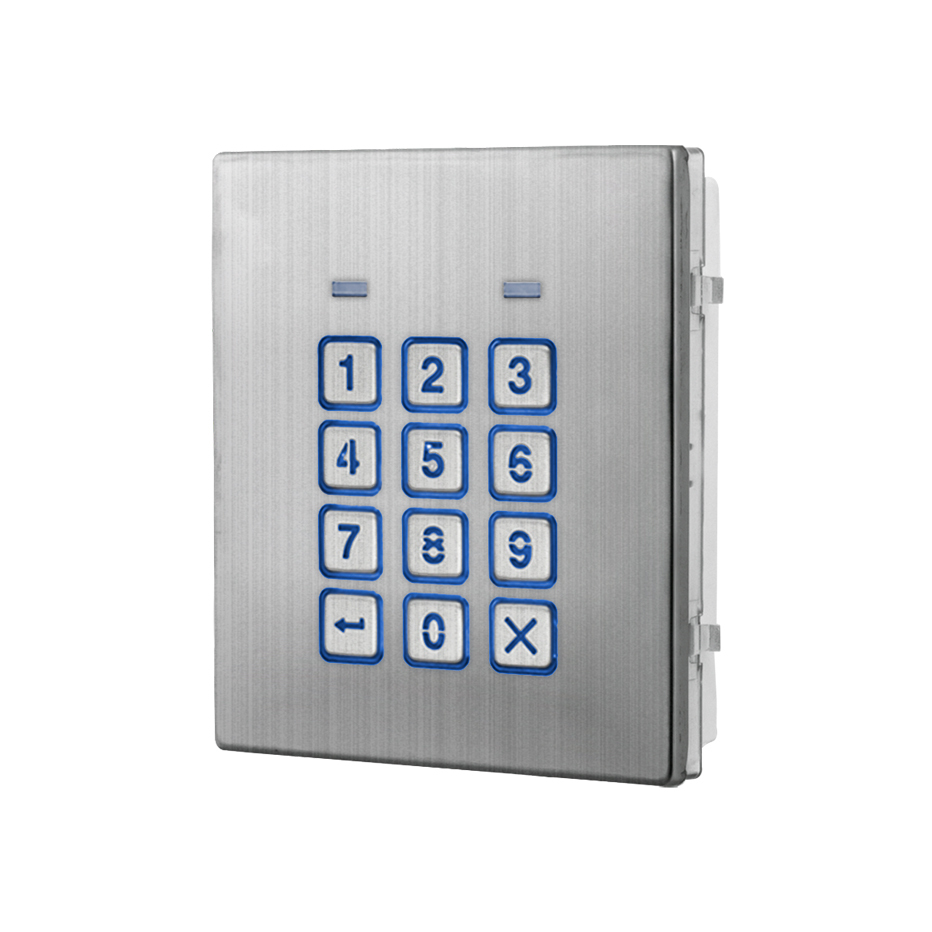

Videx 4903/BL backlit GSM keypad module, 500 codes & 2 relays - gun metal grey finish

ADDITIONAL INFORMATION

4000 Series Codelock Modules

There are three optional codelocks available: the 4901 codelock module which is completely standalone, the 4902 and 4903 that can both operate as a standalone codelock or be networked via an RS485 bus for GSM audio intercoms.

The 4903 can be networked with the GSMPRO (4810) audio module (as well as other 4903 keypads and 4850R proximity readers).

The 4903 has 2 relays and allows for 2 codes (1 code per relay) when in standalone mode, however when connected via the RS485 bus to the GSMPRO audio module access codes can be expanded up to 400 permanent codes or 32 temporary codes that can be assigned to one or both of the relays.

The keypads have dry relay contacts (CO, NO and NC) where each output can be programmed from 1-99 seconds (for the 4901 and 4903) or set to 00 for latching. They also feature two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Codes can be between 4-8 digits in length and each keypad module incorporates blue backlit key buttons.

Each codelock is available in a mirror stainless steel finish, a matt 316 grade stainless steel finish (suffix /M) or a gun metal grey finish (suffix /BL).

Features

• Blue backlit button codelock modules

• Available in mirror stainless steel finish, a matt 316 grade stainless steel finish or gun metal grey finish

• Modules are compatible with both surface & flush 4000 series back boxes

• Can operate as standalone keypads

• 4902 and 4903 keypads are also networkable via RS485

• User friendly programming menu with audible reassurance tones

• 4-8 digit programmable access codes

• 2 programmable relays (4902 and 4903)

SPECIFICATION

Technical:

• Operational modes: As standalone keypad or networked with 4810 (GSMPRO), other 4903’s and/or 4850R proximity readers

• Number of codes (standalone): 2 (1 code per relay)

• Number of codes (networked via RS485): up to 400 permanent, up to 32 temporary codes (can be assigned to 1 or both relays)

• Number of relays: 2x CO, NO & NC dry contacts (24Vac/dc @ 3A max)

• PTE Inputs: 2x switched 0V inputs for each relay

• Code length: 4-8 digits

• Power: 12-24Vac or dc (70mA max)

• Programmable relay times: 1 to 99 seconds or 00 for latching

• RS485 bus connection: Yes (A and B)

Variants:

• 4901 – 3 code, 3 relay, standalone codelock (stainless steel finish)

• 4902 – 1000 code, 2 relay, standalone or networkable (RS485) codelock (stainless steel finish)

• 4903 – 2 code, 2 relay, standalone or networkable (RS485) codelock for the GSMPRO intercom (stainless steel finish)
