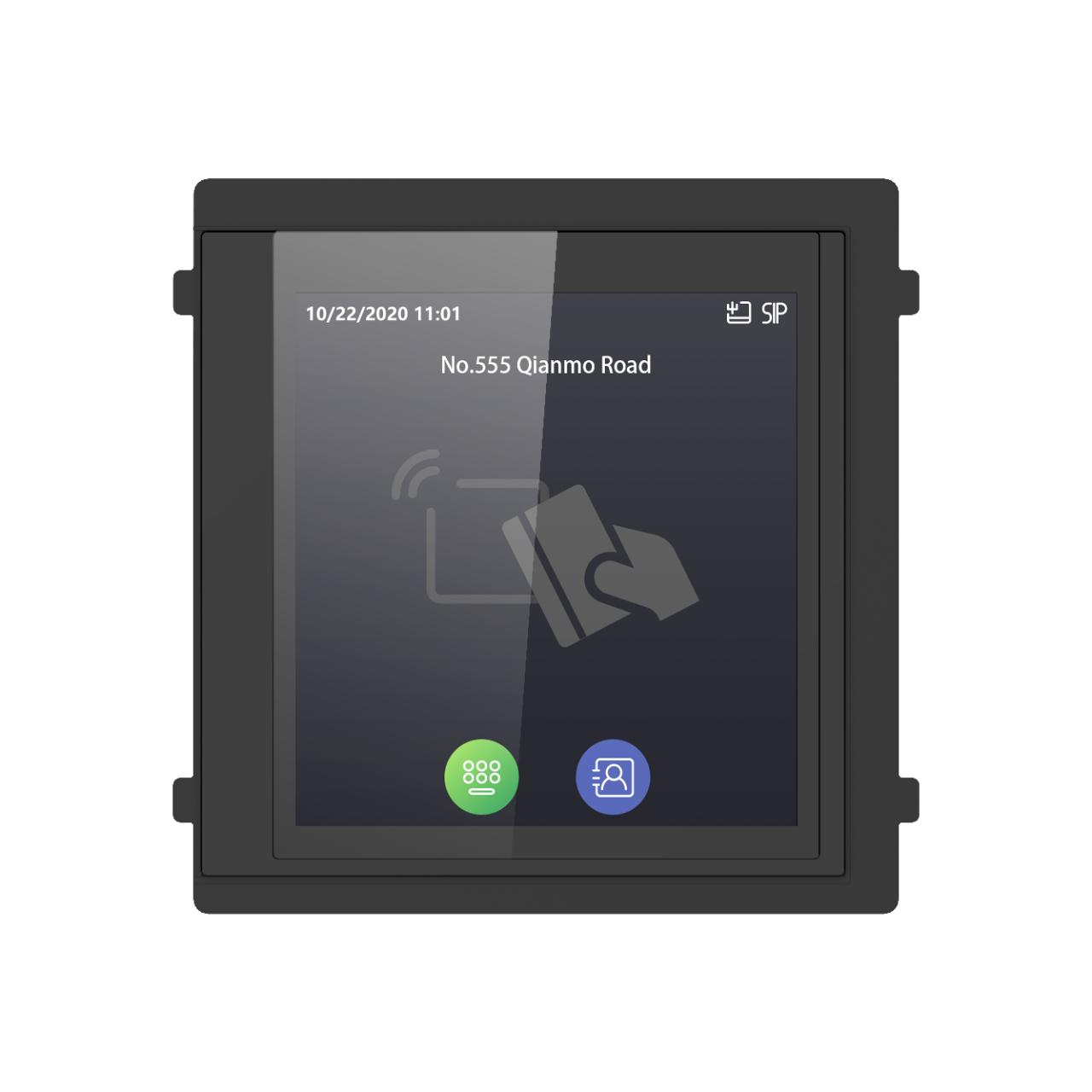

Hikvision Touch and display module
Product Code: DS-KD-TDM
This Hikvision touch display has a built in Mifare card reader.
Enabling content display on the screen, must be combined with the DS-KD8003-IME1/2 door station.
View more
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
ADDITIONAL INFORMATION
- Modular door station Touch & Display module, needs a mounting bracket
- 4 inch touch screen, IP65-IK8
- Dial number display, pin code & card unlock, contact list & advertisement display
- Stores and searches contact list
- Multiple languages
SPECIFICATION
TECHNICAL SPECIFICATION
- ROM 32 MB
- RAM 128 MB
- Screen Size 4-inch
- Type IPS touch screen
- Resolution 480 x 480
- Brightness 500 cd/m2
- Audio Output Buzzer
- Wireless Network Only AP mode
- Card Reading Frequency 13.56 MHz
- Card Reading Distance 2 cm
- Card Type Mifare card
- TF Card Reserved
- DIP Switch 8 bits
- Cascade Interface 2
- Installation Surface OR flush
- Protective Level IP65, IK8
- Working Temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity 10% to 95% (no-condensing)
- Dimensions 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power Supply 12 VDC, supplied by the main module
- Power Consumption≤ 4 W
This kit contains:
OPTIONAL ACCESSORIES
