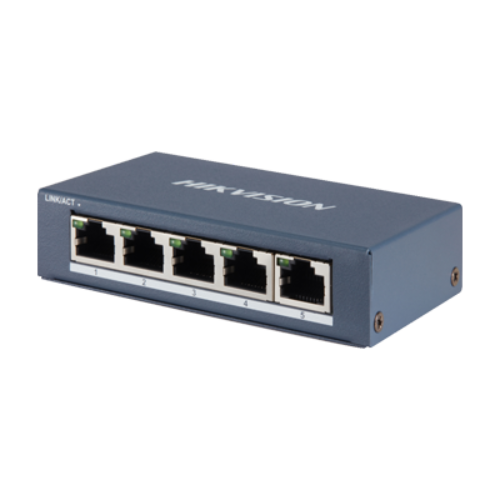

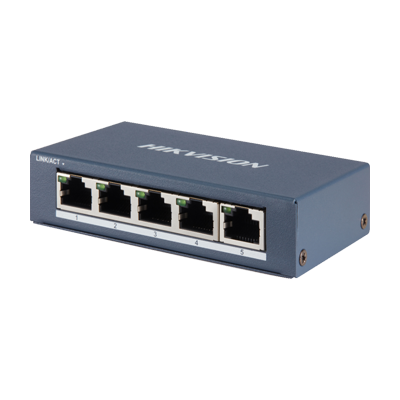

Hikvision 5 Port Gigabit Unmanaged Switch

ADDITIONAL INFORMATION

• 5 x 1000M Ethernet ports.

• Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.

• 1000M network access.

• Wire-speed forwarding and non-blocking design.

• Store-and-forward switching.

• Solid high-strength metal shell.

• Fan-free design with high reliability.

SPECIFICATION

TECHNICAL SPECIFICATION

• PORT NUMBERS - 5 x 1000M Ethernet port
• PORT TYPE - RJ45 port, Full duplex, MDI/MDI-X adaptive
• PROCESSING TYPE - Store-and-forward switching
• MAC- address table 2 K
• EXCHANGE CAPACITY - 10 Gbps
• PACKET FORWARDING RATE - 7.44 Mpps
• INTERNET CACHE - 1 Mbits
• WEIGHT - 0.15 kg (0.3 lb)
• DIMENSIONS (L × H × D) 103 mm × 25.6 mm × 61.1 mm
• OPERATING TEMP - 0˚C to 40˚C (32˚F to 104˚F)
• STORAGE TEMP - –40˚C to 85˚C (–40˚F to 185˚F)
• POWER SUPPLY - 5 VDC，1 A
