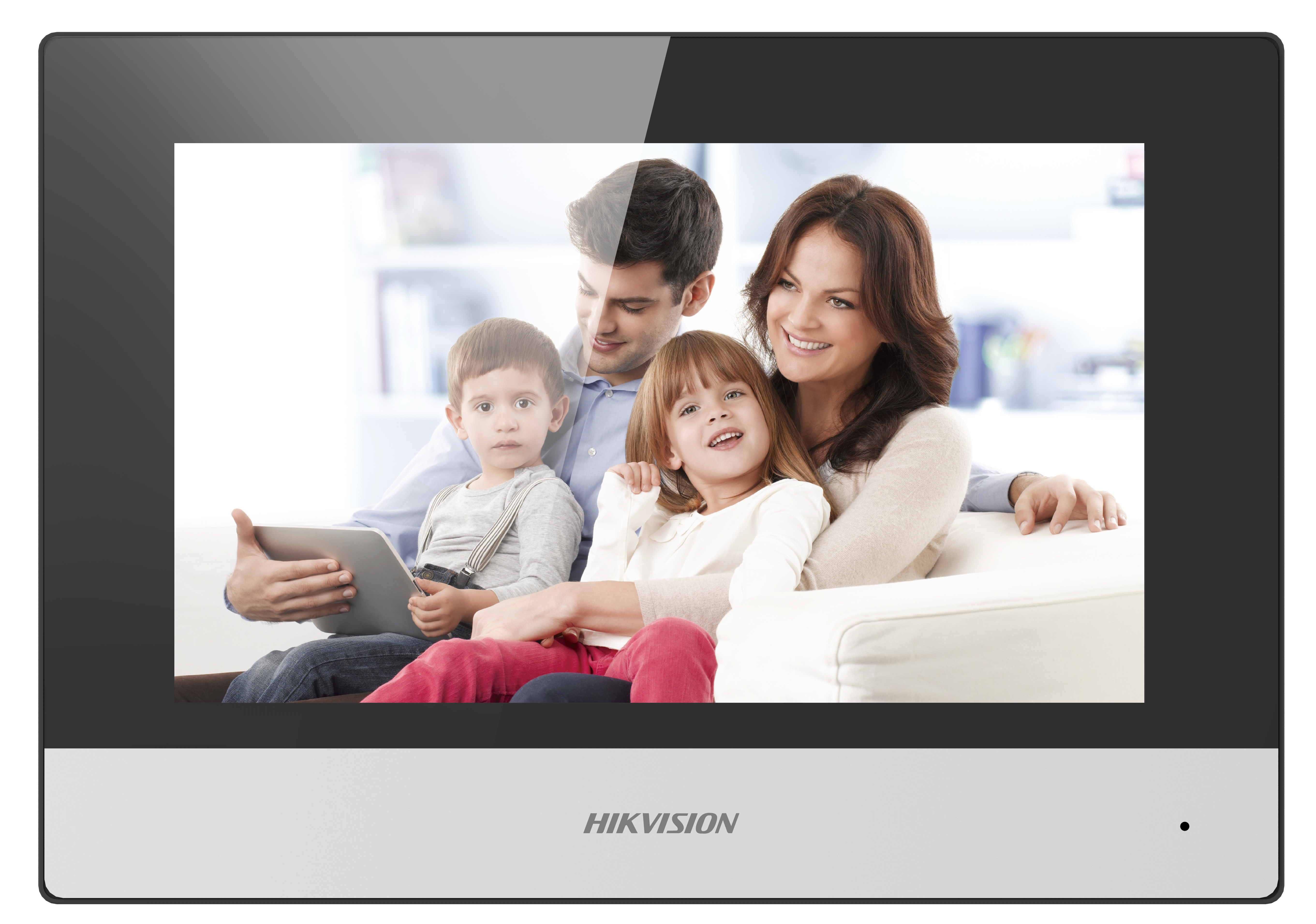

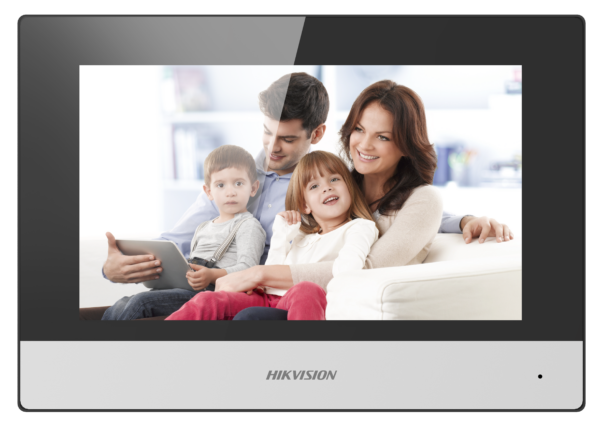

Hikvision 7 inch touch screen LCD IP Monitor

ADDITIONAL INFORMATION

The screen supports PoE, 12VDC power, TF card slot for up to 32GB storage and up to 8 external alarm inputs (from a PIR or similar).

• New UI V2.0: User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras

SPECIFICATION

TECHNICAL SPECIFICATIONS

• ROM -32MB
• RAM -128 MB
• CPU -Embedded processor
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Compression Bitrate 64 Kbps
• Audio Quality Noise suppression and echo cancellation
• Volume Adjustment enabled
• Event Capacity 200
• Notice Capacity 16
• Linked Indoor Extensions Capacity 5
• Alarm Input 8-ch alarm inputs
• Network Interface 1 RJ-45 10/100 Mbps self-adaptive
• RS-485 1
• TF Card Max to 32 G, SD 2.0 or lower version
• Alarm Output 2
• Power Interface 1
• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity 10% to 90%
• Dimensions 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Application Environment Indoor use only
• Power Consumption ≤ 6W
