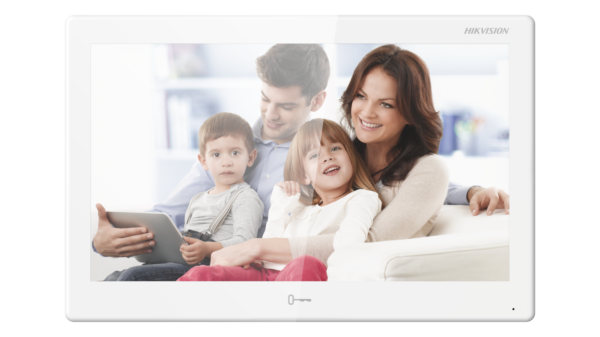

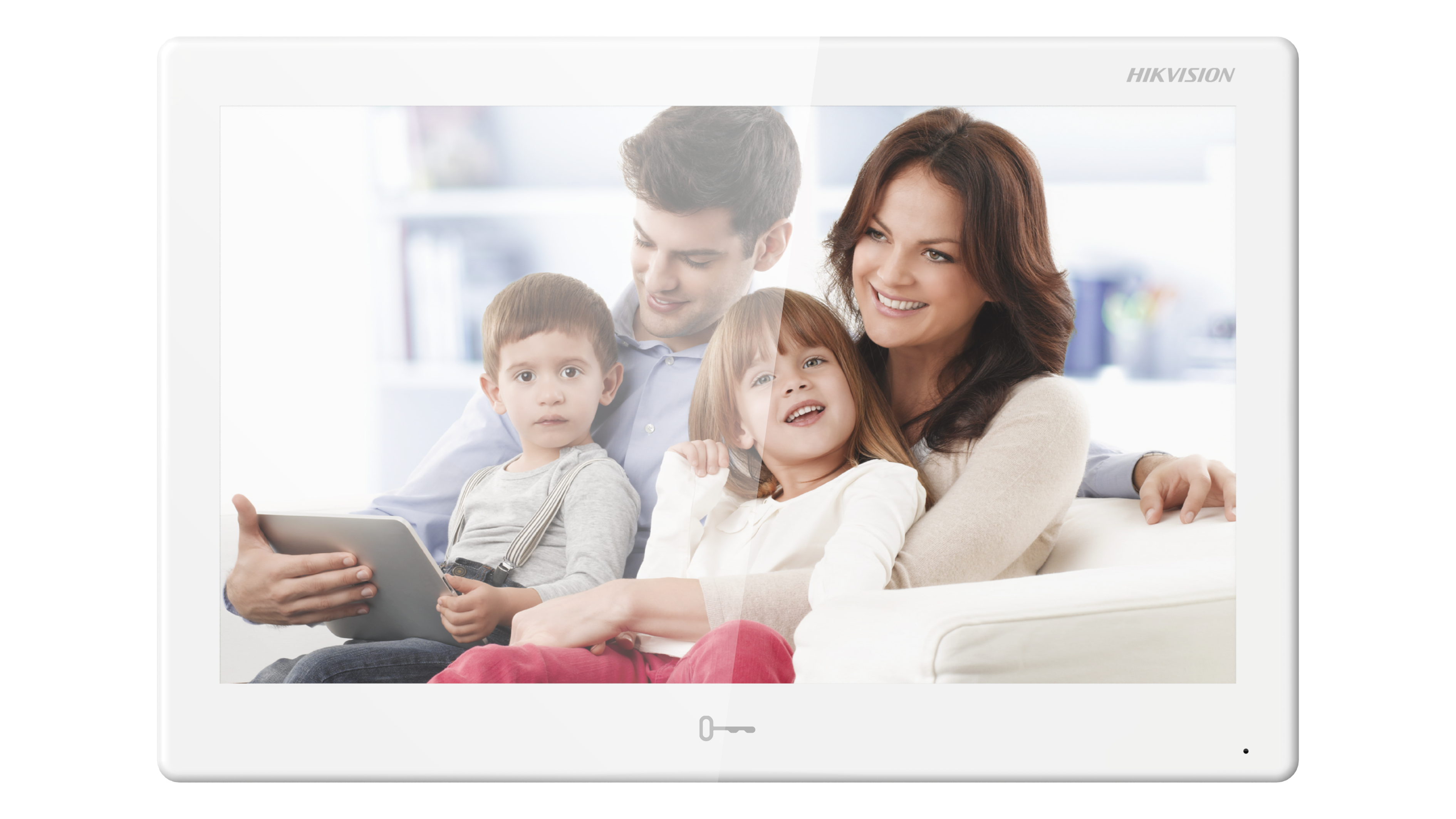

Hikvision 10.1-inch Touch screen LCD Monitor

ADDITIONAL INFORMATION

Along with the video intercom, the monitor also serves as a home or office management center featuring visualized interfaces. With the built-in Hik-Connect App, users will enjoy the simple control and flexible linkage among various Hikvision devices.

What’s more, it features easy integration with third-party Android applications, adding new levels of convenience for users.

With the embedded Android system, the indoor station features easy integration with third-party applications. Beyond Hik-Connect, users can choose to install up to two more Android Apps on the indoor station, and enjoy convenient operation with visualized interfaces.

• Camera live view and playback
• Locking/unlocking doors remotely
• Arming/disarming the alarm system
• Checking monitoring status
• Receiving intercom calls

SPECIFICATION

TECHNICAL SPECIFICATIONS

• ROM -8 GB Emmc
• RAM -2 GB
• CPU -Embedded processor
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Compression Bitrate 64 Kbps
• Audio Quality Noise suppression and echo cancellation
• Volume Adjustment enabled
• Event Capacity 200
• Notice Capacity 16
• Linked Indoor Extensions Capacity 15
• Alarm Input 8
• Network Interface 1 RJ-45 10/100 Mbps self-adaptive
• RS-485 1
• TF Card Reserved
• Alarm Output 1 relay output, 1 alarm output
• Power Interface 1
• Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity 10% to 90%
• Dimensions 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
• Power Supply IEEE802.3af, standard PoE 12 VDC, 1 A
• Application Environment Indoor use only
• Power Consumption ≤ 8 W
