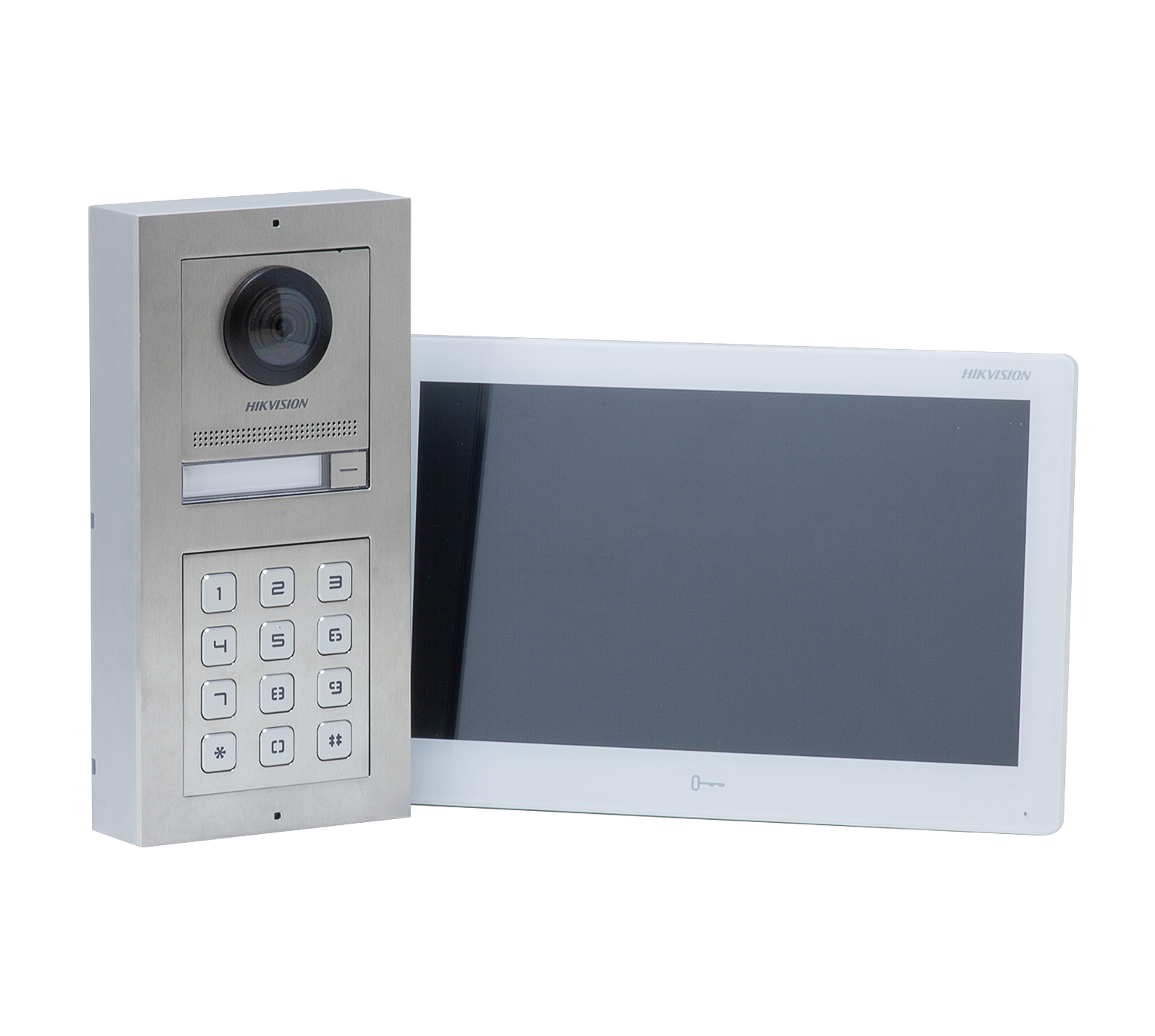

Hikvision 1 button IP video kit, keypad and 10 inch monitor stainless steel

ADDITIONAL INFORMATION

The IP video module is powered by the PoE switch module or 12VDC making it very simple to install, connecting to the indoor tablet using IP protocol over the local network

You can answer calls & open the gate using the indoor 10 inch touch screen and remotely via the hikconnect mobile app or via PC using IVMS-4200.

• Modular door station Main unit, needs mounting bracket
• 2MP HD Camera, Fish eye, IR Supplement
• 1 Call physical Button, 2 lock relays, 4-ch alarm input
• Video intercom to indoor station and master station
• WEB Configuration
• IP65, 12 VDC or standard PoE
• Power output for electronic lock, max to 12 V, 500 mA
• Input pin code to open door and call indoor station
• Backlight keypad

SPECIFICATION

VIDEO MODULE TECHNICAL SPECIFICATIONS

• ROM 32 MB
• RAM 256 MB
• CPU Embedded Processor

• Supplement Light IR supplement
• FOV Horizontal 146° Vertical: 82°
• Resolution 2MP
• Audio Quality Noise suppression and echo cancellation
• Audio Output Built in loudspeaker
• Audio Input Built in omnidirectional microphone
• SUB Door station capacity 16
• User capacity 2000
• Card capacity 6000
• Network Interface 1 RJ45
• Exit button interface 2 (2 for lock control)
• Door contact Input interface 2
• RS-485 1 (1 for Jikvision cub module communication)
• Power Interface 12 VDC Power output
• Protective Level IP65
• Working Temperature -40° C to +60° C(-40° F to 140° F)
• Working Humidity 10% to 95%
• Dimensions 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
• Power Supply 24VDC Two wire power supply or 12VDC Independant power supply
• Application Environment Outdoor
• Power Consumption 5 W

KEYPAD TECHNICAL SPECIFICATION

• Operating System Embedded Linux operation system
• CPU Embedded MCU Processor
• RS-485 1
• Power Interface 1
• Buttons 12
• Installation Flush mounting, surface mounting
• Protective Level IP65, IK7

• Working Temperature -40° C to +55° C(-40° F to 131° F)
• Working Humidity1 0% to 95%
• Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
• Application Environment Outdoor
• Power Consumption 1 W

SURFACE MOUNT BRACKET SPECIFICATION

• Dimensions Cover: 219 × 107 × 4 mm(8.62" × 4.21\" ×0.16\")

  Installation Frame: 117 × 107 × 32.7mm (8.62 × 4.21\" ×1.29\")

10 INCH MONITOR TECHNICAL SPECIFICATIONS
