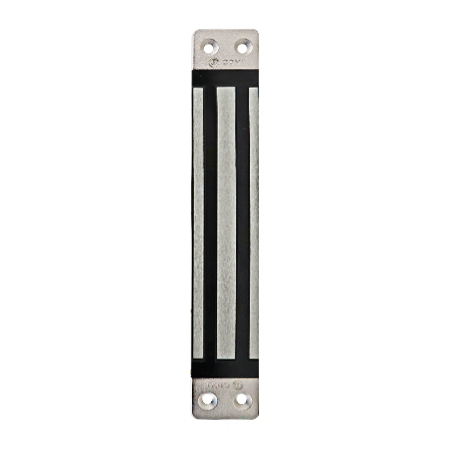

CDVI V3ER flush internal 300kg magnetic lock, monitored
Product Code: V3ER
The internal range of mortice magnets from CDVI offers high performance in many different environments.
View more
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
Related Products (1)
CDVI V4ER flush internal 400kg magnetic lock, monitored
Product
Code: V4ER
inc VAT
ADDITIONAL INFORMATION
The V3ER is a popular mortice magnetic lock with a holding force of 300kg - it is used within the BO-Series of profiled housings and transoms.
Thanks to its multi-fix features and its slimmer profile, it is ideal for many applications including installation at point of door manufacture.
The unit is 12/24Vdc selectable, and includes lock status monitoring as a standard.
- Up to 300kg holding force
- High performance
- Monitored
- No moving parts
SPECIFICATION
Technical:
- Holding force: 300kg
- Monitoring: lock status - COM, NO, NC
- Voltage: 12/24Vdc
- Current: @12Vdc = 550 mA, @24Vdc = 275 mA
- Dimensions: 228 x 39 x 27mm
- IP42
