  • Videx WS4 mifare proximity reader
Compare selected products
MTPXBK RS MF

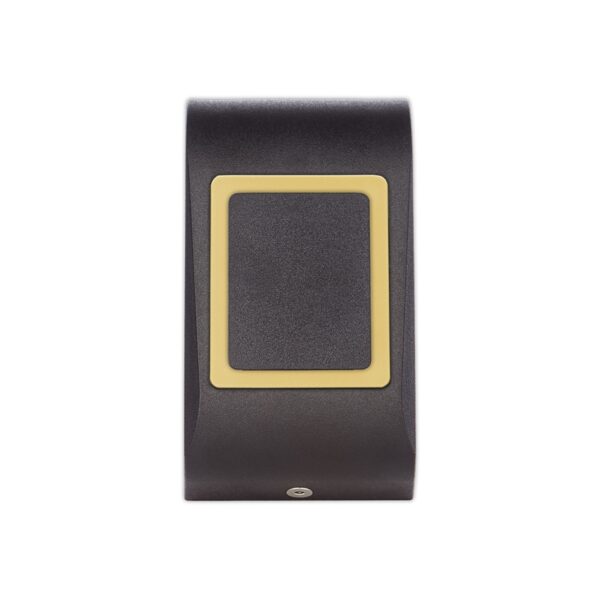

Videx WS4 mifare proximity reader

Product Code: MTPXBK-RS-MF

Two WS4 web access readers are available which are manufactured in a surface mount IP65 rated, impact resistant black ABS plastic housing.

MTPXBK-RS-MF reader (a compact 13.56Mhz Mifare proximity reader).

MTPADPBK-RS-MF reader (combined keypad and Mifare proximity reader offering double security via an access code and via Mifare fob/card)


These readers will operate with Mifare Classic, Ultralight and Desfire compatible fobs and cards that operate at 13.56MHz frequency.

View more
inc VAT

Related Products (3)

Videx WS4 combined keypad and mifare proximity reader

Videx WS4 combined keypad and mifare proximity reader

Product Code: MTPADPBK-RS-MF
inc VAT
View More

ADDITIONAL INFORMATION

Features :

  • Mifare proximity reader
  • Readers with RS485 bus for easy connection to WS4 controller
  • Readers compatible with Mifare classic, Desfire & Ultralight fobs/cards (13.56MHz)
  • Touch sensitive exit button
  • Audible and visual LED status indication
  • Low current consumption readers and exit button
  • Compatible with WS4 series cabinets

SPECIFICATION

Technical specification:

  • Material & colour: Surface ABS housing, black
  • IP rating: IP65
  • Communication & connections: RS485 bus connections to WS4 controller
  • Proximity reading type: Mifare Classic, Ultralight & Desfire 13.56Mhz
  • Reading distance: up to 6cm
  • Resin potted electronics: Yes
  • Operating voltage: 9 – 14Vdc
  • Status LED’s: Halo status LED indication (red, green and orange)
  • Internal sounder: Yes
  • Current rating: 130mA max.
  • Working temperature: -20°C to +50°C
  • Dimensions (mm): 90 (L) x 51 (W) x 27 (D)
