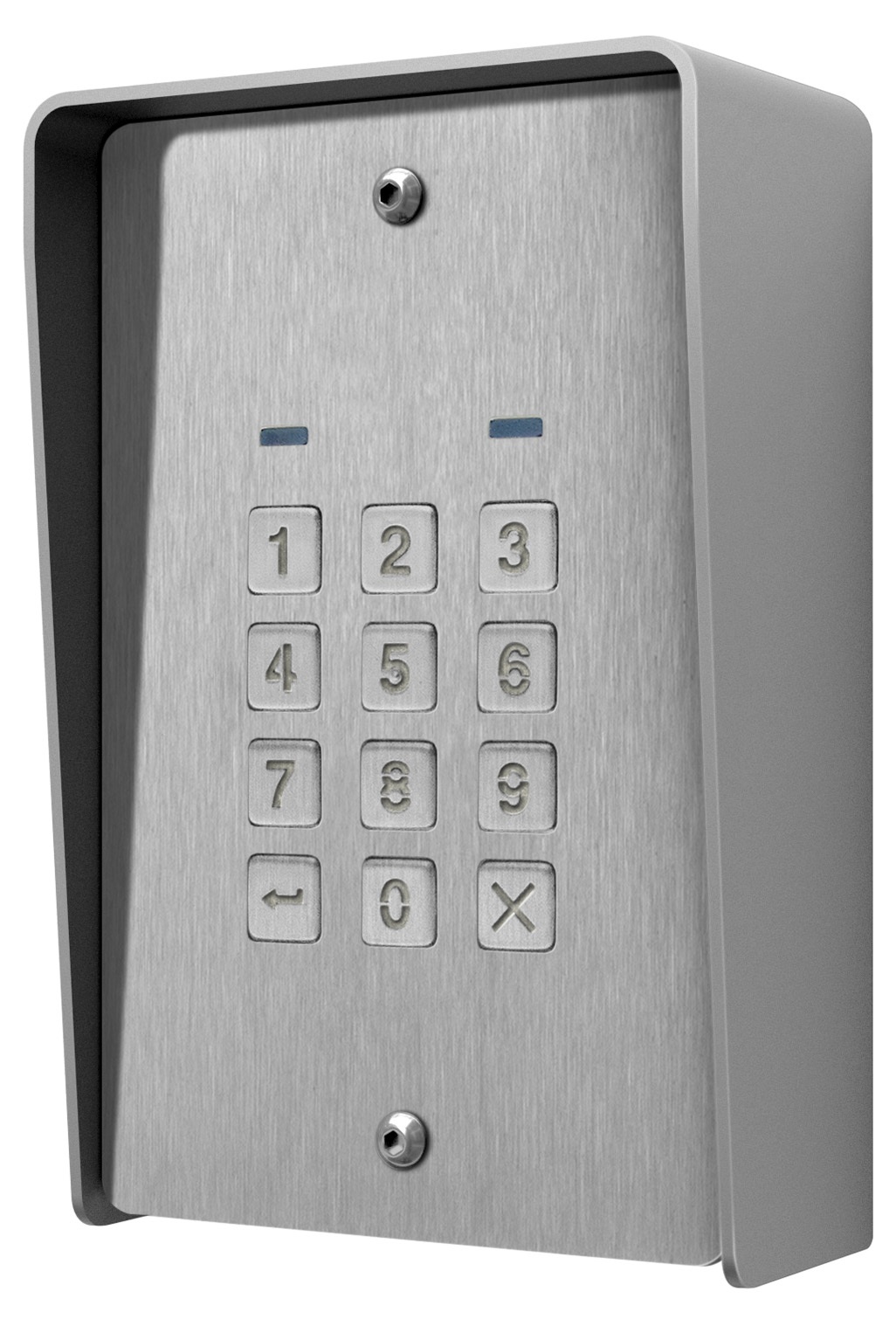

Videx 8901/S Standalone back lit keypad

ADDITIONAL INFORMATION

The keypads can be programmed with 3 codes (1 code per relay), with 3 relay outputs which have a switched 0V PTE input for relays 1 and 2 only. The relays are programmable between 1-99 seconds or 00 for latching mode. Low current keypads which require a 12-24v ac/dc psu and have blue backlit buttons with adjustable brightness control.

• Self-contained standalone keypad
• Brushed stainless steel finish with flush or surface options
• 3 code/3 relay (8901) or 1000 code/2 relay (8902) models
• Programmable relay time (1-99 seconds or 00 latching mode)
• 4-8 digit code length
• 12-24V ac or dc keypads with low current
• Blue backlit buttons with brightness adjustment control
