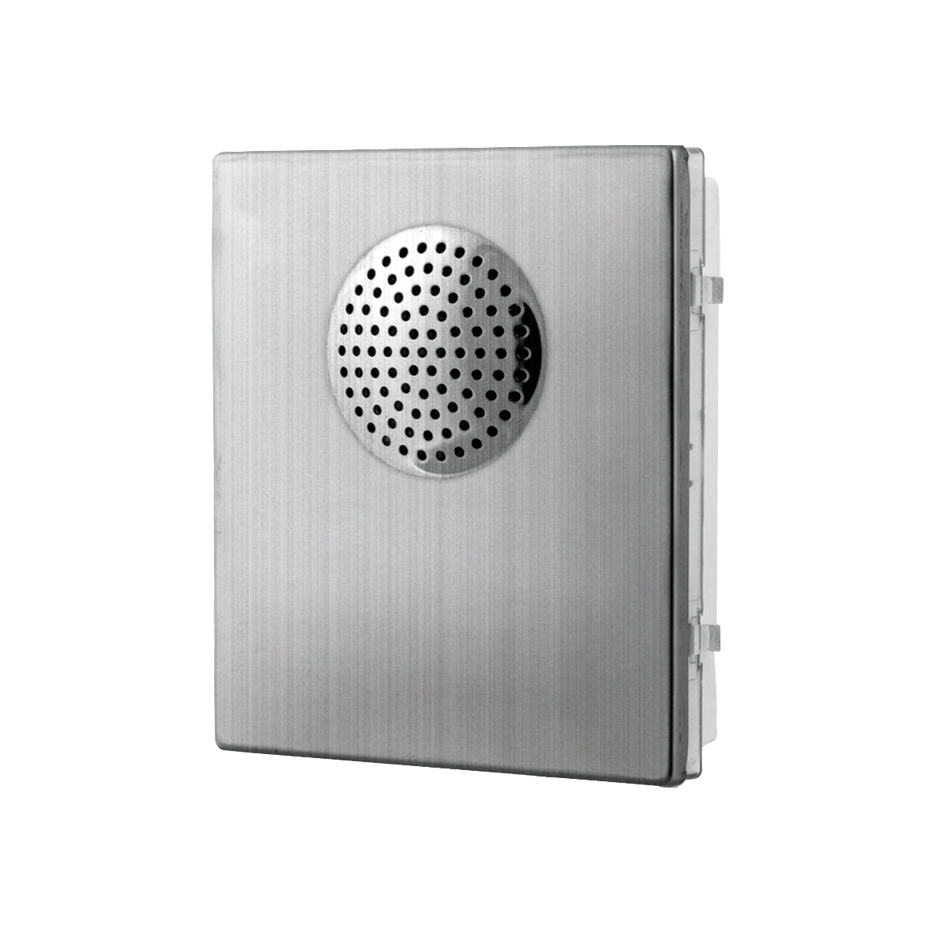

Videx 4836-0/M 0 button speaker module - matt finish

ADDITIONAL INFORMATION

4000 Series Speaker Modules

4000 Series speaker modules are available for all Videx systems, from the standard “3+1”, “4+1” and “5+1” audio up to the VX2200 and VX2300 digital systems. The speaker modules themselves are available with either 0, 1 or 2 buttons built into the module, however a further 62 buttons can be added using a combination of the 4842, 4843, 4844 and 4845 button expansion modules. Speaker units and button modules are also available with double buttons (2 buttons sharing a single name plate window).

All modules name plate windows are illuminated blue, and intelligent modules such as the 4838, 4203 and 4303N contain 4 call status LED’s alerting the user when the system is busy, a call is in progress, when to speak and when the door is open.

All modules contain a speaker and fly lead with microphone which is easily fitted into a 4000 series front frame. Modules attach to the 4000 Series housing frames using a simple but strong clip-in system which can be secured in place using an anti-tamper clip fixing.

Speech levels can be adjusted using separate controls for both the speaker and microphone.

All the modules above are available in a new matt finish 316 marine grade stainless steel (suffix /M) or mirror finish stainless steel.

Features

• Matt finish 316 marine grade stainless steel (/M) or mirror finish stainless steel front plate finishes available

• Blue illuminated name plate windows

• Multiple call button configurations using additional 4000 series button expansion modules

• 4000 series speaker and fly lead microphone (mic easily fits within a 4000 series frame)

• Speech volume adjustments

• Available for the complete Videx system range

• Simple and strong clip-in module system with anti-tamper lock fixings

SPECIFICATION

Technical:

• Power: 13Vac (4836)

• Power: 12Vdc (4837, 4838, 4203)

• Power: 30Vdc BUS (4303N)

• Call reassurance: Yes

• Buttons max: up to 2 on speaker module (up to 4 using double buttons)

• Buttons: Tactile microswitch

• Call Progress LED’s: Yes, 4x LED’s – busy, call, speak and door open (4838, 4203, 4303N modules only)

• Systems: 4836 (3+1), 4837 (4+1), 4838 (4+1 & 5+1), 4203 (VX2200), 4303N (VX2300)

• Lock output: Dry relay contacts: C & NO pair (4836 & 4837); C, NO & NC (4838, 4203, 4303N)

Variants:

• 4836-0 – 0 button speaker module (3+1 systems – 4K kit module)

• 4836-1 – 1 button speaker module (3+1 systems – 4K kit module)

• 4836-2 – 2 button speaker module (3+1 systems – 4K kit module)

• 4836-1D – 2 button speaker module (double button) (3+1 systems – 4K kit module)

• 4836-2D – 4 button speaker module (double button) (3+1 systems – 4K kit module)

• 4837-0 – 0 button speaker module (4+1 systems)

• 4837-1 – 1 button speaker module (4+1 systems)

• 4837-2 – 2 button speaker module (4+1 systems)

• 4837-1D – 2 button speaker module (double button) (4+1 systems)

• 4837-2D – 4 button speaker module (double button) (4+1 systems)

• 4838-0 – 0 button intelligent speaker module (4+1, 5+1 systems)

• 4838-1 – 1 button intelligent speaker module (4+1, 5+1 systems)

• 4838-2 – 2 button intelligent speaker module (4+1, 5+1 systems)

• 4838-1D – 2 button intelligent speaker module (double button) (4+1, 5+1 systems)

• 4838-2D – 4 button intelligent speaker module (double button) (4+1, 5+1 systems)

• 4203-0 – 0 button speaker module (VX2200 systems)

• 4203-1 – 1 button speaker module (VX2200 systems)

• 4203-2 – 2 button speaker module (VX2200 systems)

• 4203-1D – 2 button speaker module (double button) (VX2200 systems)

• 4203-2D – 4 button speaker module (double button) (VX2200 systems)

• 4303N-0 – 0 button speaker module (VX2300 systems)

• 4303N-1 – 1 button speaker module (VX2300 systems)

• 4303N-2 – 2 button speaker module (VX2300 systems)
