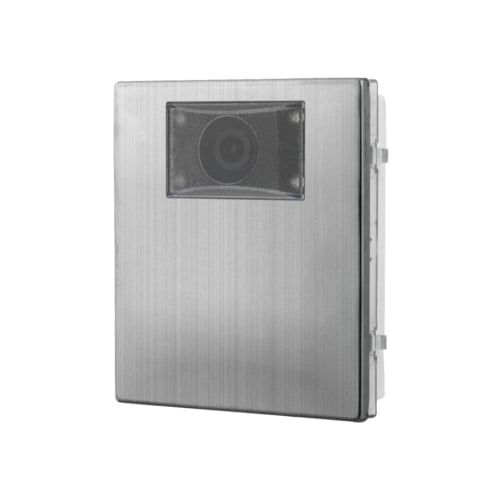

Videx 4830/C/M colour camera module - matt finish

ADDITIONAL INFORMATION

4000 Series Camera Modules

These 4000 Series modules are equipped with a CMOS colour camera with auto iris lens, complete with 4 white light LED’s for illumination. The cameras also have a 10° horizontal and vertical tilt adjustment. The 4830/C module can be configured to work on systems with coax video signals (V/M) or on systems using non-coax video signals (balanced, V1/V2) by setting the video mode with the use of jumpers, whilst the 4330N/C camera module is specifically designed to work with the VX2300 “true” two wire BUS system. The modules also contain a heating element to prevent the camera lens misting (anti-mist resistor).

The camera modules can be combined with 4000 speaker modules to make up a combined audio and video entry system and are compatible with the 4000 series surface and flush back boxes:

• For the 4830/C camera it can work in combination with the 4837, 4838 or 4203 speaker module.

• For the 4330N/C camera it directly connects to the 4303N speaker module via a CNV connector.

The camera modules above are available in a mirror stainless steel finish, a matt 316 grade stainless steel finish (suffix /M) or a gun metal grey finish (suffix /BL).

A wide angle camera is also available by adding (/W) to the product code.

Features

• CMOS colour camera with auto iris lens

• White light LED illumination

• 10° tilt angle adjustment (horizontal and vertical)

• Wide angle camera option available (/W), 170° viewing angle

• Internal anti-mist resistor

SPECIFICATION

Technical:

• Camera Type: CMOS colour camera with auto iris lens

• LED Illumination: 4x white light LED’s

• Camera Angle Adjustment: 10° ball joint (horizontal & vertical tilt adjustment)

• Wide Angle Option: Yes, 170° viewing angle (/W)

• Input Voltage: 14-20Vdc (4830/C)

• Input Voltage: 32-35Vdc BUS voltage via 4303N speaker module

• Output 4830/C: Coax (V/M) or Balanced (V1/V2) 1Vp-p video (selectable)

• Output 4330N/C: Direct CNV connection to 4303N speaker module

• Anti-mist Resistor: Yes (internal)

Variants:

• 4830/C – 4000 series colour camera module (stainless steel finish)

• 4330N/C – 4000 series VX2300 colour camera module (stainless steel finish)

• 4830/C/M – 4000 series colour camera module (matt 316 stainless steel finish)

• 4330N/C/M – 4000 series VX2300 colour camera module (matt 316 stainless steel finish)

• 4830/C/BL – 4000 series colour camera module (gun metal grey)

• 4330N/C/BL – 4000 series VX2300 colour camera module (gun metal grey)

Suffix /W for wide angle camera option e.g. 4830/C/W
