New OMEGA Z3 concrete in track for sliding gates 3m

Product Code: OMEGAZ3NEW

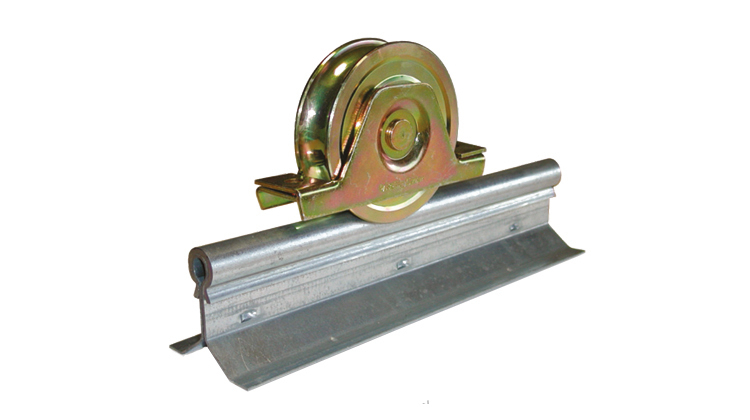

Rolling Center New Omega Z3 concrete in track for sliding gates.

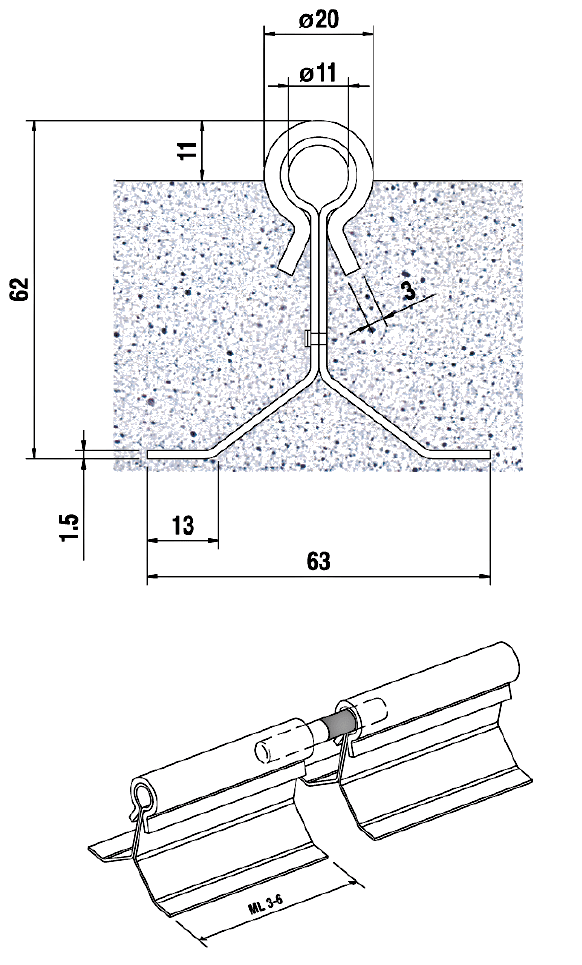

Concrete down ground track for sliding gates and industrial doors, 20mm round bar track for O groove wheels, supplied in modular 3m lengths, galvanised finish.

1.5mm steel body below concrete with 3mm hard carbon steel top rail.

Maximum gate weight 1200kg


*Joint pin sold separately

View more
inc VAT

Related Products (2)

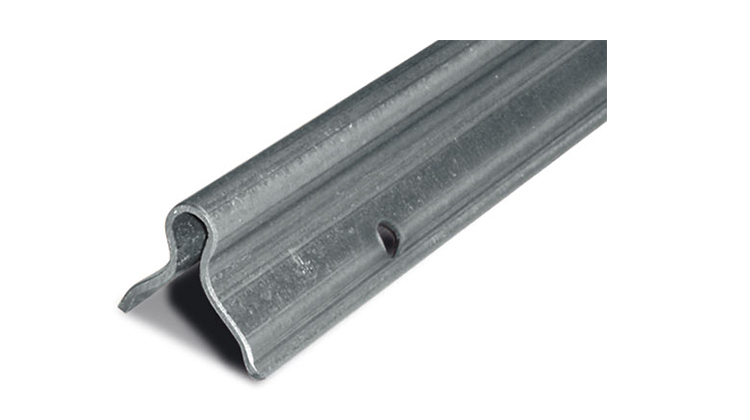

Sistema Z3 concrete in track 3m

Sistema Z3 concrete in track 3m

Product Code: SISTEMAZ3
inc VAT
View More

SPECIFICATION

MANUALS

OPTIONAL ACCESSORIES

53NO New Omega Joint Pin SILVER
53NO New Omega Joint Pin SILVER
inc. VAT
F 40 SZ Bolt down travel stop
F 40 SZ Bolt down travel stop
inc. VAT
1026 PSO 100mm diameter o-groove wheel with support and 2 bearings
1026 PSO 100mm diameter o-groove wheel with support and 2...
inc. VAT
1030 PCO 100mm diameter o-groove wheel with closed support and two bearings
1030 PCO 100mm diameter o-groove wheel with closed support and...
inc. VAT
1030 O 100mm diameter o-groove normal wheel with 2 bearing
1030 O 100mm diameter o-groove normal wheel with 2 bearing
inc. VAT
