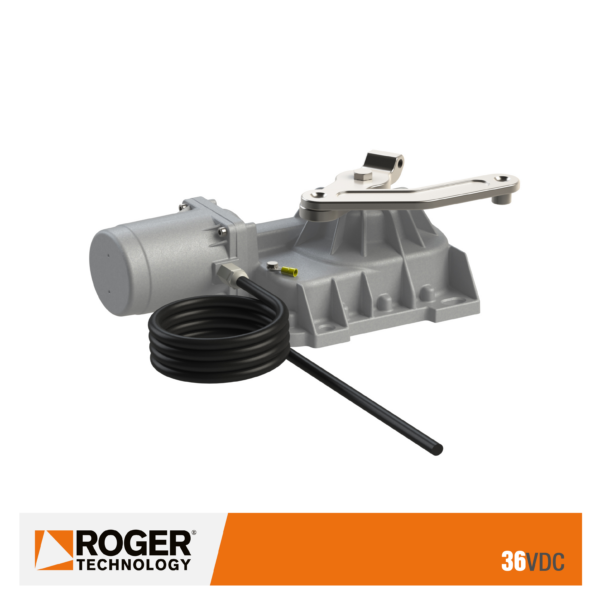

Roger Technology BR21/351 Motor
Product Code: BR21/351
Roger Brushless 36V DC Underground motor for swing gates.
View more
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
Related Products (1)

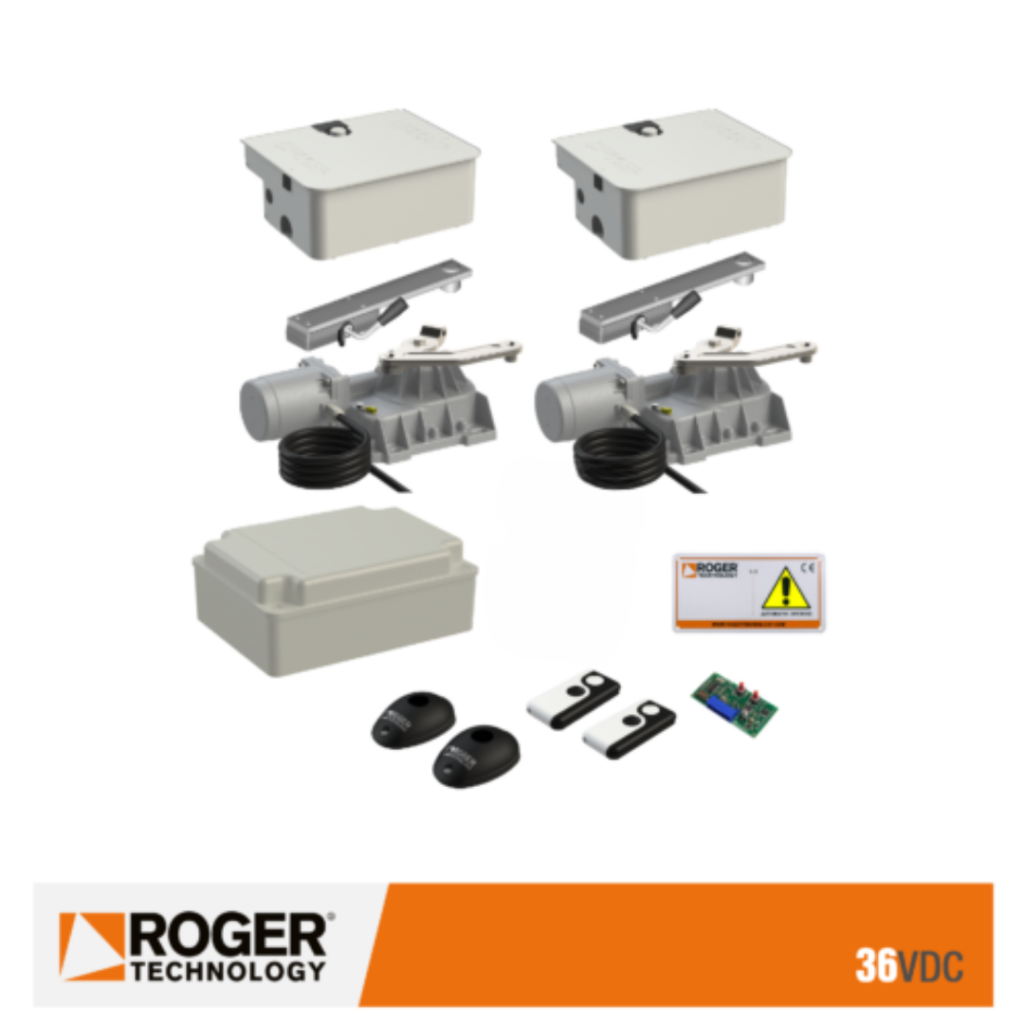

Roger Technology KIT-BR21/353 Brushless Underground swing gate 2 leaf kit
Product
Code: KIT-BR21/353
inc VAT
ADDITIONAL INFORMATION
Low voltage motor, for intensive use with encoder.
Ideal for swing gates up to 4.5m length (see technical table below) dependent on the weight of the gate.
Supplied with 2m cable
SPECIFICATION
Technical Specification
- Power Line Supply - 230V AC -50HZ
- Motor Power Supply - 36V
- Frequency of Use - Intensive Cycle
- Operating Cycles - 1300 per day - 24 hours no stop
- Product weight - 12.6kg
- IP67 Protection rating
- Operating Temperature - -20°C to +55°C
- Reductor type - Irreversible
- Opening time - 19 to 29 seconds
- Manoeuvre speed - 1.2 RPM
- Maximum opening - 105°
- Recommended Control panel - 230V Edge1 Box
