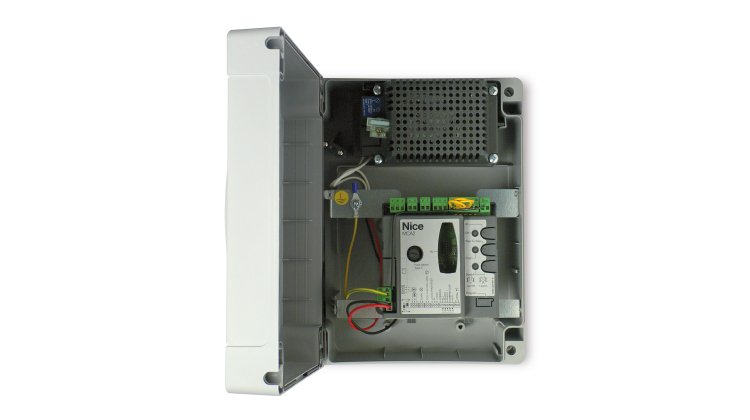

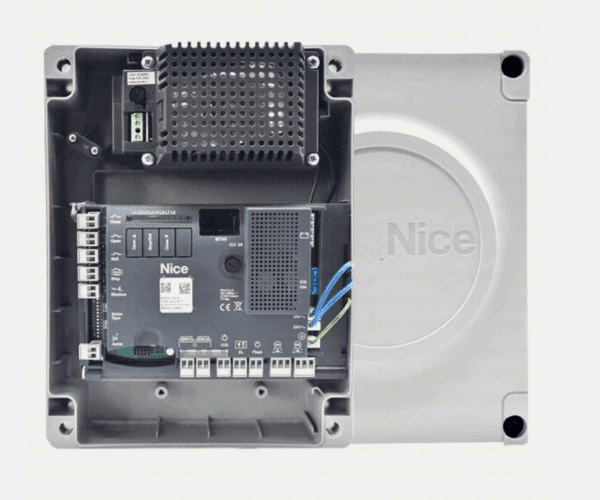

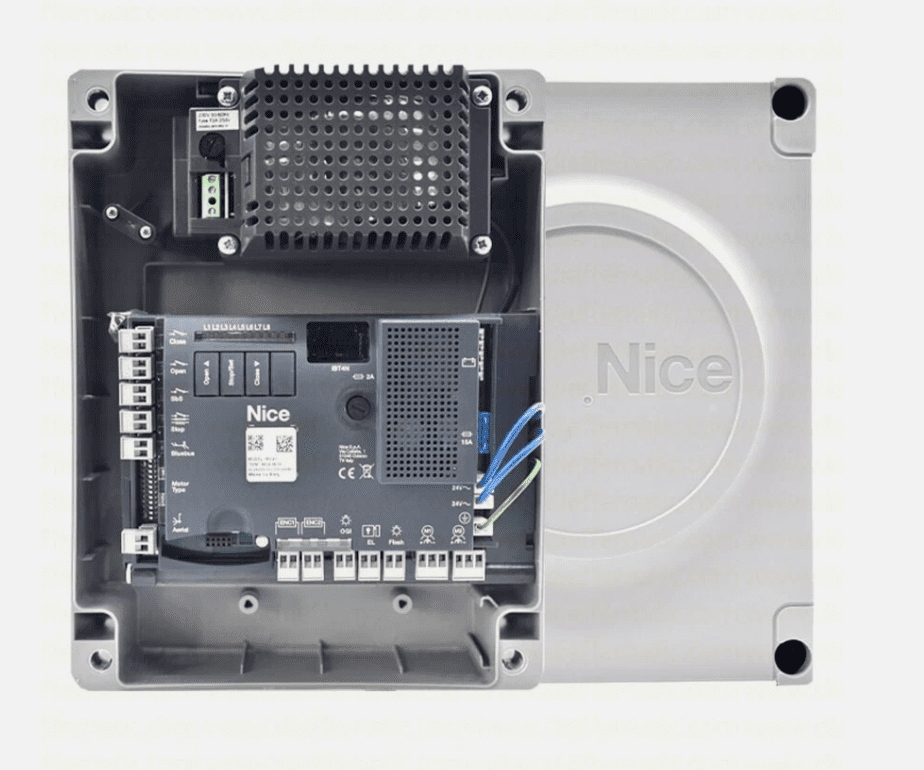

Nice Moonclever MC824H swing gate control panel 24v

Product Code: MC824H

For two 24vdc motors with encoder, with Nice BlueBus 2-wire system. Features include:
• In-built obstacle detection.
• Automatically memorises limits.
• Gradual start and slow-down.
• Battery back-up / Solemyo solar power option.
• Compatible with O-View programming system.

View more
inc VAT

ADDITIONAL INFORMATION

Compatible with the Opera system, which thanks to the O-View multi-function display enables personalisation of the system, modifying the opening and closing positions, leaf offset and deceleration intervals, and diversifying parameters such as force, speed, and obstacle detection for each motor.

Microprocessor logic: in addition to the classic functions such as intelligent clutch with anti-crushing safety device, gradual start-up and deceleration, automatic memorisation of both travellimit positions and the pedestrian door function, Moonclever also offers the advantages of the Opera system.

Safe and reliable thanks to obstacle detection with dual technology and monitoring of motor absorption and speed via the encoder, throughout door/gate travel, with provisionfor connection of latest generation resistive sensitive edges.

SPECIFICATION
