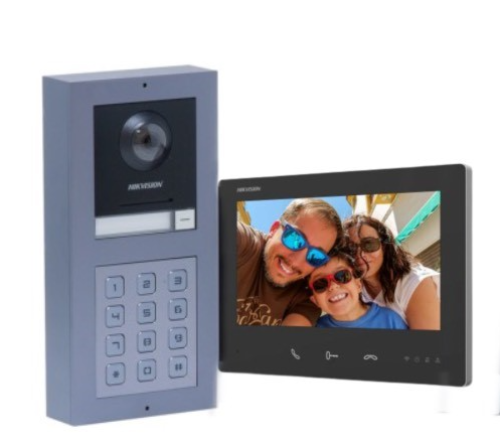

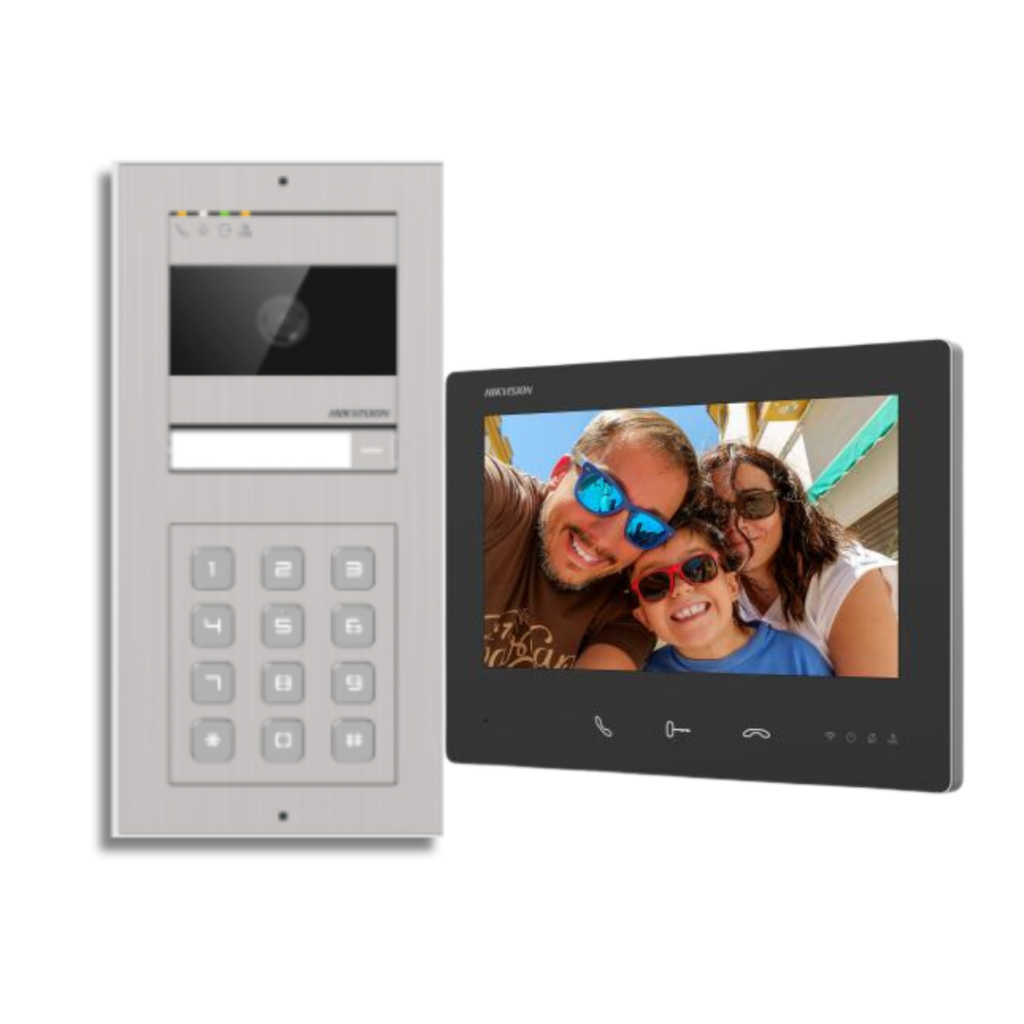

Hikvision 1 button 2 wire HD Video kit with keypad and 7 inch monitor

ADDITIONAL INFORMATION

Upgrade your old intercom system effortlessly with high-bandwidth transmission of audio, video, and control signals over the 2-wire setup.

Thanks to the enhanced compatibility of the 2-wire chip, enjoy supreme image quality powered by cutting-edge data transmission technology and professional-grade video capabilities. Users will love the crystal clear 2mp resolution camera.

The unit is powered from the video/audio distribution module (KAD706EY) using 2 wire cable or the existing cable if in good condition. Which at the same time carries the data making the system very simple to install, and easy to upgrade existing intercom systems.

You can answer calls & open the gate using the indoor 7 inch touch screen and remotely via the hikconnect mobile app or via PC using IVMS-4200.

• Two-pin wire for power supply and network access
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low illumination
• Tampering alarm
• Fisheye camera with IR supplement light
• Supports sub-modules' access (max. 8)
• Nametag customization

Additional modules such as touch and display, keypad and proximity can be integrated for a customisable intercom and additional features!

SPECIFICATION

TECHNICAL SPECIFICATIONS

DS-KD7003EY-IME2 Video module

• Aluminium finish
• F0V Horizontal 133 degree, Vertical 82 degree
• WDR Support
• 2MP Resolution
• 2 Lock control
• 4 LED Light indicators (Opening door, calling, intercom. In use)
• 0-2 Flexible adjustment button
• Protection level : IP65 IK08

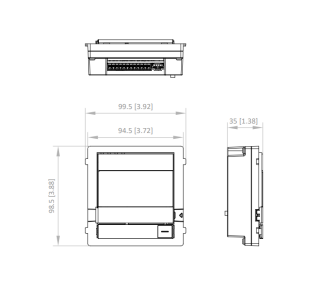

• Dimensions : 99.5x 98.5 x 35mm

DS-KH7300EY-WTE2 Monitor

• Colour - Black frame
• Indicators - 4 (Wi-Fi, Power, Mute, In use)
• Wi-fi support
• Capacitive touch screen operation
• 1024 x 600 Resolution
• 3 Touch Buttons
• 1 Alarm input
• 3 Linked Indoor Extension Capacity
• Mobile control support

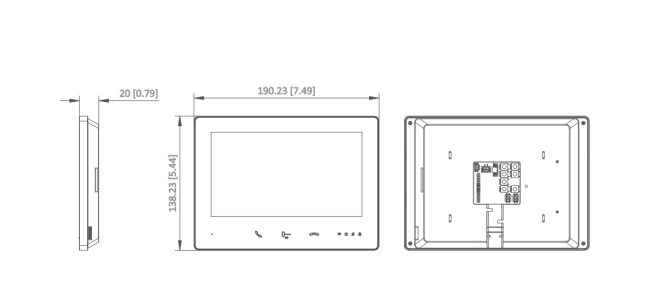

• Dimensions : 190.2 x 138.2 x 20mm

DS-KAD7060EY Distributor

• Two wire interface : 8 (In, Out for cascading, CH1-CH6 for door station and indoor station)
• 8 Signal indicators
• 2 Cascade interface
• Din rail installation
• Dimensions : 143.7 x 92.4 x 65.9mm

DS-KD-KP Keypad

• Operating System Embedded Linux operation system
• CPU Embedded MCU Processor
• RS-485 1
• Power Interface 1
• Buttons 12
• Installation Flush mounting, surface mounting
• Protective Level IP65, IK7

• Working Temperature -40° C to +55° C(-40° F to 131° F)
• Working Humidity1 0% to 95%
• Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
• Application Environment Outdoor
• Power Consumption 1 W
