EN16005 KIT U SR

CDVI EN16005-KIT-U-SR Digiway Spring Return kit for single door

Product Code: EN16005-KIT-U-SR

The DIGIWAY SR offers high quality and high performance door automation, assisted by a chain driven spring mechanism. The satin anodised aluminium finish gives further aesthetic looks. Maximum door weight 200kg and width 1.5m.

Including the DIGIWAY Spring return, this full single door kit is the answer for intensive use, high traffic sites such as front doors or commercial sites.

The kits include the DIGIWAY door operator, safety sensors, finger-guard, and safety signage. Other components may be needed to comply with the regulations, depending on the site and requirements of the project.

View more
inc VAT

ADDITIONAL INFORMATION

DIGIWAY is a reliable, durable, and aesthetic solution for improved mobility in a wide range of environments, backed by a 2 year CDVI warranty.

The DIGIWAY Spring return is a fully automatic motor-return door operator designed for high traffic and intensive use doors . Designed to combine ease of installation with discreet yet efficient operation, DIGIWAY is suitable for people with reduced mobility under SENDA, whether a care home or for hygiene facilities.

Safety sensors are a key part of meeting EN16005 regulations. The Infrared sensor allows users to trigger the door to open upon approaching it, but also prevents trapping or harm. If a person or part of a person enters a zone where they could be injured by the motion of the door, sensors detect this and immediately stop the door. The sensor included in the kit uses infrared technology to scan the areas of potential danger. The finger-guard is to be installed and used along the hinge line.

No cables on either side of the motor for a sleek aesthetic solution to suit your installation. The Digiway is a compact electric motor for quiet, discreet operation whilst improving security with access control integration. The built-in radio receiver ensure a seamless & wireless activation of the door. DIGIWAY door operators can be ordered with an optional built-in Bluetooth module for simple programming using DIGIWAY BLE smartphone app

The DIGIWAY SR door operator is certified to withstand fire for up to 60 minutes under the EN1634-1 standard. The operator can also be easily connected to fire signals to automatically respond in an emergency. The door can be set to lock, unlock, close, or swing freely in the event of a fire.

Main features

• Operating modes: Fully automatic, Semi-automatic, Always open, Door free;
• Operating with single door, double door, with or without leaf overlap;
• Guided procedure for door travel limit settings;
• Remote controls memorisation and management;
• Slow motion approaching the limits;
• Push & Go / Pull & Go function;
• Adjustable Pause Time, max Closing Speed, max Opening Speed, Closing final speed;
• Opening Jolt fully adjustable;
• Status tricolor LED (red - orange - green);
• Adjustable electrolock hold time and torque;
• Adjustable opening Jolt parameters;
• Adjustable Stop photocells;
• “Fire mode”;
• Night / Day mode;
• Door open output relay.
• Cycles counter;
• Obstacle log register (20 logs)

SPECIFICATION

Heavy duty door operator

60 minutes fire rated - EN1634-1

Semi-automatic (spring return) & Fully automatic (motor return)

Compatible with CDVI transmitters - up to 50 capacity

Bluetooth plug-in for programming via smartphone app

Power supply: 230Vac, 50Hz

Motor power: 100W

Motor voltage: 24Vdc

Temperature : -10°C to 55°C

Power for electrolock: 12Vdc / 1A max or 24Vdc / 0.5A

Rating: IP40

Cycles: Tested for 500,000 cycles

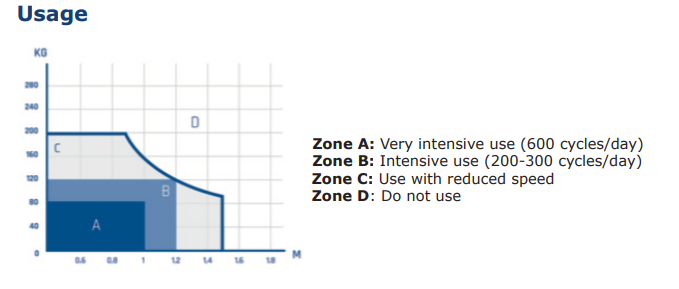

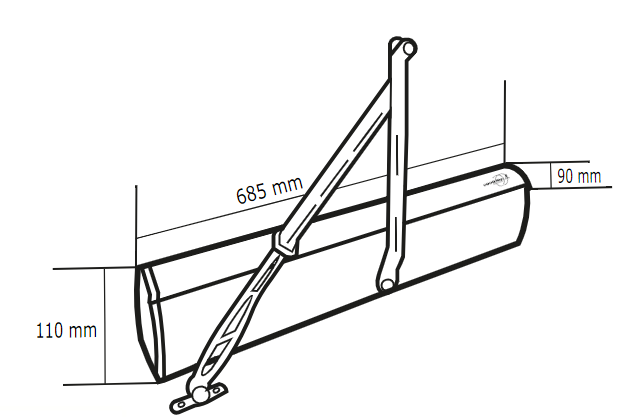

Digiway SR UsageDWSR102 U Dimensions

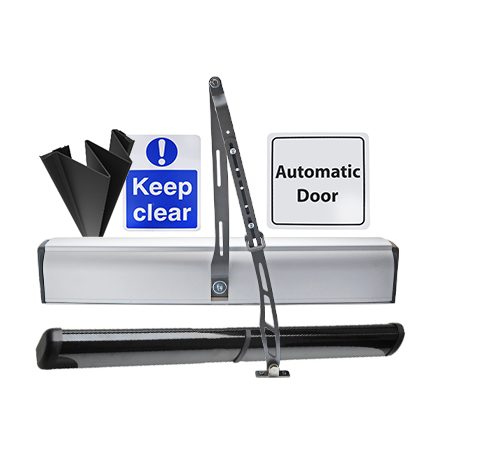

This kit contains:

  • DWSR102U

    Digiway Spring Return Door motor

  • DWSSS-5M1 X 2

    Infrared safety sensor

  • DWS-FGB

    Finger guard Black finish

  • DWS-KCSIGN X 2

    Keep clear sign

  • DWS-ADSIGN X 2

    Automatic door sign
