Beninca KBULL624T Turbo 24v above ground sliding gate Kit

ADDITIONAL INFORMATION

• THIS KIT DOES NOT INCLUDE DRIVE RACK
• Fast 24 VDC geared motor for intensive use with integrated control unit equipped with switching power supply (115/230 VAC) that permits a reduced power use and a long lifespan of the actuator

• The main control unit, on the top part of the motor, makes it possible to facilitate the wiring procedure and also to calculate the position of the motor starting from the measurement of instantaneous speed (virtual encoder)

• The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety

• Self-programming with the radio transmitter can be activated at the first installation. Practical cableguides

• Maximum performance and speed (25.5 m/min with 600 kg) • Anti-crushing system with amperometric obstacle detection

• Safety sensor that stops the motor power supply during release operations

• Designed for connection to the X.BE module to integrate the device into KNX home automation systems

• Convenient compartment for 2 mod. DA.BT2 2.1 Ah batteries

• Metal release lever

• Option to operate opposed sliding gates using the SIS accessory

• Version available with magnetic limit switches (BULL624 TURBO.S)

Product Features:

Advanced PCB (top mounted)

New control panel with the switching transformer for a supply of 195 to 265 Vac 50Hz. The control panel is installed above the motor for more comfortable wiring and programming. All parameters and logic are set up using the LCD display and buttons.

Built in battery back up charger

Built in battery back up charger, so just add batteries for 24v operational battery back up.

New quick programming function

During the initial set up stage you are able to program the motor by using a transmitter which will perform a ‘quick auto-set’.

Virtual encoder and STC system

BULL624 Turbo is equipped with a virtual encoder which ensures the best safety and optimal management of the slowdown phases with the possibility to track it using the STC system.

Advanced safety features

Manual release mchanism fitted with a motor cut out and safety sensor for optinum safety during maintenance.

Details which make a difference

Handy cable clamp and extended protection around cable entry as well as housing for 2 x 12v batteries (2.1Ah DABT2) within the motor housing for operational battery back up.

KNX integration

Ready for the connection of the X.BE accessory for integration with KNX Domotica System.

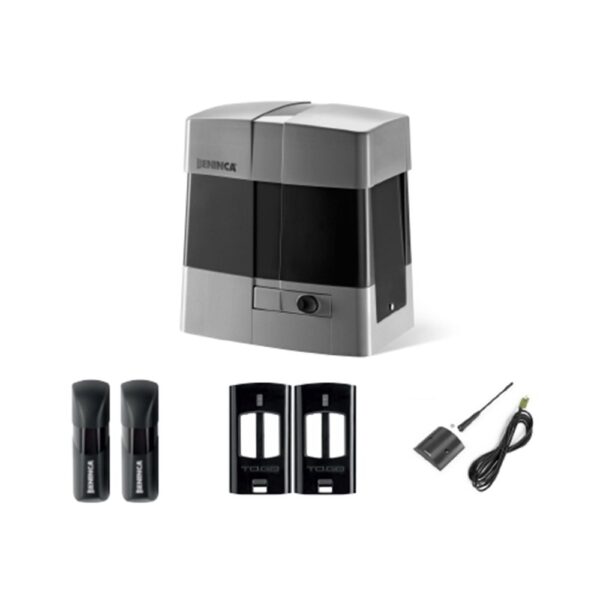

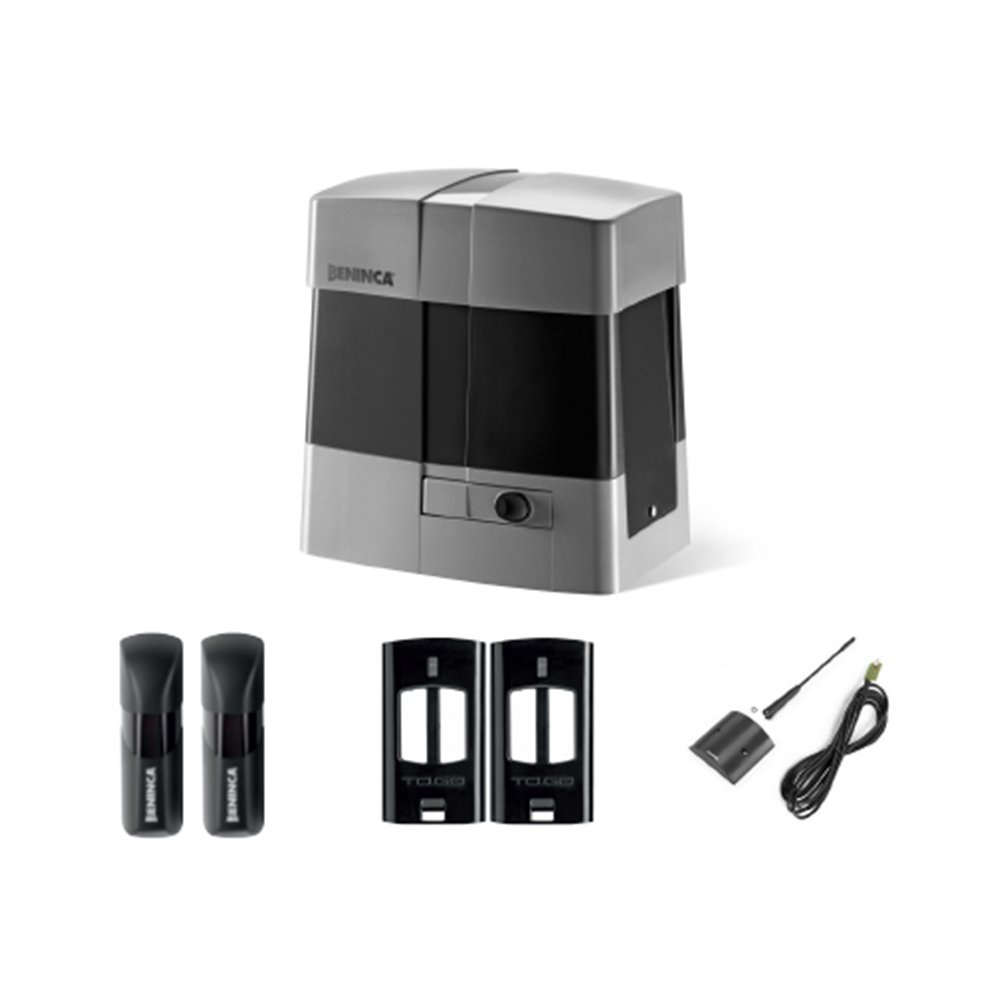

Kit includers:

1 x BULL624T 24v Turbo Motor

1 x CP.B24ESA Built-in control panel

1 x PAIR PUPILLA Photocells

2 x TO.GO2WV 433.92 MHz transmitter

1 x AW Aerial

SPECIFICATION

Key Features:

• 24v 600Kg & 1200KG capacity
• Amperometric sensing obstacle detection as well as a virtual encoder for optimum management of slow down phases
• Built-in control panels for ease of installation (top mounted)
• Full metal manual release mechanism with additional safety sensor during maintenance
• FAST 25 m/min speed – full TURBO operation

Technical Specification:

• A built-in radio receiver which allows up to 512 transmitters to be coded
• Switching power supply 195 – 265 Vac 50hz
• Standard M4 z18 (mod 4) drive rack
• Built-in battery back up, space and housing to just add batteries
• Intensive duty cycle – up to 120 cycles per hour
