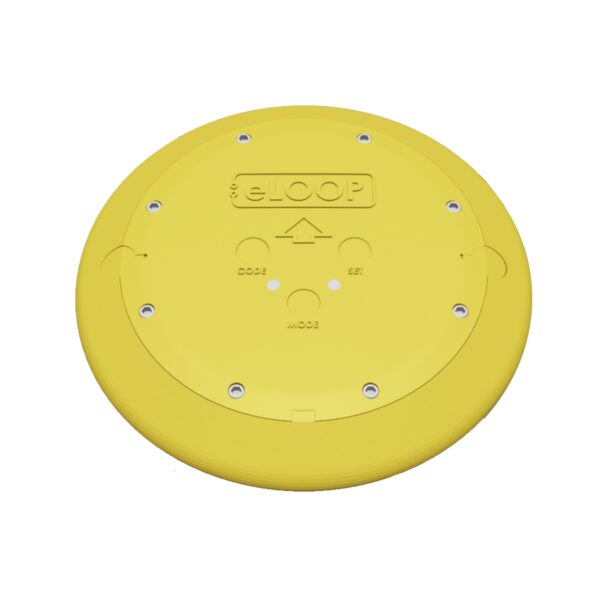

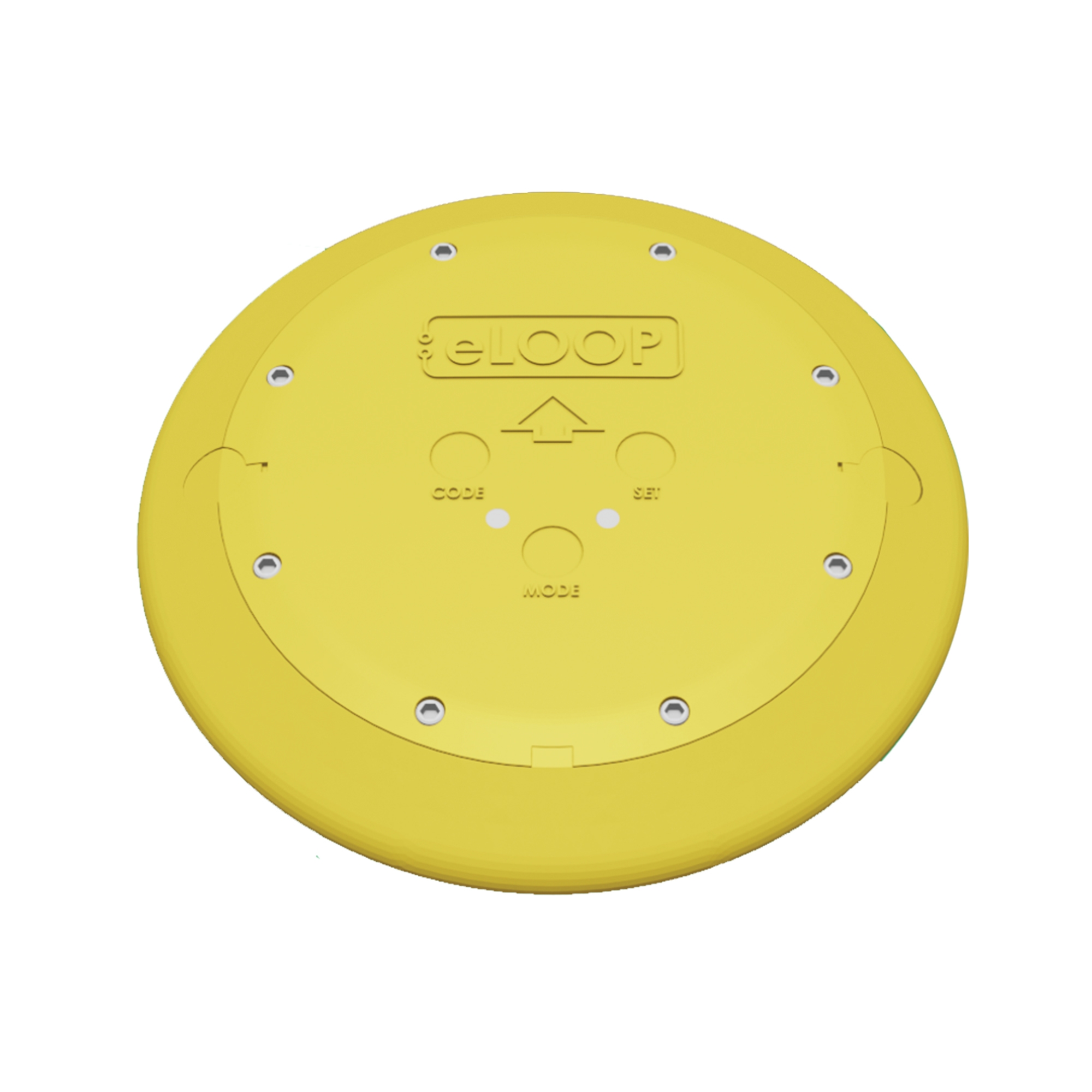

AES EL00C-RAD E-loop commercial loop only for Presence mode

ADDITIONAL INFORMATION

All Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power.

EL00C-RAD presence only commercial wireless detector

The Radar sensors can detect vehicles that are stopped above the e-loop.
The added radar utilises two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an
oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop.

If the confirmation is missed, multiple attempts will be made to ensure A safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode

Installation in 3 simple steps

1 - Code in e-Loop.
2 - Secure e-Loop to the driveway.
3 - Calibrate e-Loop and you're ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.

Quick and easy installation.

• Compact profile - only 26mm high x 200mm diameter.
• Not affected by ground movement.
• 10600 mA battery giving up to 10 years battery life
• High security 128 bit encryption.
• Static load capacity 2500kg.
• Range up to 50 meters.
• Made of high impact plastic

SPECIFICATION

Functions / Features
Lower power consumption
3-axis magnetometer for vehicle detection
• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode

Fast and simple installation
• Quick non-permanent installation
• Compact design
• Compatible with various gates

Reliable radio communications with transceiver
• Reliable radio communication
• High security 128-Bit AES Encryption
