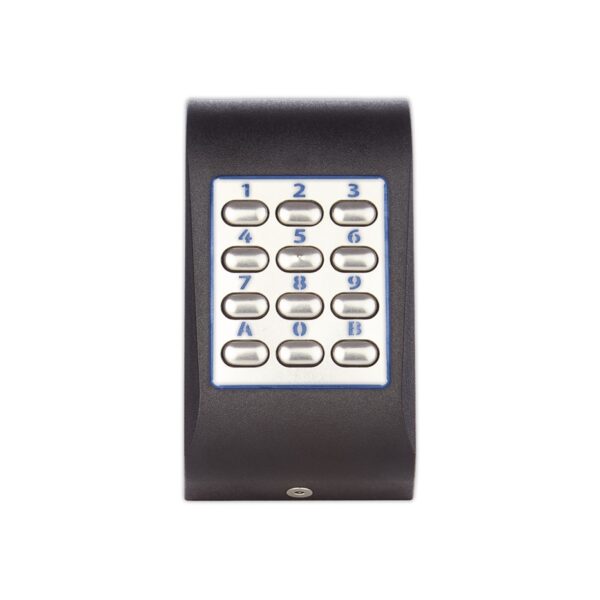

Videx WS4 combined keypad and mifare proximity reader

ADDITIONAL INFORMATION

Features :

Combined keypad and Mifare proximity reader

• Blue backlit keypad buttons
• Mifare proximity reader
• Readers with RS485 bus for easy connection to WS4 controller
• Readers compatible with Mifare classic, Desfire & Ultralight fobs/cards (13.56MHz)
• Touch sensitive exit button
• Audible and visual LED status indication
• Low current consumption readers and exit button
• Compatible with WS4 series cabinets

SPECIFICATION

Technical Specification :

• Material & colour: Surface ABS housing, black
• IP rating: IP65
• Communication & connections: RS485 bus connections to WS4 controller
• Keypad: Blue backlit buttons (1 – 9, A, 0 and B)
• Proximity reading type: Mifare Classic, Ultralight & Desfire 13.56Mhz
• Reading distance: up to 6cm
• Resin potted electronics: Yes
• Operating voltage: 9 – 14Vdc
• Status LED’s: 3 status LED indication (red, green and orange)
• Internal sounder: Yes
• Current rating: 30mA (standby), 100mA max.
• Working temperature: -20°C to +50°C
• Dimensions (mm): 90 (L) x 51 (W) x 27 (D)
