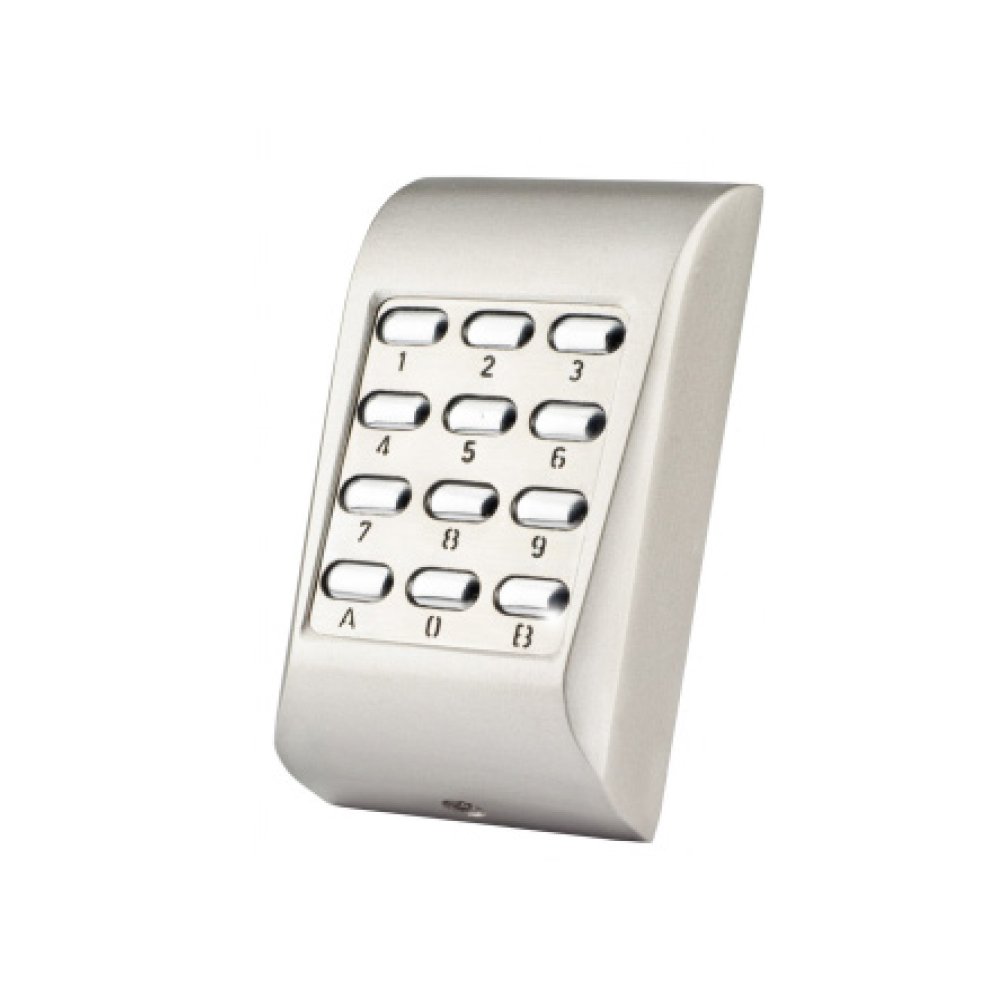

Videx MTPADS-M Silver wiegand codelock

ADDITIONAL INFORMATION

With resin potted electronics, IP65 rated. Blue back-lit key buttons and numbers for easy viewing. Additional user friendly features include three indication LED’s behind key buttons 1 (green), 2 (red) and 3 (orange) for use during operation and programming. An integral beeper and tactile feel provides user feedback.

Standalone coded keypads will suit access control of single entrances and only require a 12/24 AC or DC power supply and a lock. They include a dry contact relay output, exit button input and memory for up to 99 codes. Additionally there is 0V transistor switched output to trigger another relay for other purposes such as a second door.

Features

• Standalone surface mini back-lit keypad
• Resin potted electronics in an IP65 rated housing
• Available in a silver or matt black finish
• Compact design with a 92mm x 51mm x 27mm housing
• Up to 99 users codes with configurable relay time
• Visual and audible user feedback

SPECIFICATION

Technical Details

• Codes: 99
• Relays: 1
• Relay contacts: 2A @ 24Vdc / 120Vac
• Additional outputs : 1, 0V transistor switched output (100mA max)
• IP Rating : IP65
• Power supply input : 12-24V ac/dc
• Standby current: 30mA
• Operational current : 100mA max
• Dimensions : 51mm wide x 92mm high x 27mm deep
• Keys : Back lit blue button illumination with LED indication behind key buttons 1 (green), 2 (red) and 3 (orange)
