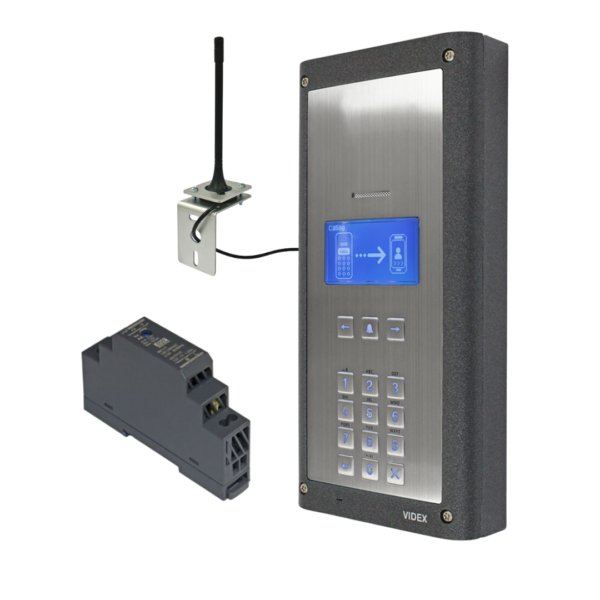

Videx GSMDIGITAL/4G/SCROLL GSM Kit up to 500 apartments

ADDITIONAL INFORMATION

**When used in conjunction with 4882 back box, the middle support bracket must be removed prior to fitting

An event log (up to 8000 stored events) is maintained within the digital 4G GSM module and can be downloaded via the USB port or RS485 bus connection using the GSMSK PC software

Programming the digital 4G GSM can be carried out using standard SMS text messages, via the onboard keypad, or via either of the GSM mobile Apps (the SMS Wizard App for users and SMS Wizard PRO App)

The surface mount back box module is fixed to the module support frame using a strong clip system. Manufactured from one solid piece of aluminium alloy with a waterproof gasket that fits in between the frame and back box.

The GSM 4G Antenna comes with L bracket bracket and 5m cable with SMA Female connector

A compact 12V DC 2A Power Supply Unit that is both DIN rail and wall mountable

SPECIFICATION

4882 surface back box dimensions: 135mm (W) x 280.2mm (H) x 44mm (D)

• Working Voltage: 12v DC +/- 10%
• Standby Current: 60mA (max.)
• Max. Current: 500mA (max.)
• Programming: Via alpha-numeric keypad, SMS messaging or PC software
• Push to Exit: 1 (switched 0v input)
• Auxiliary Input: 1 (switched 0v input)
• Auxiliary Output: 1 (open collector output, switched 0v, 150mA
• Divert numbers per apartment: 1 to 3 numbers each
• Proximity access control: up to 2000 users (fobs/cards)
• Apartment call timebands: 10, 9 of which are programmable
• Free access timebands: 10, all of which are programmable
• RS485 Connection
• USB connection : Yes, Micro USB
• Proximity compatibility : 955/T & 955/C
• Dry Contact Relay: 3amp @24v DC, 3amp @ 120v AC
