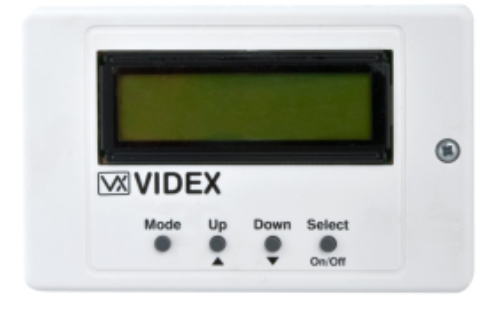

The 701t is a BST/GMT digital timeclock with 2 line back lit LCD display, 6 programmable on/off times and a trade button input.
Powered from 24V ac or dc and supplied in a wall mount white ABS plastic box
View more2 Line 16 character LCD display
o Back lit display
o Operates from 24V AC or DC
o Six fully programmable On/Off times
o Programmable for weekday, weekend, individual days or all days.
o Easy to follow programming menu
o Minimum of 8 Days rechargeable battery back up
o Automatic BST/GMT time correction (Over ride facility)
o Manual over ride to toggle relay state
o Trade button mode c/w trade button input
o Relay time programmable from 1 – 99 seconds during trade mode
o White impact resistant ABS plastic wall mountable enclosure
o Dry contact 3A change over relay output
Technical Specification
Supply Voltage: 24Vdc or 24Vac
Standby Current (Relay off): 47mA
Standby Current (Relay on): 67mA
Battery backup: Minimum 8 days
Relay contacts (Dry contact): 3A@24Vdc
3A @ 120Vac
On/Off times available: Six
Time Accuracy: less than + or – 2 seconds drift per day
Trade mode relay time: From 1 second to 99 seconds

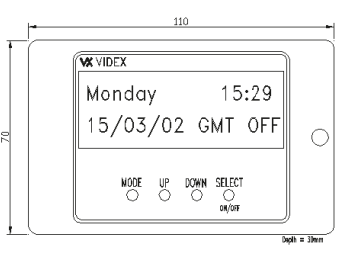

Dimensions: 110 x 70 x 30mm
Jumpers: JP1 (A = Trade mode, B = Time clock mode)
JP2 (A = BST/GMT Correction disabled, B = Automatic BST/GMT correction)
