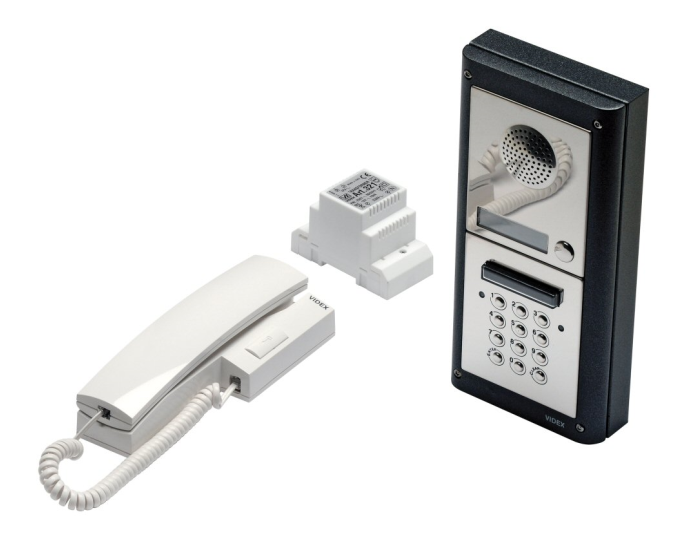

Videx 4K-1S/CL/M one station surface audio intercom with keypad matt finish

ADDITIONAL INFORMATION

4000 Series Audio Kits with Coded Access

Audio door entry kits with codelock based on the 4000 Series modular design incorporating two way speech, coded access keypad, electronic call tone and lock release facility. The door station is available surface of flush mounting with up to 12 call buttons each with a back lit name plate.

An incorporated codelock module has 3 dry contact relay outputs, timed 1-99 seconds or latching.

The standard finish is a stainless steel fascia with a gun metal grey surround. An aluminium fascia (/A) and a chrome (/C) or gold (/G) surround are also available. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional handsets can be connected in each apartment.

Features

• Audio kit based on the 4000 Series

• 1-12 call buttons available with illuminated name plate

• Surface or flush mount door panels

• Smart line handset with lock button and 3 position call tone volume control

• Connect up to 3 handsets per call button

• 3 code, 3 relay codelock module

The 4000 Series is an advanced range of modular door panels designed using the latest 3D modelling software.

The design is characterised by a number of unique features: the modules with front plate and push button are manufactured in mirror finish stainless steel, the frame (which is also the module support) is manufactured from one piece of die-cast aluminium alloy which gives substantial strength to the outdoor station, modules are attached to the module support frame using a simple but strong clip system. The fixing of the front panel to the back box (flush or surface) uses torx pin security screws.

The module support frame (flush or surface) is hinged to the back box. This allows for ease of cable installation and connection as both hands are free.

The standard finish for the module support frames and surface back boxes is embossed metallized “gun metal grey” while the module front plates are in mirror finish stainless steel.

The module front plates are also available in a new matt finish 316 Marine grade stainless steel (suffix /M).

SPECIFICATION

Technical Details

• Number of entrances – 1

• No. Of cores to telephone – 4

• Recommended cable type – CW1308

• Maximum No. Of telephones per call button – 3

• Lock output – Dry contact (C NO NC)

• Lock time – 1-99 seconds or latching

• Telephone model – 3011 (call tone)

• PSU model – 321 (13Vac)

• Amplifier module – 4836

• Codelock module – 4800M (2x PTE inputs, 1 per relay)

• Number of codes – 3

• Code length – 4-8
