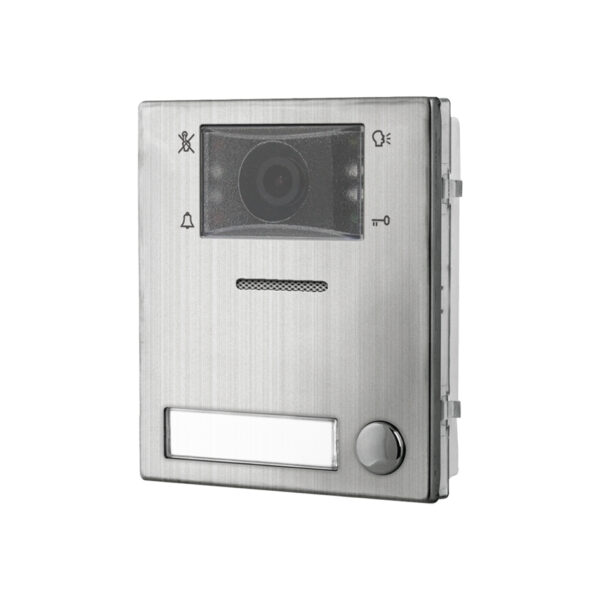

1 Button 4000 series audio and video speaker module for IP system with built in proximity reader.
The colour camera offers a high resolution in a robust modular design. Compatible with all flush and surface back boxes in the 4000 series and 955 range of proximity fobs and cards.
View more
The 4000 series audio modules are DDA complaint, equipped with call progress status LEDs: busy, call in progress, communication open and door open. Call reassurance tones to let the visitor know the call is in progress. Program key fobs via the IP Wizard software to operate the relay.
Compatibility with SIP and RTSP: With SIP 2.0 protocol support, the video entry panel can be connected to phones and VOIP switchboards while standard RTSP protocol allows transmission of the video stream towards third party devices
The latest 4000 series audio/video modules use flat ribbon cables with IDC connectors allowing for quick and easy installation, reducing working time, even during maintenance.
• CMOS colour camera with wide angle view (80° vertical angle, 170°horizontal angle) with white illumination LED’s.
• Integrated RFID proximity reader capable of storing up to 10,000 fobs (programmable via the VIDEX IP Wizard software).
• Impact Protection rating IK07 with a marine grade 316 brushed stainless steel matt finish or gun metal grey finish fascia.
• DDA compliant call progress status LED’s : busy, call in progress, speak and door open with voice annunciation and acoustic signals.
• Programmable door open (relay 1 & relay 2) times, conversation time and mic/speaker volume controls all programmable via the VIDEX IP Wizard
TECHNICAL SPECIFICATIONS
Camera and illumination LED’s : Wide angle camera (80° vertical, 170° horizontal) with white light illumination LED’s
Video codec H.263, H.263+, H.264
Supported resolutions 1280x720, 640x480, 352x288 (CIF), 320x240
Visual signalling LED’s Busy, Call in progress, Speak, Door Open
Audio codec G.711µ-law A-law
Sampling frequency 8kHz
SIP compatibility SIP 2.0
Name plate/Back light Yes/Blue
Integrated proximity reader access : 125kHz H4102 - 10,000 keys (Programmable via the IP Wizard)
Built-in buttons 0, (4534X-0) 1, (4534X-1) 2, (4534X-2)
Max buttons 42 (expandable using a combination of 4000 series IDC button modules via IDC connector)
Plate type and protection AISI 316 stainless steel, IK07 impact protection rating with IP65 ingress protection
Mounting Modular 4000 series - 1 module
Programmable settings and adjustments
Conversation time, door relay time and operating mode, RS485 termination, mic and speaker volume controls (via IP Wizard)
Relay and relay voltages 2x CO/NO/NC - (12-24Vac/dc 0.4A max.)
Power input 12Vdc (400mA) or PoE 802.3af (Class 0 : 12.95W)
LAN connectivity 10/100BASE-TX with Auto-MDIX, RJ45
PTE input Yes (2 programmable)
Working temperature -20°/+60°C
