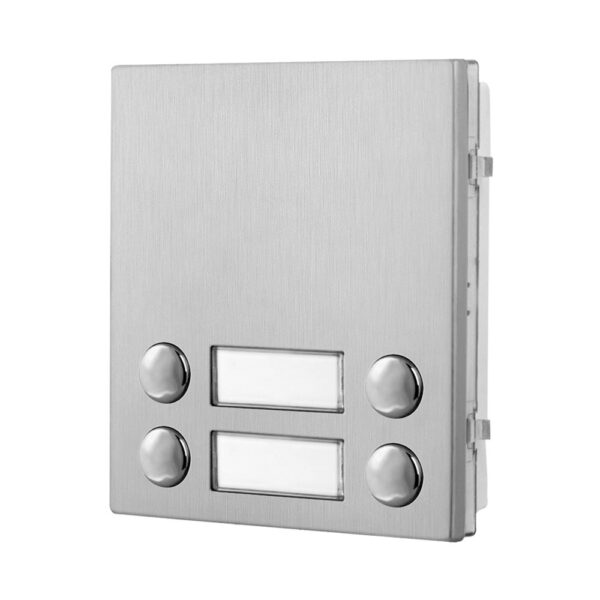

Videx 4042D/M 4 call button double row expansion module matt finish

SPECIFICATION

Technical Specification:

Name plate & illumination: 5, back-lit blue
Module protection rating IK07 impact protection and IP65 ingress protection
Backlit LED jumpers J1 and J2: for setup of backlit nameplate illumination
Other setup jumpers & switches: Trade button switch SW1 to setup trade button terminals P1. Also left and right hand side button configuration jumpers: JL and JR (depending on button module).
System compatibility 4000 series 4G GSM audiokit modules (4810/4G) with IDC connection.
VX2200 (4204, 4284 series) and VX2300 (4304, 4384 series) functional audioand video modules with IDC connection. IP audio and video modules (4504,4534 series) with IDC connection. Also other 4000 series button modules with IDC connections (see above).
Module Size 1 module 4000 series: 103 (W) x 120 (L) x 32 (D) mm
Working voltage 13Vac or 12Vdc for name plate illumination
Power consumption During operation: 45mA
Working temperature -20°/+60°C
