Videx 2291A-1D Audio control cabinet

Product Code: 2291A-1D

The Videx 2291A-1D 230Vac (50/60Hz) mains input voltage, 1 door surface mount control cabinet comes pre wired with keys.

For use on VX2200 Audio systems. Used as a central junction point and to switch through common data bus connections.

View more
inc VAT

ADDITIONAL INFORMATION

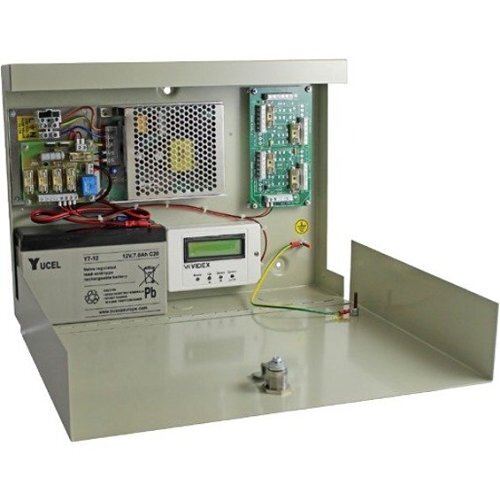

The entrance control cabinet comes with CAB2 lockable powder coated steel cabinet. They are fitted with an unboxed 13.8Vdc, 5A switched mode power supply with battery back-up facility, BST/GMT time clock and a 1 door entrance audio switching card.

Features

  • Isolation available: 4 way, 8 way and 12 way
  • Block control cabinets fitted with a bus exchange devic

SPECIFICATION

Technical Details

12Vdc PSU:

  • Input Voltage : 230Vac @ 50/60Hz +6% -10%
  • Output Voltage : 4x 13.8Vdc, +6% -10% (regulated)
  • Current : 4x 1.25A, (5A max.)
  • PSU Dimensions : 235mm (L) x 100mm (W) x 40mm (D)
  • Working Temp. : -25°C +70°C

701T Timeclock:

  • Voltage – 12Vac or dc (24V version available 701T/24)
  • Time zones – 6
  • Relay: 3A dry contact (CO, NO, NC)
  • Display – 2 x 16 character LCD

This kit contains:
