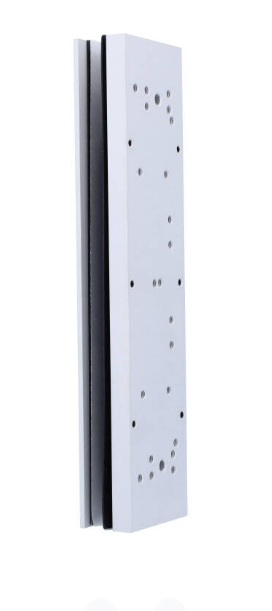

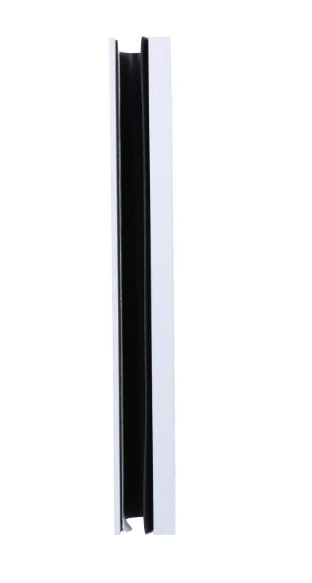

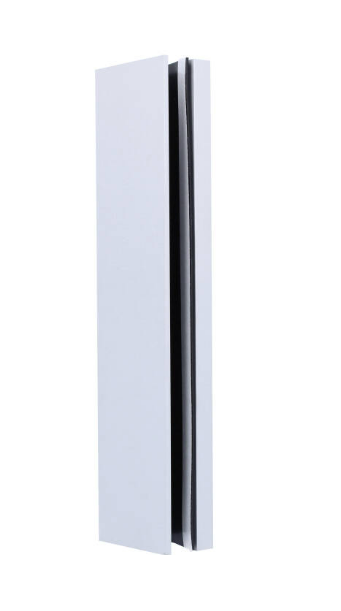

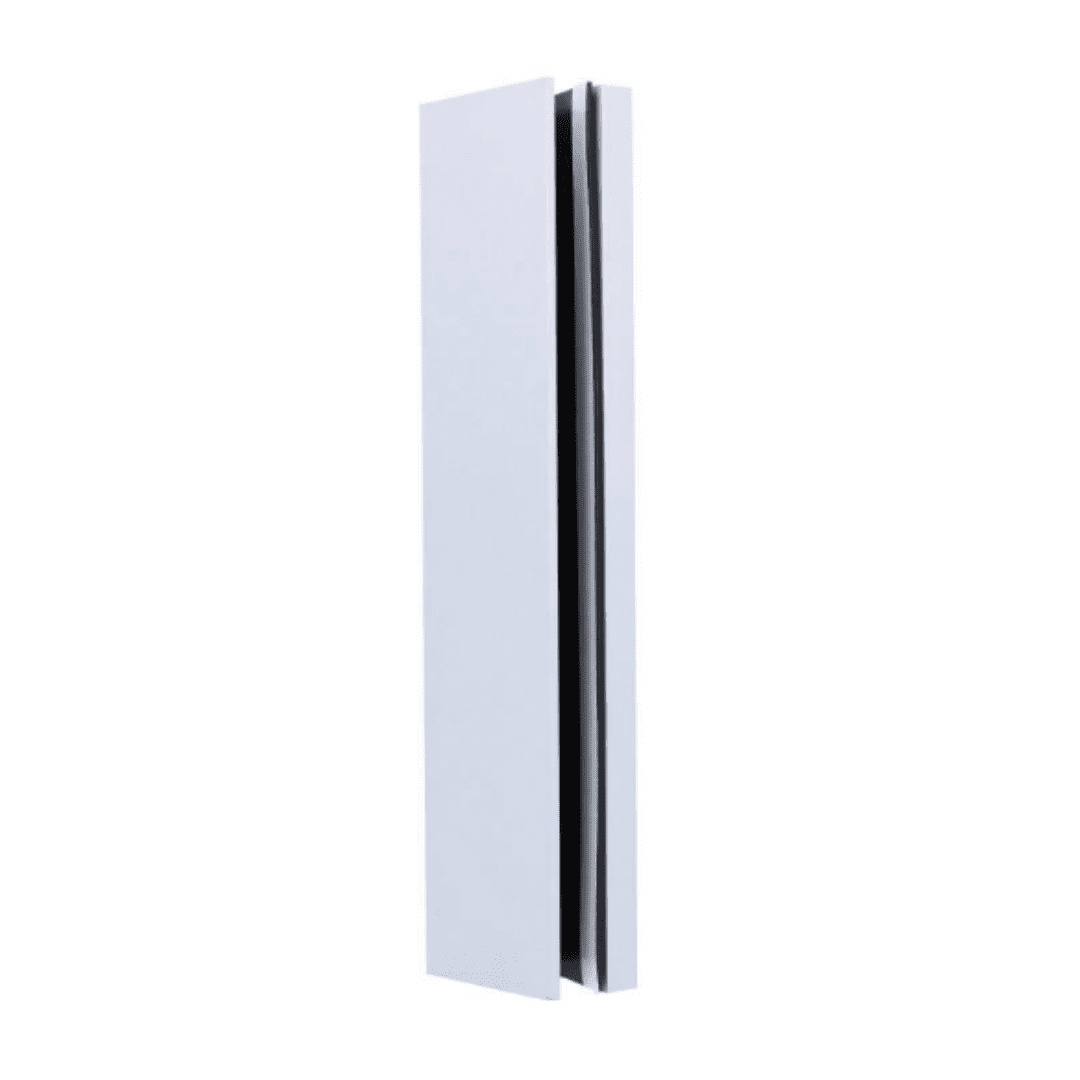

UBK-P U Bracket for magnetic and electric locks to glass
Product Code: UBK-P
Universal door clamp bracket, to fit surface lock housings and handles to glass doors.
View more
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
ADDITIONAL INFORMATION
Satin anodised aluminium silver metallic surface finish mounts the L bracket above the door, to which the electro-magnet is fitted. For an inward-opening door, a second UBK-P is required to fit the Z-bracket

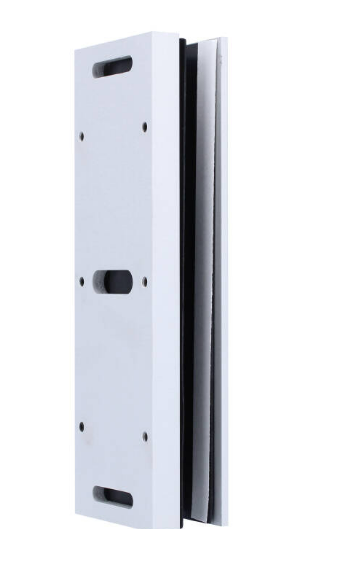

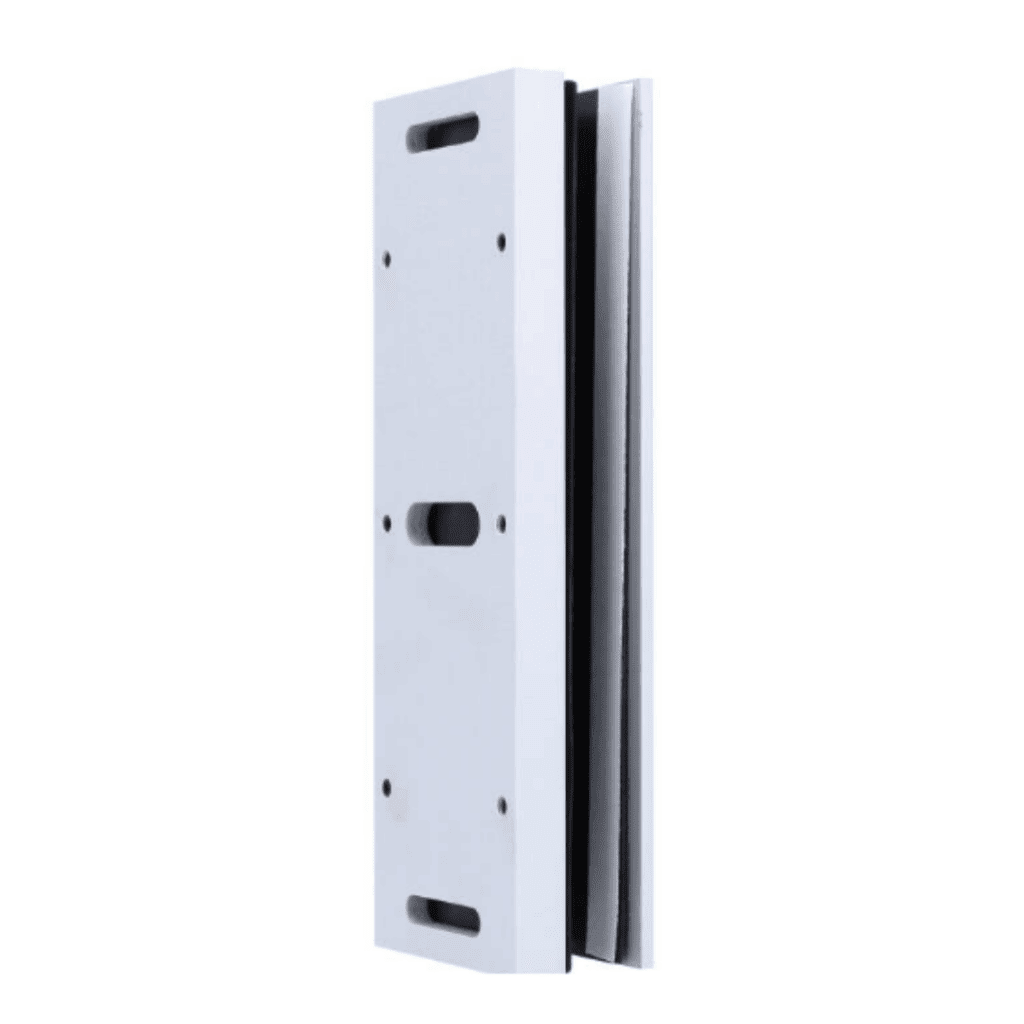

Use in combination with UBK-U for fitting armature plates to inward-opening doors
SPECIFICATION
Technical
- Height 266mm
- Width 62mm
- Depth 33.5mm
- Weight 0.67kg
MANUALS
This kit contains:
