  • Rolling Center FL16/95 16mm O Groove Corner radius 950mm track for sliding gates
Compare selected products
FL16 B 1

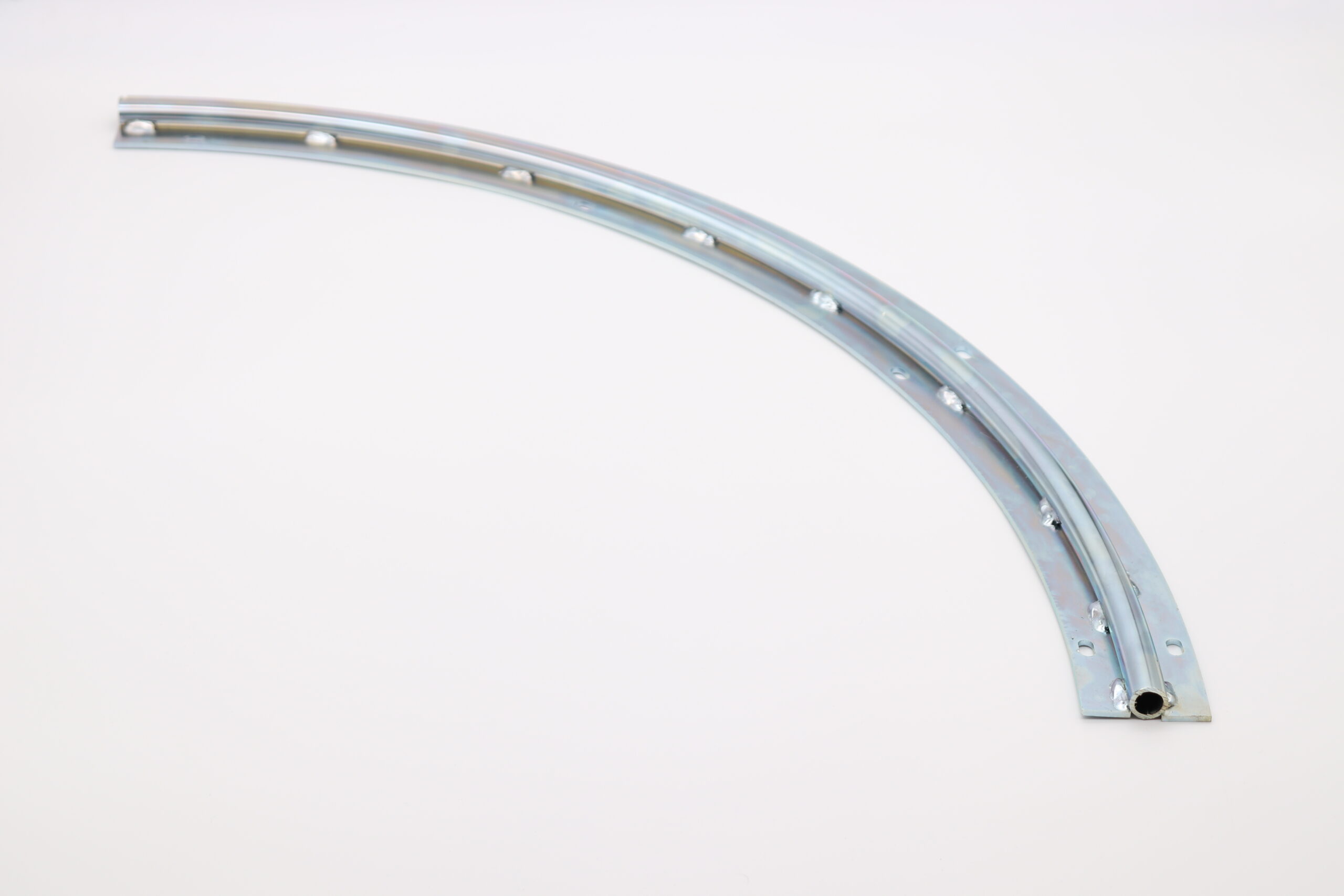

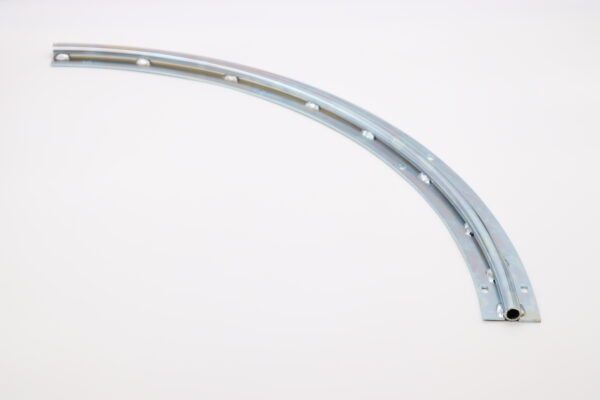

Rolling Center FL16/95 16mm O Groove Corner radius 950mm track for sliding gates

Product Code: FL16/95

The corner sectional radius is the latest system for space saving; it enables sliding gates to be tracked 90° around corners where space is limited.

The FL16/50 is a 950mm diameter corner radius track. Bolt down with an O Groove 16mm diameter bar. Maximum weight capacity of 500kg.

View more
inc VAT

Related Products (1)

Rolling Center FL16/50 16mm O Groove Corner radius 500mm track for sliding gates

Rolling Center FL16/50 16mm O Groove Corner radius 500mm track for sliding gates

Product Code: FL16/50
inc VAT

ADDITIONAL INFORMATION

The FL16/95 track is ideal for sliding gate panels with a maximum size of 1300mm width.

To be used in conjunction with FLOORZ3/16 16mm O Groove bolt down track.

When used in conjunction with automation, the motor can be mounted at the front or side of the track. (Refer to below technical specification drawing.)

SPECIFICATION

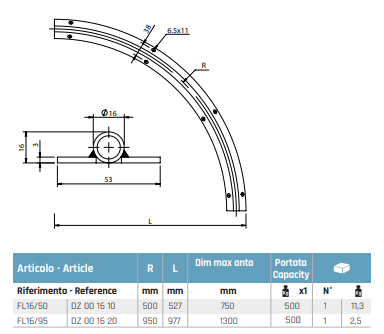

Fl16 dimsMotor mounting

MANUALS

Sorry, there are no manuals available for this product.

This kit contains:
