KIT BR21

Roger Technology KIT-BR21/353 Brushless Underground swing gate 2 leaf kit

Product Code: KIT-BR21/353

Roger Brushless 36V DC Irreversible underground gate kit for double leaf swing gates.

View more
inc VAT

ADDITIONAL INFORMATION

Low voltage motor, for intensive use with encoder.

Ideal for swing gates up to 4.5m length (see technical table below) dependent on the weight of the gate.

Supplied with 2m cable in cold galvanised foundation boxes.

SPECIFICATION

Technical Specification

    • Power Line Supply - 230V AC -50HZ
    • Motor Power Supply - 36V
    • Frequency of Use - Intensive Cycle
    • Operating Cycles - 1300 per day - 24 hours no stop
    • Product weight - 67kg
    • IP67 Protection rating
    • Operating Temperature - -20°C to +55°C
    • Reductor type - Irreversible
    • Opening time - 19 to 29 seconds
    • Manoeuvre speed - 1.2 RPM
    • Maximum opening - 105°
    • Recommended Control panel - 230V Edge1 Box

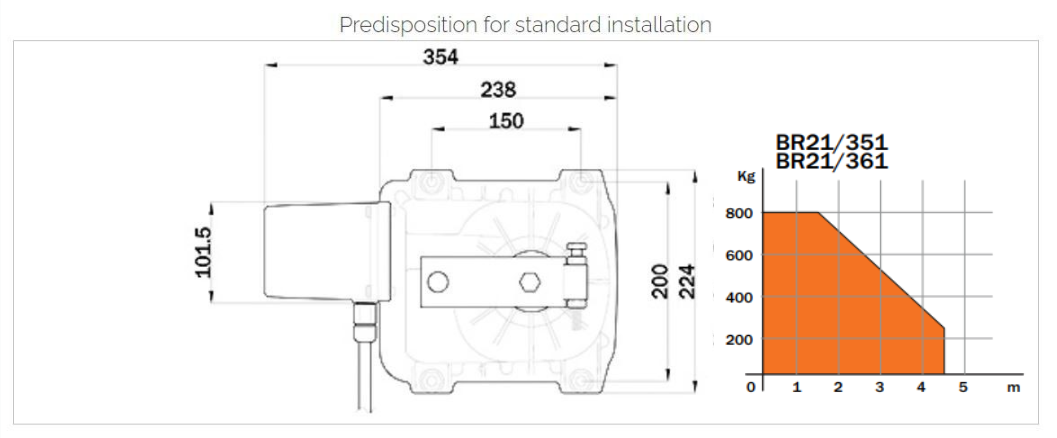

BR21 351 Dimensions

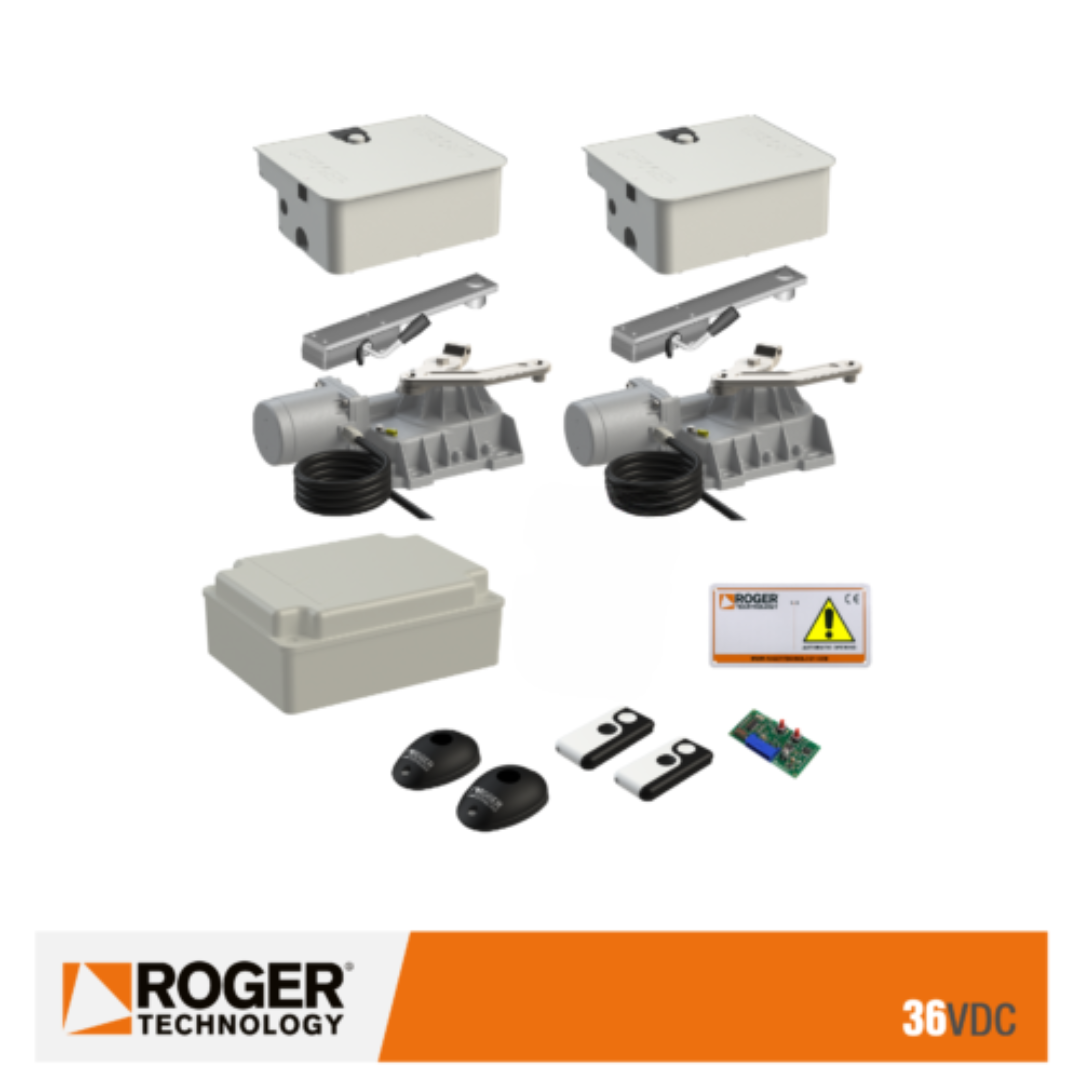

This kit contains:

  • 2 x BR21/351

    Underground brushless motor 2m cable

  • 2 x FU100

    Underground cold galvanised foundation box

  • 2 x RL650

    Standard lever release system

  • 1 x EDGE1/20

    Control panel and enclosure with photocell pair, receiver, and 2 x transmitters
