Locinox H-METAL-SET-54MM Insert lock set for 54mm box

Product Code: H-METAL-SET-54MM

The Locinox complete set is perfect to equip your metal gates with a 20 mm adjustable, stainless steel insert lock and keep. Ideal for the discreet and sleek finish to suit your gates!

A safe anchoring of the gate is guaranteed. With Silver aluminium handle, polyamide cover shields and 60 mm cylinder supplied with 3 keys.

View more
inc VAT

Related Products (1)

Locinox H-METAL Insert lock

Locinox H-METAL Insert lock

Product Code: H-METAL
inc VAT

ADDITIONAL INFORMATION

  • Complete set with lock, keep, cover plates, handles and cylinder
  • Easy left or right changing of the self-latching daybolt
  • Key-operated self-latching bolt
  • Adjustment of the latch bolt up to 20 mm continuous without dismounting the lock
  • Mechanism, hook, frontplate, latchbolt: stainless steel
  • Throw of the hook: 33 mm
  • Center-distance cylinder <=> handles = 92 mm
  • Hook in combination with the Locinox keep provides a secure anchoring
  • With coverplate for lock mechanism against dirt penetration

SPECIFICATION

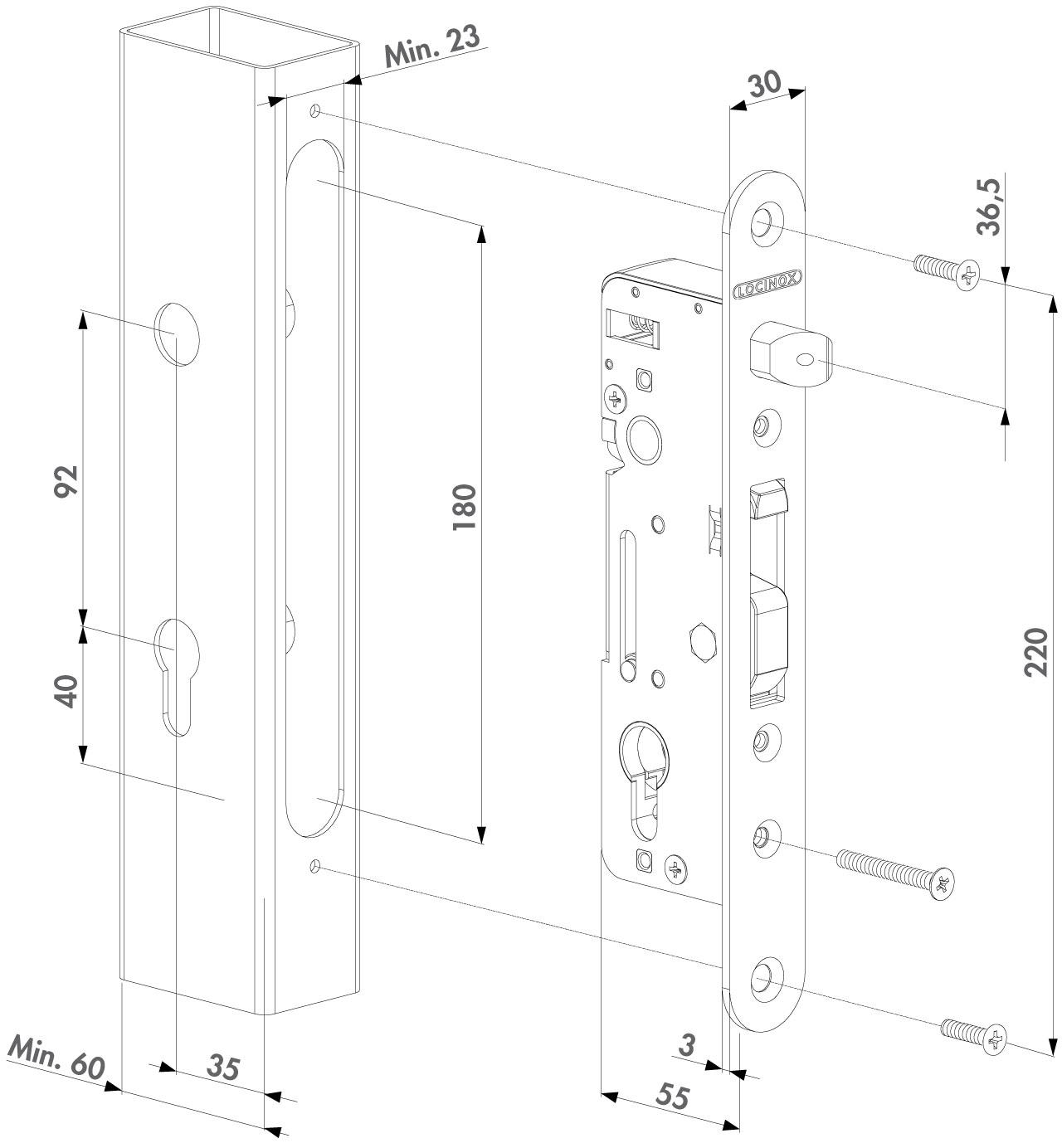

H METAL Dimensions 1280px 1SHKM Dimensions 1280px

MANUALS

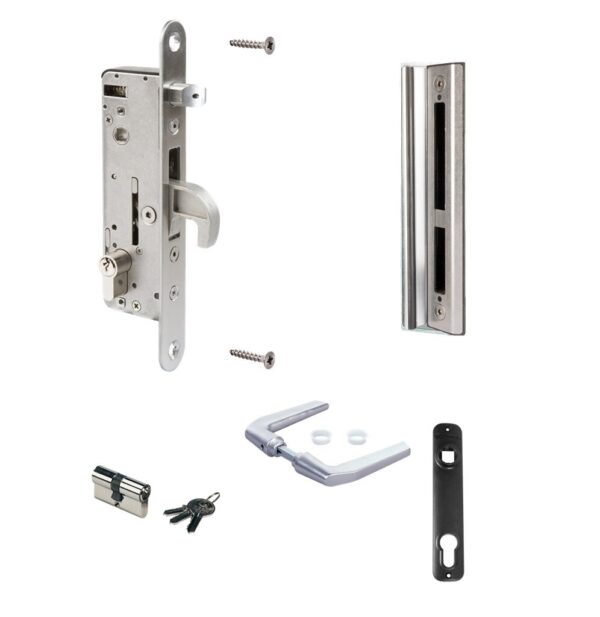

This kit contains:

  • 1 x H-METAL

    Insert lock with 35mm backset

  • 1 x 3012-54-STD-VSZ

    Keyed to differ 54mm cylinder with 3 keys

  • 1 x 3006M-H

    Aluminum silver handle with 120mm follower

  • 1 x SHKM-ALUM

    Hybrid keep

  • 1 x 3020-HYB-A2

    Pair of stainless steel cover shields
