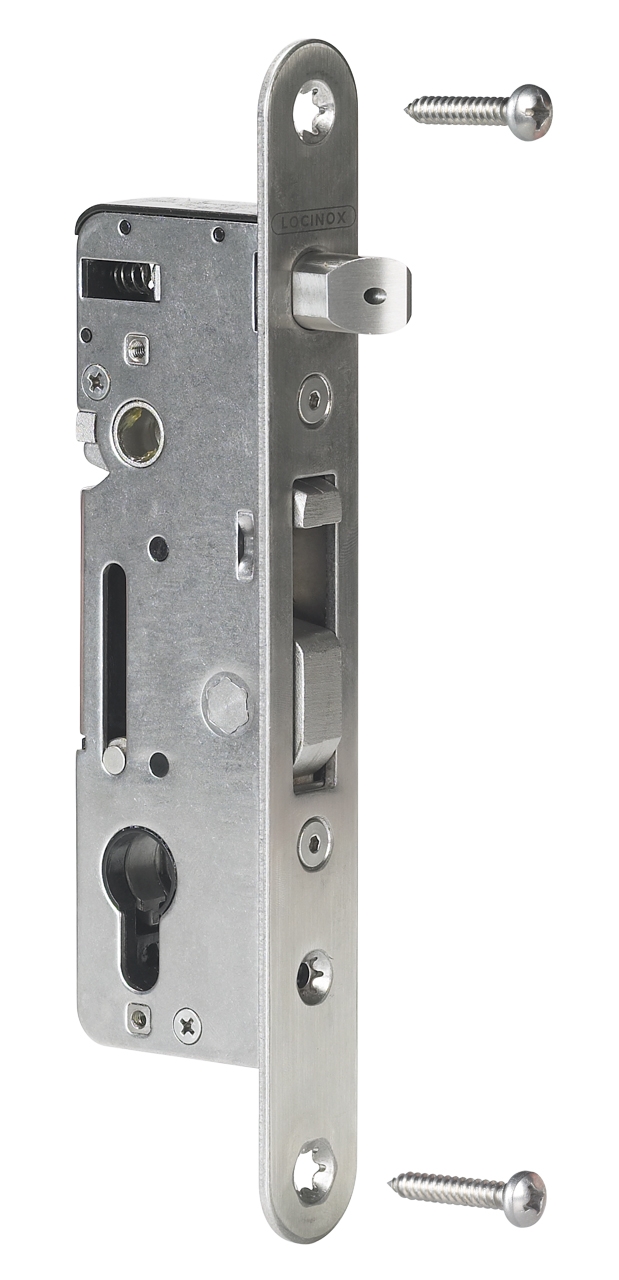

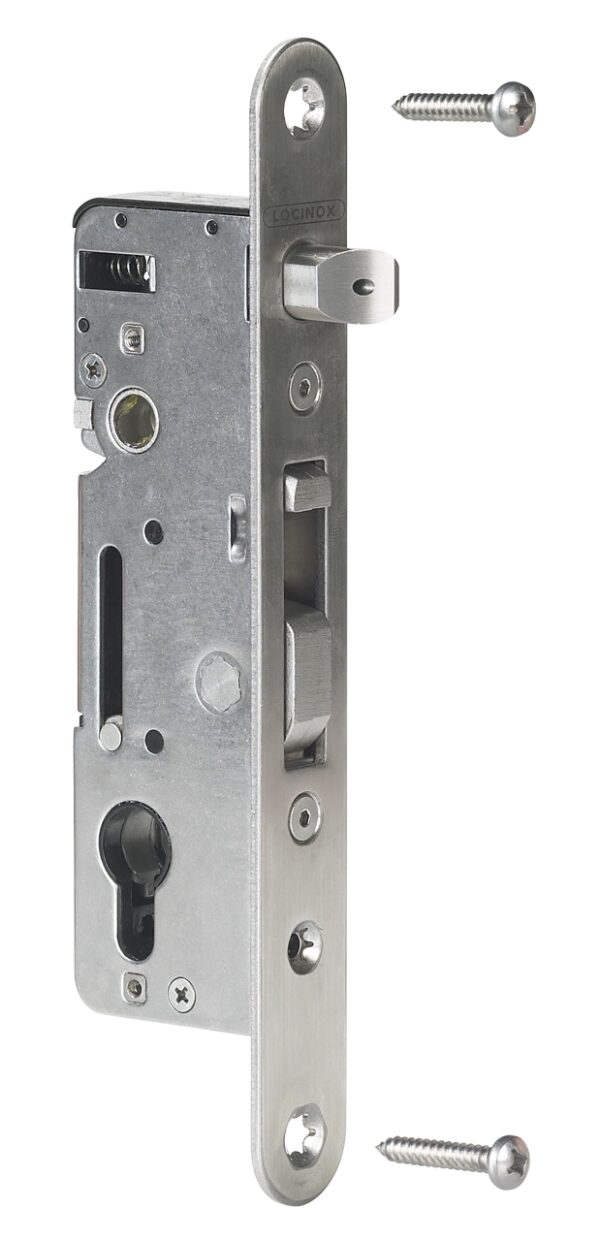

Locinox H-METAL Insert lock

Product Code: H-METAL

The H-METAL insert lock is designed to be applied to metal or aluminium gates. Ideally installed on steel profile.

The stainless steel hook and adjustable latch bolt makes this a one of a kind lock. The combination of the hook (dead bolt) with the corresponding keep provides a secure anchoring of your gate.

Insert lock only, kits available with keeps and eurocylinder.

View more
inc VAT

ADDITIONAL INFORMATION

  • Easy left or right changing of the self-latching daybolt
  • Key-operated self-latching bolt
  • Adjustment of the latch bolt up to 20 mm continuous without dismounting the lock
  • All components manufactured from stainless steel
  • Throw of the hook is 33 mm
  • Center-distance cylinder <=> handles = 92 mm
  • Hook in combination with the Locinox keep provides a secure anchoring
  • With coverplate for lock mechanism against dirt penetration
  • Compatible with Europrofile cylinder (not included with lock)
  • Kits available with handles, eurocylinder, keep and covershield.

SPECIFICATION

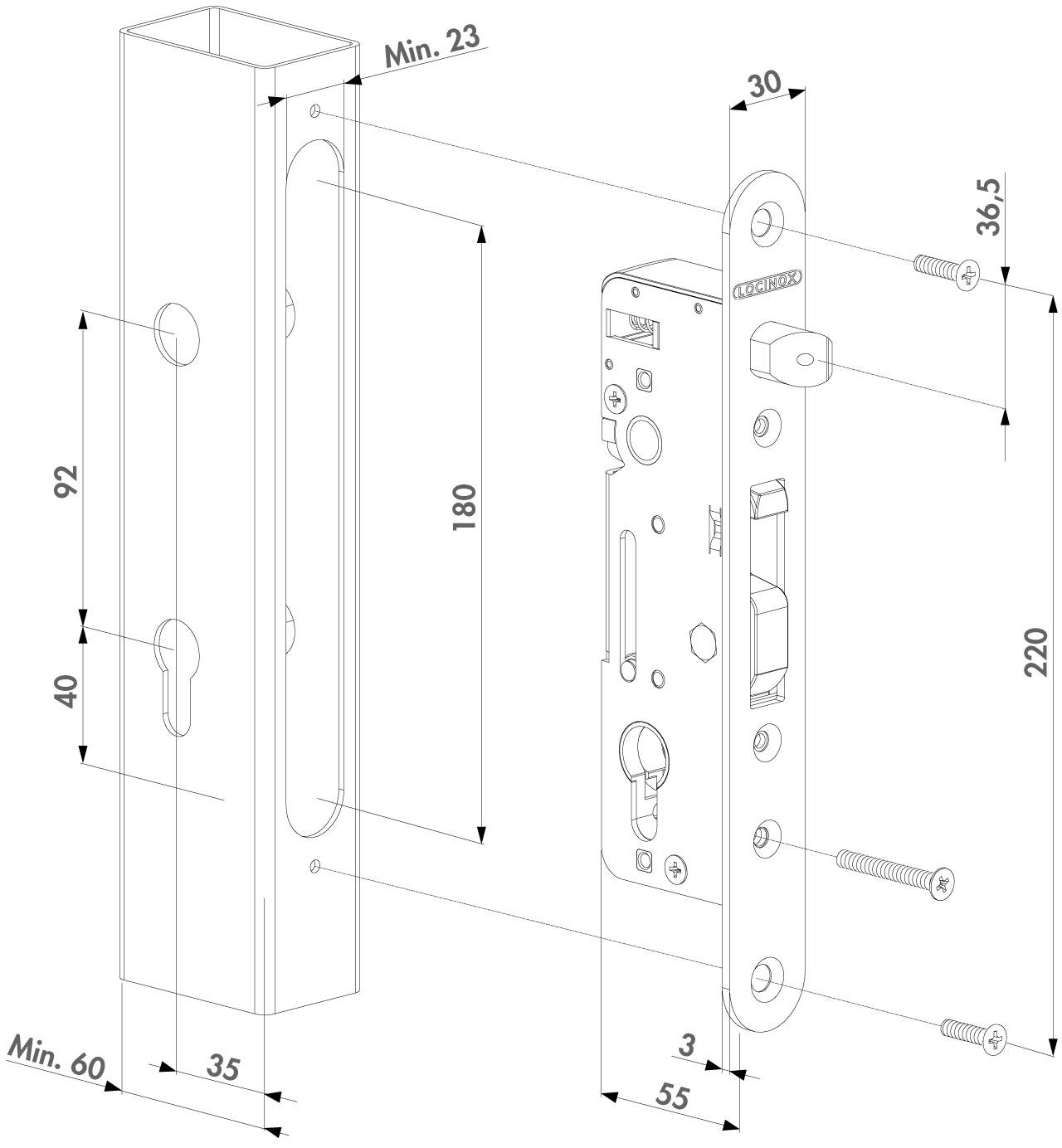

H METAL Dimensions 1280px

This kit contains:
