Eightylock 1

Locinox Eighty lock for profiles of 80mm insert lock

Product Code: EIGHTYLOCK

The Locinox Eighty insert lock is manufactured with 100% stainless steel mechanisms. Ideal for the discreet and sleek finish to suit your gates as well with long lasting quality! Designed for 80mm box section profile.

The stainless steel adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open.

The lock can be installed on metal, aluminium and PVC gates. Thanks to the patented "Click-It" system, installing the lock can be done in a matter of seconds.

View more
inc VAT

Related Products (3)

Locinox Forty lock for profiles of 40mm insert lock

Locinox Forty lock for profiles of 40mm insert lock

Product Code: FORTYLOCK
inc VAT
View More

ADDITIONAL INFORMATION

    • Stainless steel lock mechanism with cover plate against dirt penetration
    • All mechanisms manufactured from stainless steel
    • Backset is 60 mm, for mounting in profiles of 80 mm depth
    • Continuous adjustment of the daybolt for up to 10 mm without dismounting the lock box
    • Key-operated self-latching bolt
    • Easy left or right changing of the self-latching daybolt
    • Throw of the hook: 21 mm
    • Center-distance cylinder <=> handles = 92 mm
    • Compatible with all Europrofile cylinders
    • Kits available which include cylinder, keep, handle and polyamide covers

SPECIFICATION

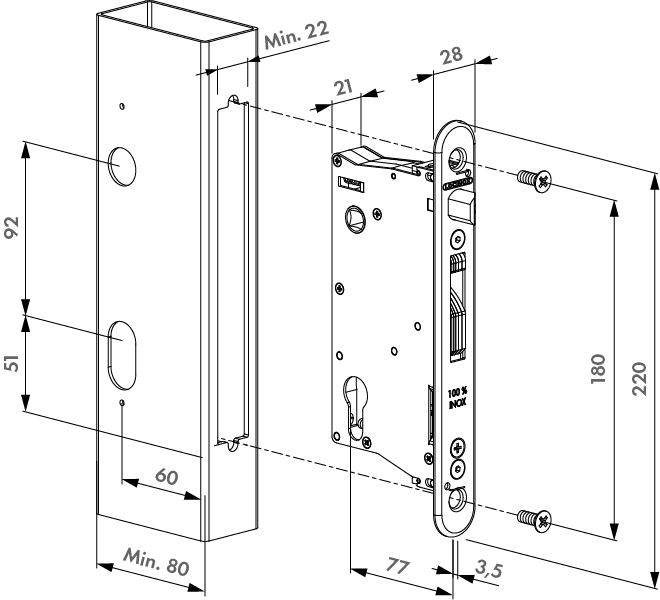

Dimension Drawing for standard application

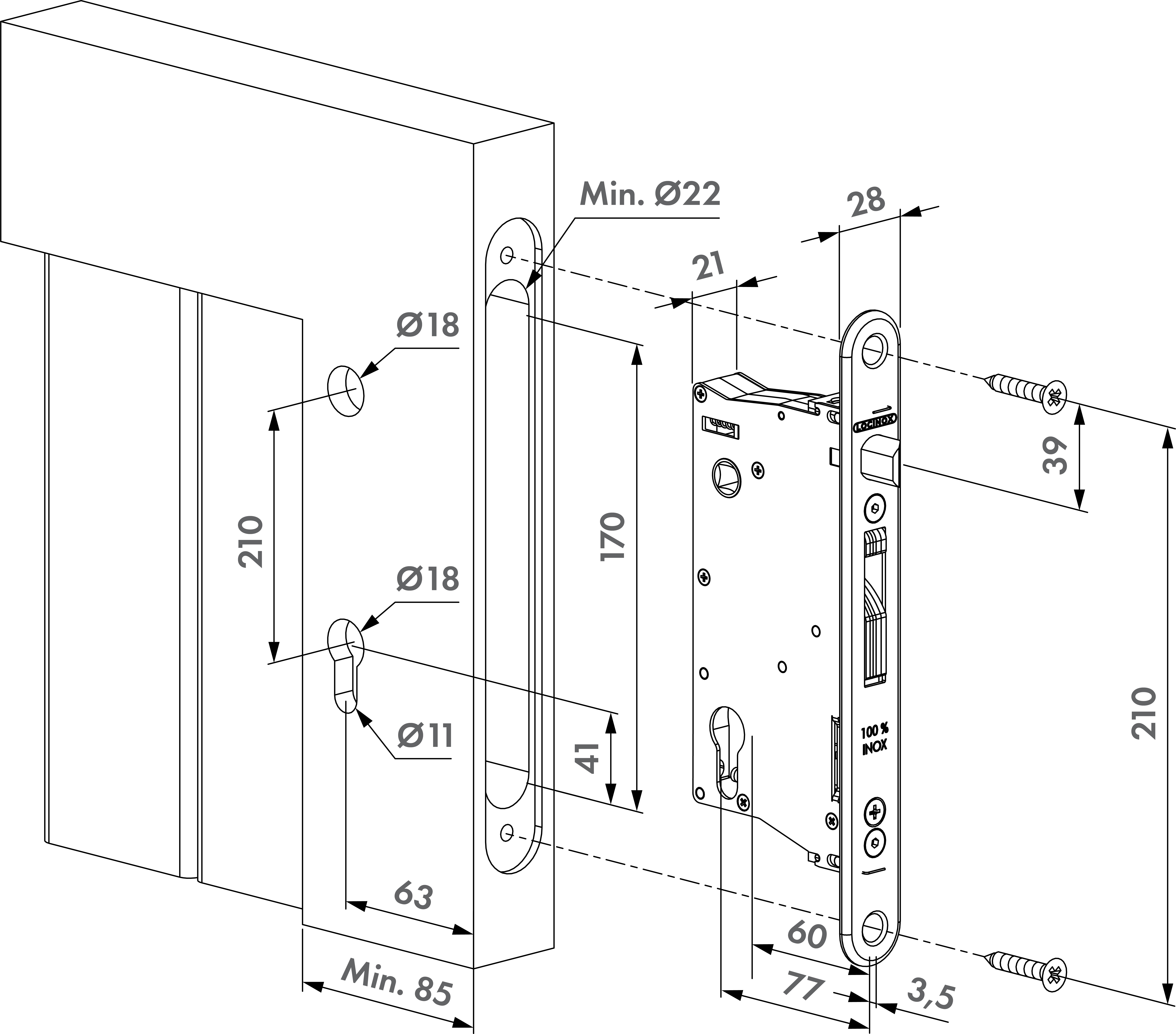

Dimension Drawing for Wooden gate application
