06 0143

Intratone 06-0143-EN 2 x Proximity reader kits with GSM module and 10 years Unlimited SIM

Product Code: 06-0143-EN

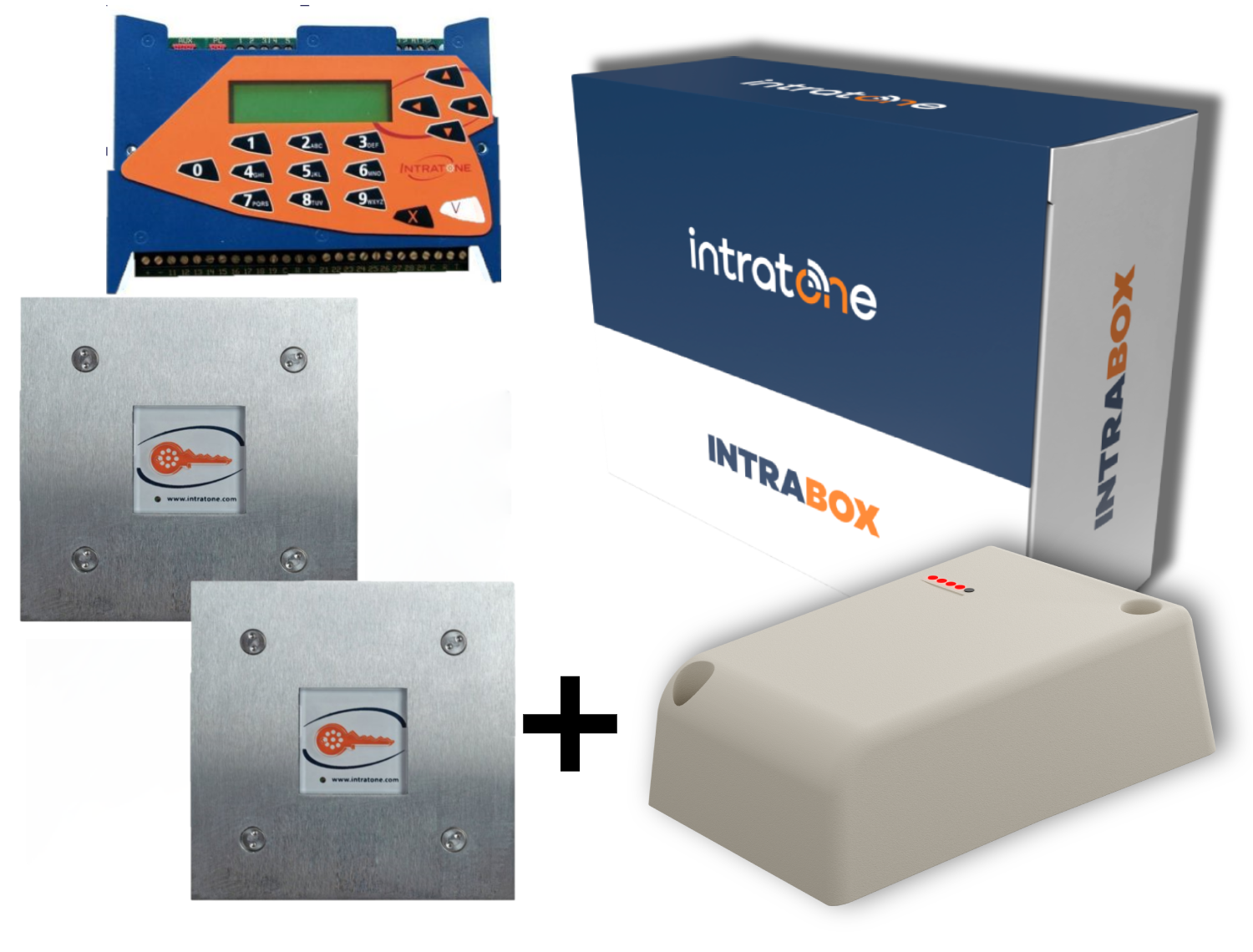

The Intratone 06-0131-EN is a proximity reader kit consisting of the 2 x 04-0106-EN Prox reader and 06-0129-EN GSM module with 10 years unlimited SIM.

The square proximity reader with MIFARE technology is for access control and is programmed with remote online management and programming via ww.intratone.info. Allowing updates and syncing remotely so a visit to site isn't needed.

Create, change or delete key fobs without recovering them or needing to visit the site.

The Intratone 06-0129-en is a 1 transmission GSM module with built-in HF receiver which allows a user to gain access via keyfobs and transmitters or by calling the unit at no-call cost.

View more
inc VAT

Related Products (2)

ADDITIONAL INFORMATION

As well as a standalone proximity reader it can be integrated with an existing intratone intercom.

PRODUCT FEATURES

  • Free access time slots available
  • Event log
  • Vandal resistant
  • Real time management programming via www.intratone.info
  • Maximum 2 doors managed
  • Compatible with MIFARE proximity fobs and transmitters
  • Up to 10,000 fobs/ master key fobs with relay card
  • Technical email alerts

Supplied as proximity reader and GSM Module only must be purchased with a back box. Compatible with:

12-0132 Surface mounted box - stainless steel finish (125.5 x 125.5 x 57mm)
12-0135 Flush mounted box - stainless steel finish (90.4 x 90 x 37mm)

SPECIFICATION

TECHNICAL SPECIFICATIONS

  • Dimensions 60 x 60 x18mm (Proximity reader)
  • Dimensions 162 x 96 x 53mm (GSM Module)
  • Weight 1.6kg
  • 2 Wires (1 twisted pair) Maximum distance 200m
  • Operating/Storing environment -20°C to 70°C
  • Power supply12/24V DC 2A
  • IP50 Rating

This kit contains:
