Hikvision Keypad module stainless steel

Compare selected products

DS KD KP S

DS KD KP S

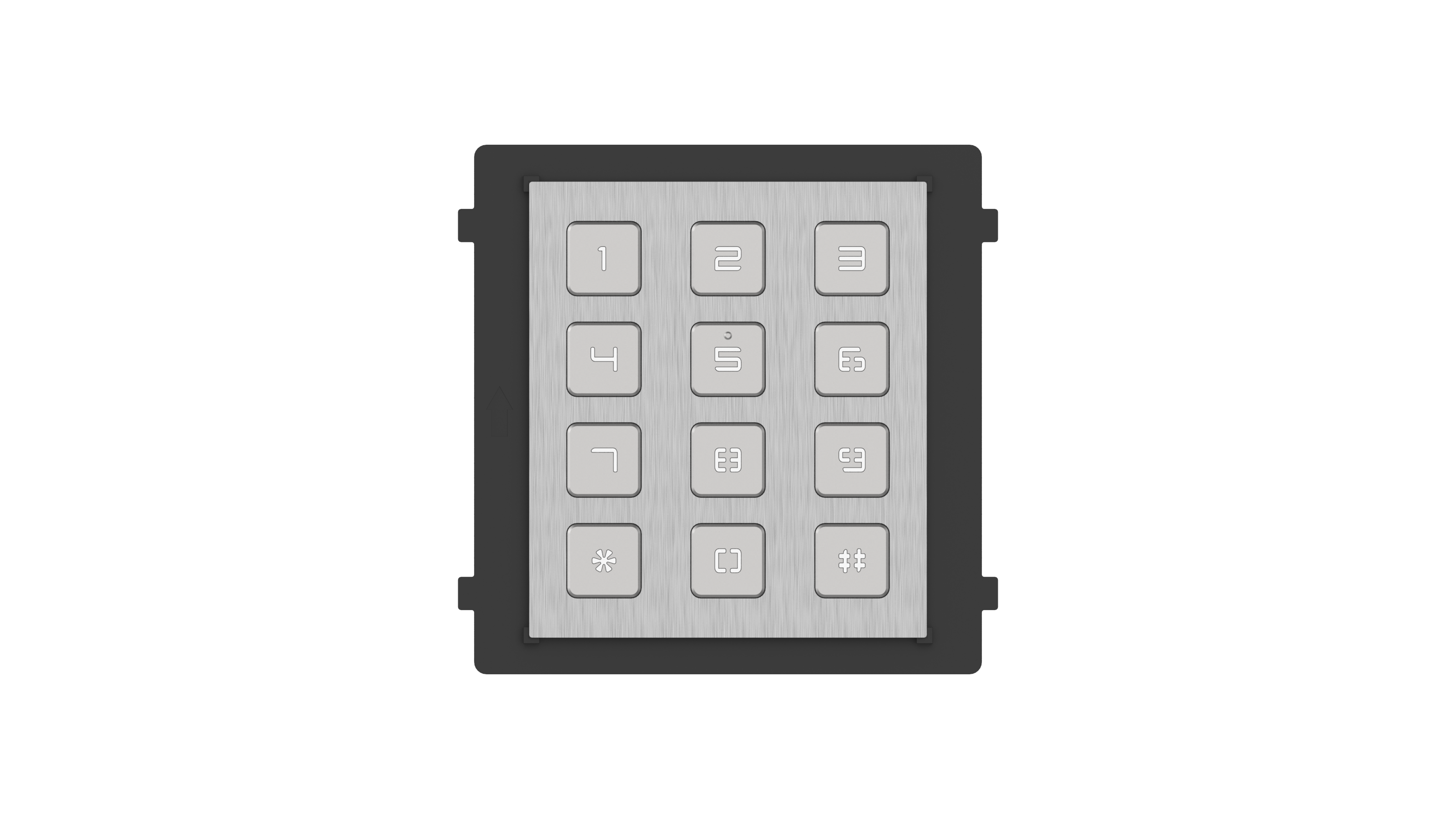

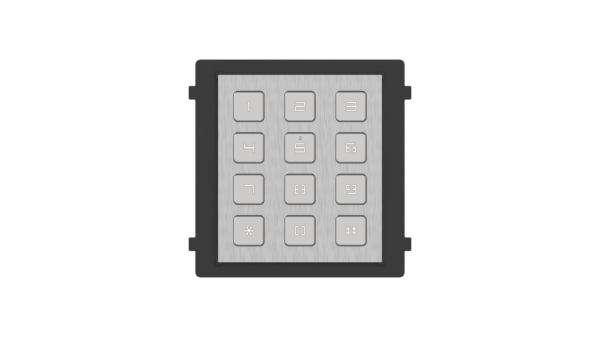

Hikvision Keypad module stainless steel

Product Code: DS-KD-KP/S

This Hikvision stainless steel module is a backlight keypad which can be incorporated with any Pro series IP or 2 wire intercom.

Related Products (1)

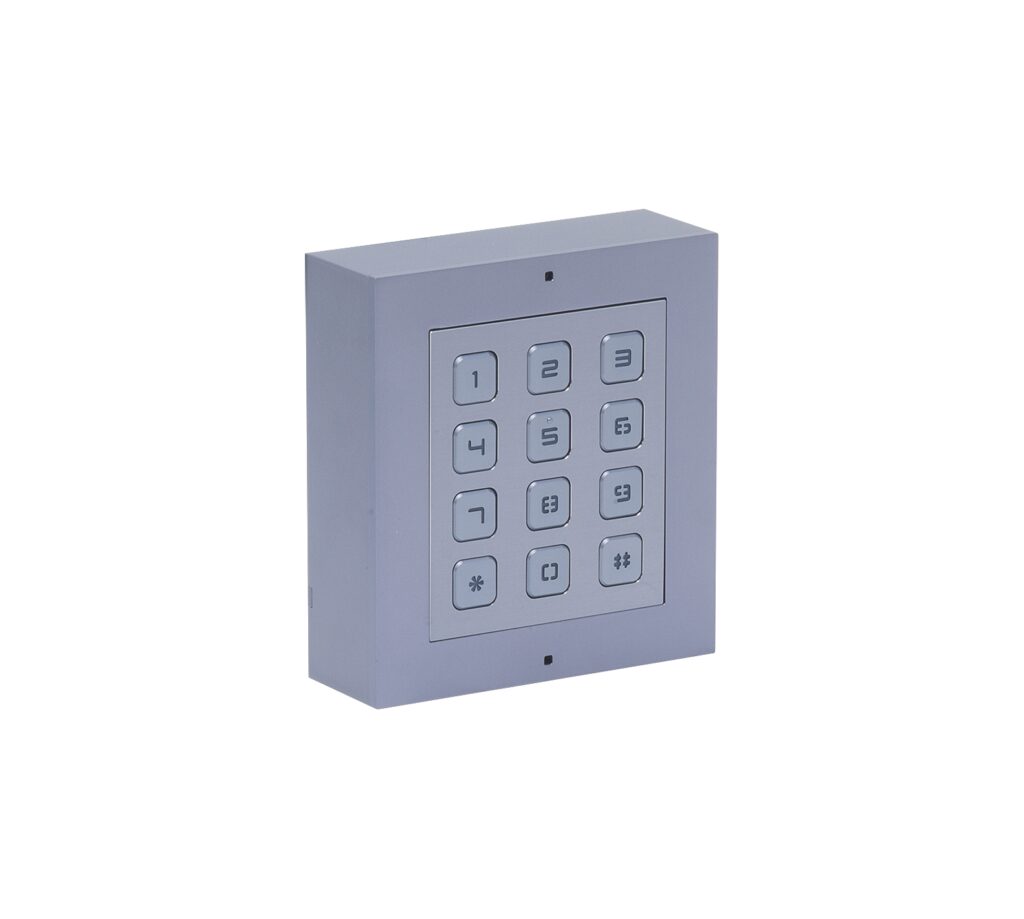

Hikvision Keypad module

Hikvision Keypad module

Product Code: DS-KD-KP

inc VAT

ADDITIONAL INFORMATION

Modular door station Keypad module, needs mounting bracket
Input pin code to open door, call indoor station
Backlight compensation
Easy to and extend

SPECIFICATION

TECHNICAL SPECIFICATION

Operating System Embedded Linux operation system
CPU Embedded MCU Processor
RS-485 1
Power Interface 1
Buttons 12
Installation Flush mounting, surface mounting
Protective Level IP65, IK7
Working Temperature -40° C to +55° C(-40° F to 131° F)
Working Humidity1 0% to 95%
Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Application Environment Outdoor
Power Consumption 1 W

DS KD KP Dims

MANUALS

This kit contains:

OPTIONAL ACCESSORIES
