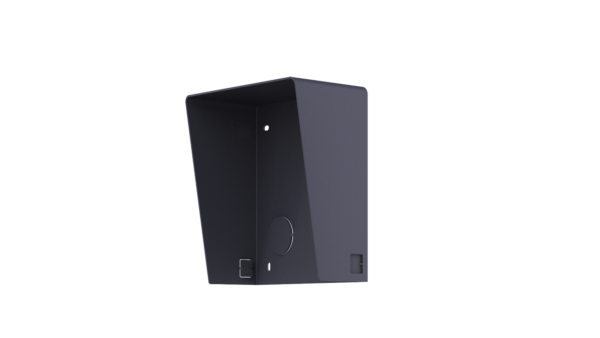

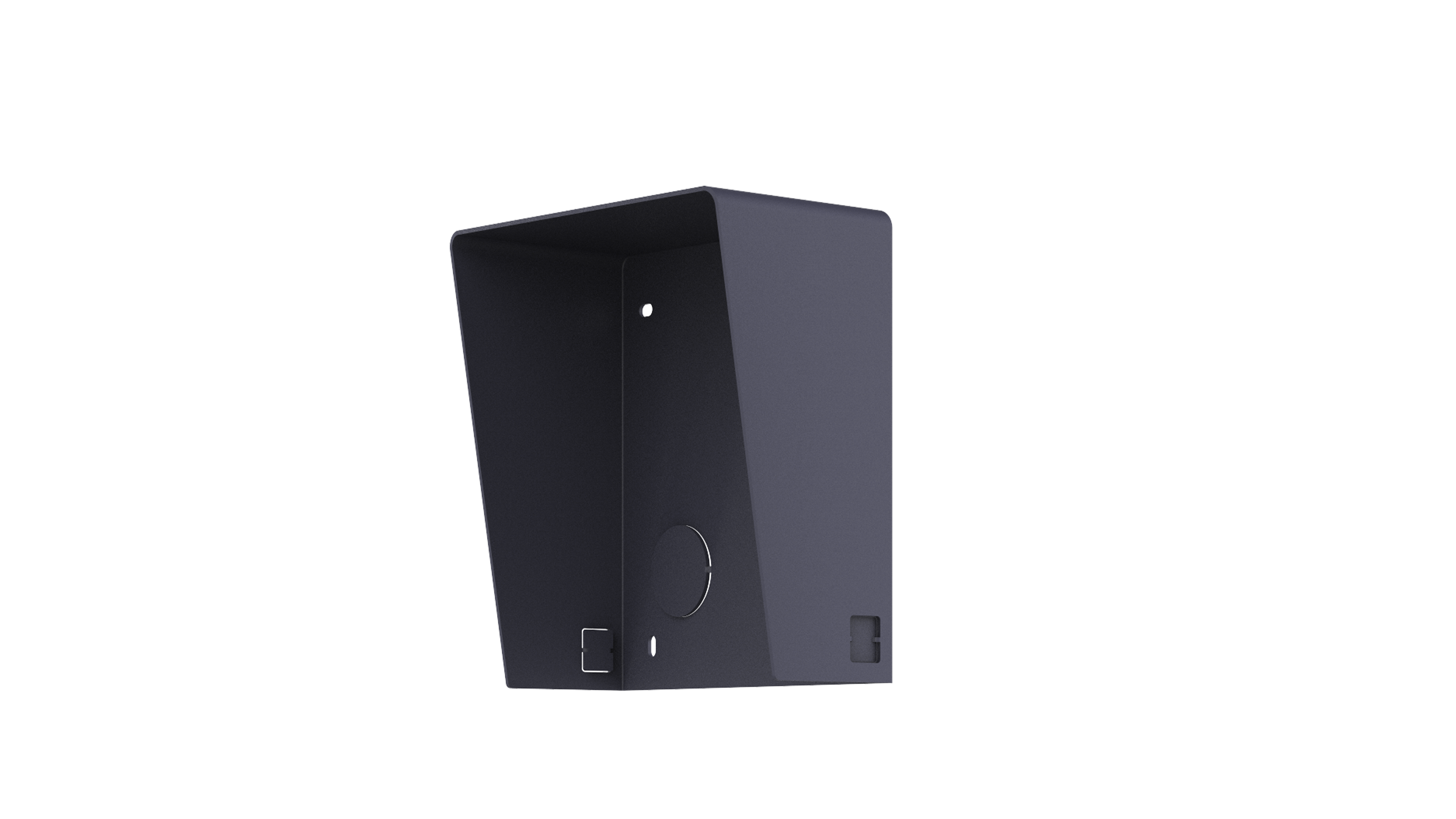

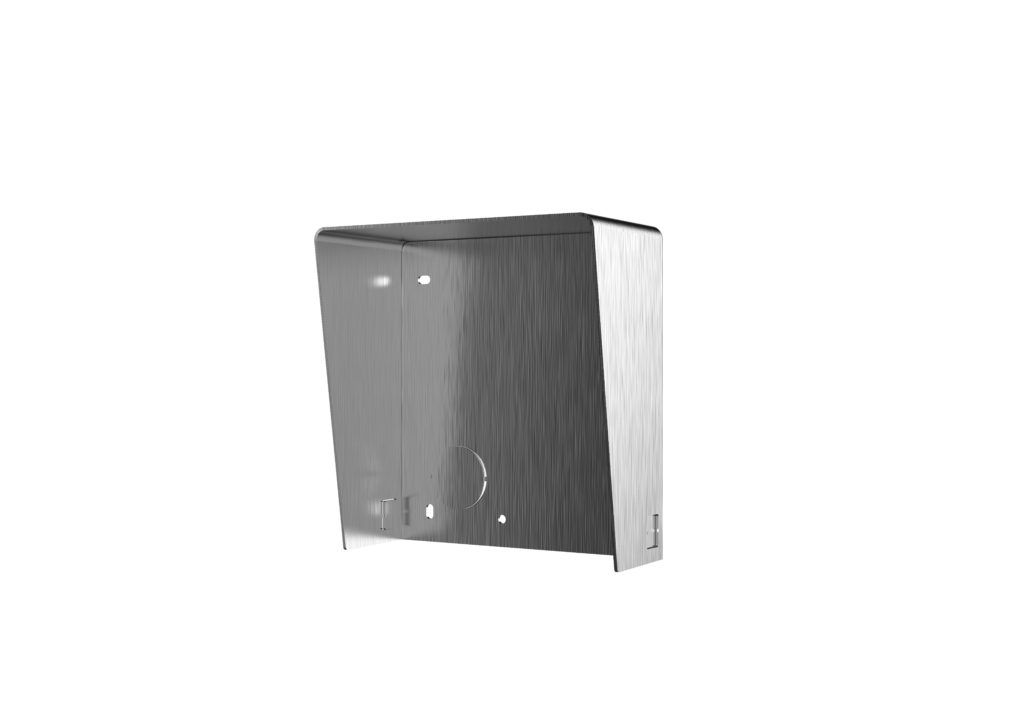

Hikvision 1 module rainshield

ADDITIONAL INFORMATION

1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed level via measuring with the gradient. Drill 4 holes align to the screw holes on the sticker.

The suggested size of hole is 6 (diameter) × 25 (depth) mm.

2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.

3. Connect the cables to the corresponding interfaces of the main unit and insert it into the frame.

4. Use the hexagon wrench in the package fix the cover onto the frame.

SPECIFICATION

TECHNICAL SPECIFICATION

• Dimension (W × H × D) 122x 116.4×58 mm (4.80" x 4.58" x 2.28")
• Working Temperature- 40° C to +60° C (-40° F to 140° F)
• Working Humidity 10% to 95%
