CDVI Wall mounted magnetic door holder

ADDITIONAL INFORMATION

Wall mounted door holder to keep doors in the open position, which are released under fire conditions. Up to 50kg holding force and 24Vdc, ideal for hotels, hospitals and public buildings.

Each VIR door holder is fail safe to ensure full compliance and EN1634-2 Fire rating certified. Equipped with a test button to easily check the operation.

SPECIFICATION

TECHNICAL SPECIFICATION

• Fail safe

• Holding Force 50kg
• Surface mounted
• Tested for 25,000 cycles in manual and electrical activation each
• Power : 24Vdc 80Ma
• IP42 Rating
• IK10 Rating
• NFS 61-937 Fire Rating
• White powder coated Zamak

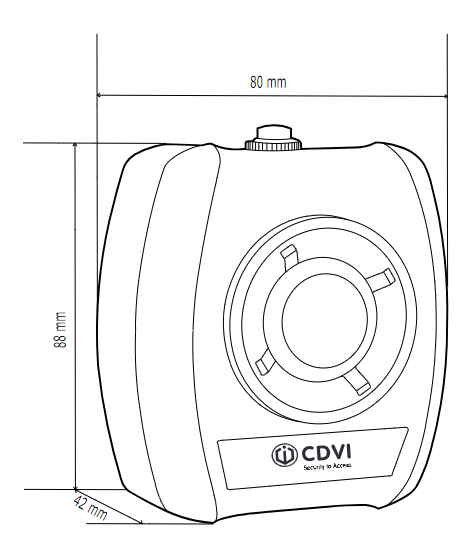

Dimensions:

• Product Height 93mm
• Product Width 80mm
• Product Depth 42.5mm
• Armature Plate 60 / 60 / 66 / Diam. 51.5
• Product Weight 0.46kg
