ADDITIONAL INFORMATION
DIGIWAY is a reliable, durable, and aesthetic solution for improved mobility in a wide range of environments, backed by a 2 year CDVI warranty.

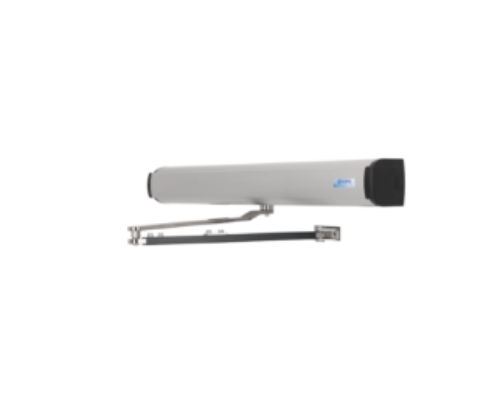

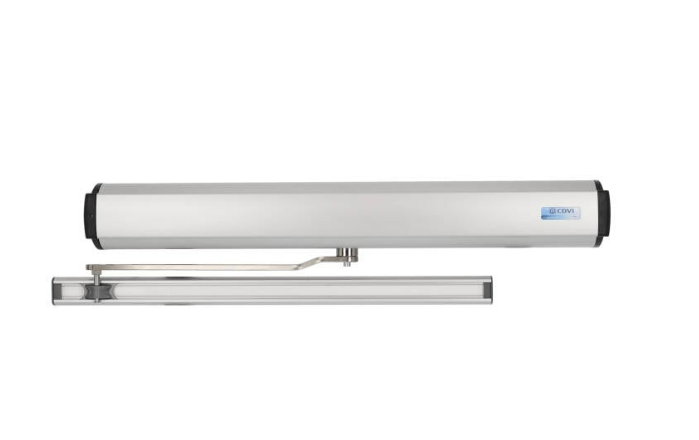

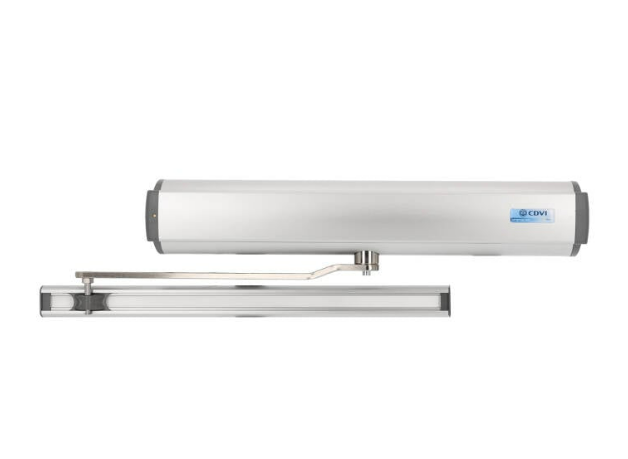

The DIGIWAY Spring return is a fully automatic motor-return door operator designed for high traffic and intensive use doors . Designed to combine ease of installation with discreet yet efficient operation, DIGIWAY Plus is suitable for people with reduced mobility under SENDA, whether a care home or for hygiene facilities.
No cables on either side of the motor for a sleek aesthetic solution to suit your installation. The Digiway is a compact electric motor for quiet, discreet operation whilst improving security with access control integration. The built-in radio receiver ensure a seamless & wireless activation of the door. DIGIWAY door operators can be ordered with an optional built-in Bluetooth module for simple programming using DIGIWAY BLE smartphone app
The DIGIWAY SR door operator is certified to withstand fire for up to 60 minutes under the EN1634-1 standard. The operator can also be easily connected to fire signals to automatically respond in an emergency. The door can be set to lock, unlock, close, or swing freely in the event of a fire.
Digiway kits are available and designed to comply with EN16005 standard under the Machinery Directive. These include signage, finger guards and safety sensors. These regulations cover a range of different factors to be considered when evaluating a site for installation suitability. For full training on EN16005 regulations, installers should contact the ADIA or ADSA. The factors covered by the EN16005 regulations include (but are not limited to): safety signage, emergency provisions, safety barriers, and sensors.
Main features
• Operating modes: Fully automatic, Semi-automatic, Always open, Door free;
• Operating with single door, double door, with or without leaf overlap;
• Guided procedure for door travel limit settings;
• Remote controls memorisation and management;
• Slow motion approaching the limits;
• Push & Go / Pull & Go function;
• Adjustable Pause Time, max Closing Speed, max Opening Speed, Closing final speed;
• Opening Jolt fully adjustable;
• Status tricolor LED (red - orange - green);
• Adjustable electrolock hold time and torque;
• Adjustable opening Jolt parameters;
• Adjustable Stop photocells;
• “Fire mode”;
• Night / Day mode;
• Door open output relay.
• Cycles counter;
• Obstacle log register (20 logs)
SPECIFICATION
Heavy duty door operator
60 minutes fire rated - EN1634-1
Semi-automatic (spring return) & Fully automatic (motor return)
Compatible with CDVI transmitters - up to 50 capacity
Bluetooth plug-in for programming via smartphone app
Power supply: 230Vac, 50Hz
Motor power: 100W
Motor voltage: 24Vdc
Temperature : -10°C to 55°C
Power for electrolock: 12Vdc / 1A max or 24Vdc / 0.5A
Rating: IP40
Cycles: Tested for 500,000 cycles
