ELIG00 exit only in-ground wireless detector. Uses innovative magnetometer sensors to detect the presence of oncoming vehicles, up to 50m range and 10,000kg static load limit.
Designed to be flush mounted in the ground for commercial use
View moreAll Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power.
The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles.
These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode.
The sensors are installed in the ground foundation of entry or exit passages with Lithium batteries and can withstand almost any vehicle.
Note: Gate or door controller must have a dedicated open input and auto close function enabled
Quick and easy installation.
Dual sensing technology
High security 128 bit encryption.
Recesses into driveway.
Not affected by ground movement.
14500 mA battery giving up to 10 years battery life.
Top access for changing battery.
Installation in 3 simple steps
1 - Code in e-Loop.
2 - Core bore 89mm hole 70mm deep and secure using flexible mastic.
3 - Calibrate the e-Loop... and you’re ready to operate in less than 30 minutes.
Frequency : 433.39 MHz
Security : 128-bit AES Encryption
Range : Up to 50 metres
Battery Life: Up to 10 years
Battery type: 14500 mA battery
IP68 Rating

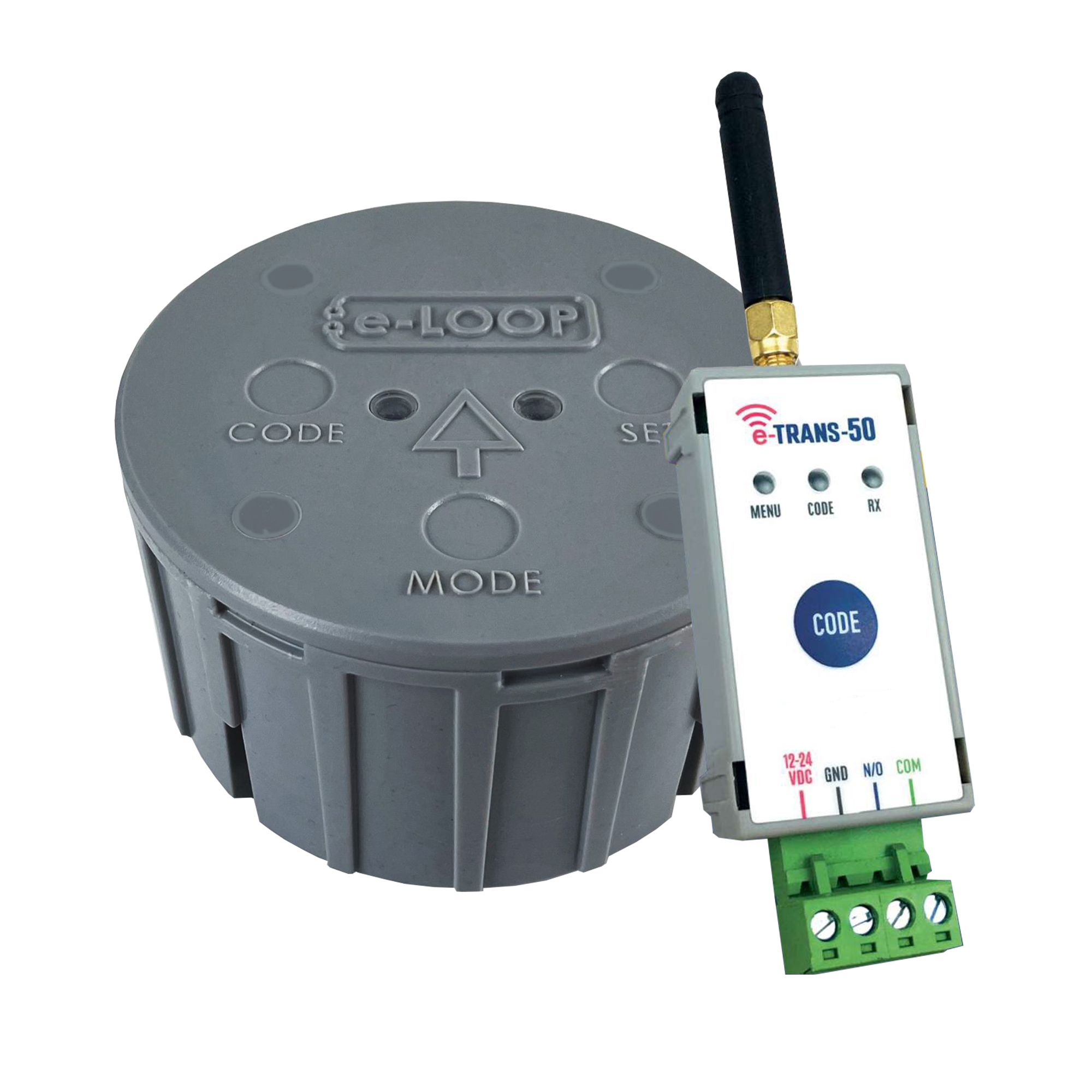

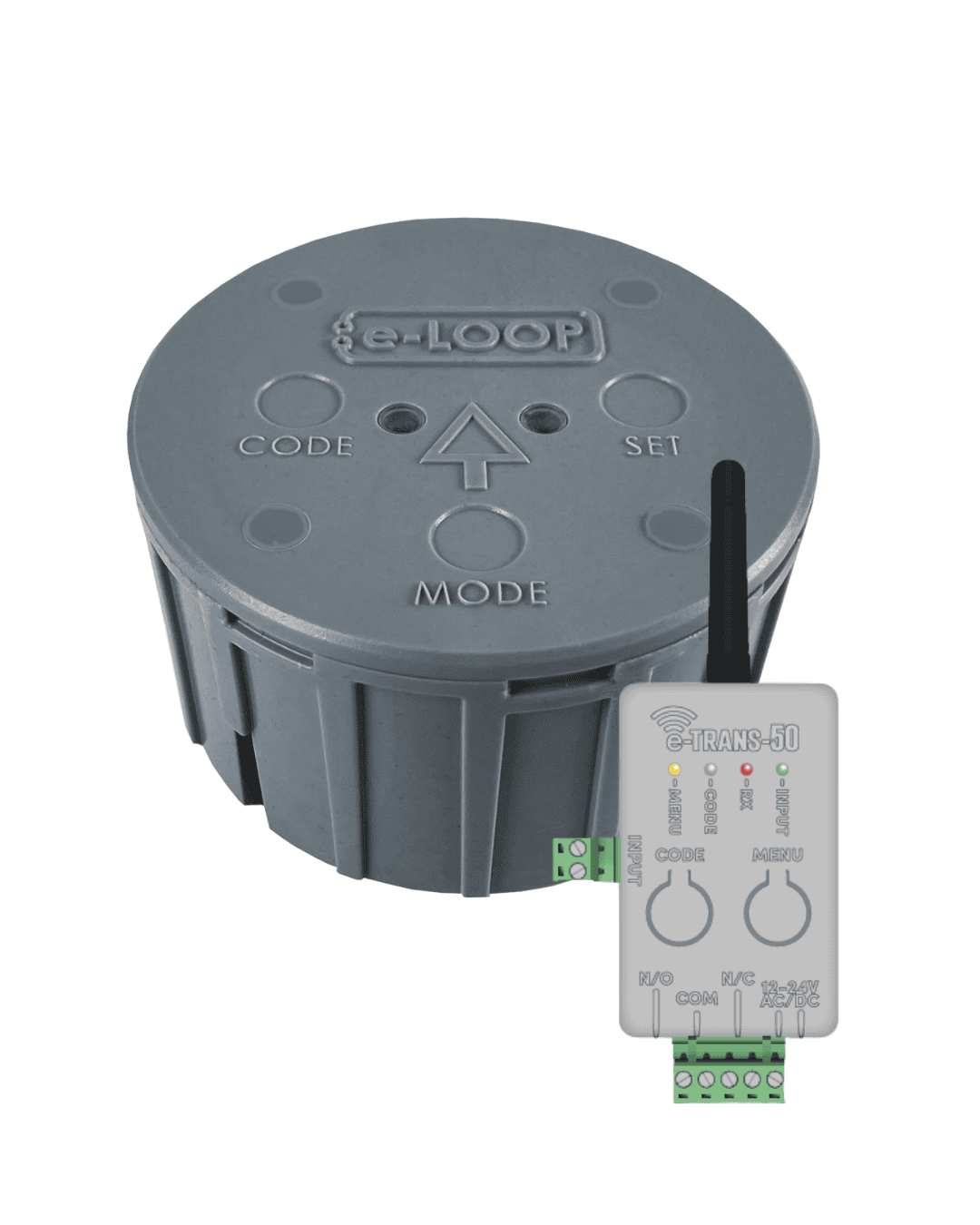

E-Loop Commercial in ground loop only - exit mode

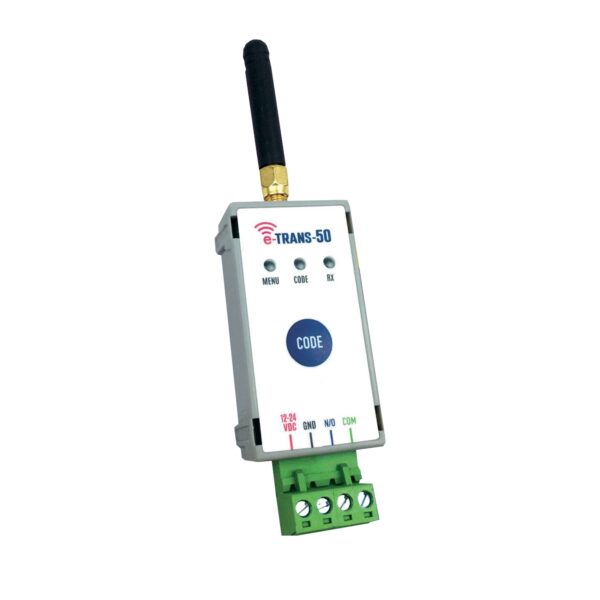

E Loop 50 Transceiver
Fixing Bolts
