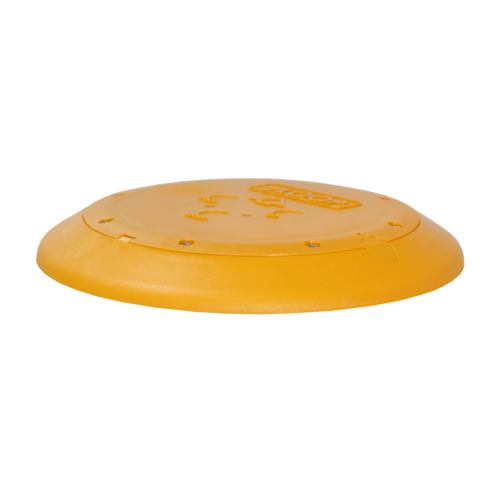

The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles, up to 50m range and 10,000kg static load limit.
Designed to be bolted to the ground surface for commercial use, with no need for extensive groundworks, saving time and cost.
View more
All Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power.
These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode.

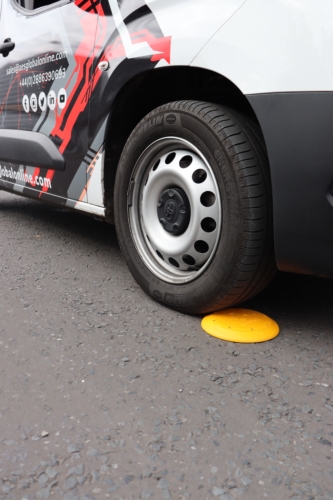

The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.
Note: Gate or door controller must have a dedicated open input and auto close function enabled
Quick and easy installation.
Installation in 3 simple steps
1 - Code in e-Loop.
2 - Secure e-Loop to the driveway.
3 - Calibrate e-Loop and you're ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.
Functions / Features
Lower power consumption
3-axis magnetometer for vehicle detection
• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode
Fast and simple installation
• Quick non-permanent installation
• Compact design
• Compatible with various gates
Reliable radio communications with transceiver
• Reliable radio communication
• High security 128-Bit AES Encryption
