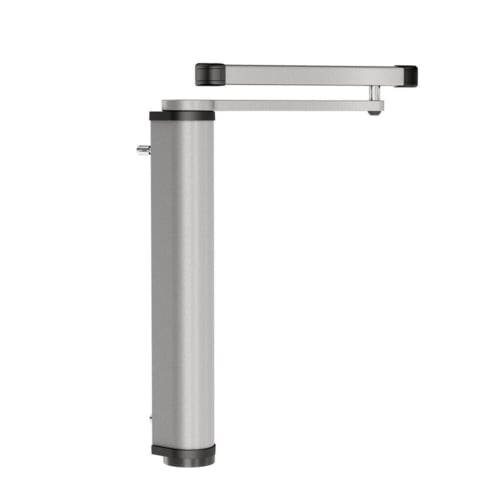

Locinox VENUS-S Silver motorised pedestrian gate closer

ADDITIONAL INFORMATION

The Venus gate motor is designed for the automatic opening and closing of pedestrian swing gates and outdoor use.

Suitable for gates up to 100kg and 1.4m width, the maximum opening angle is up to 175° but requires a VENUS-RAIL additional arm.

This is a reversible motor, for fully automatic opening, an electric lock or electric dropbolt is required. Otherwise, it is to be used in combination with a standard swing gate mechanical lock. The operating speed is limited to low-energy settings according EN16005 and ANSI 156.19 standards.

‘Locinox’ installation app is required for initialization and programming of the closer, with a step by step guide.

The closing speed and motor force can be adjusted with an opening resistance of 15Nm.

For gate profiles of minimum 80mm, if 60mm or for a wall the VENUS-ADAPTERPLATE is available.

SPECIFICATION

TECHNICAL SPECIFICATION

• Power supply (V) - 110 - 240V AC (50/60Hz)
• Motor voltage (V) - 24 V DC
• Nominal power/ excl output power (W) - 30 W
• Max power (W) - 150 W
• Max motor torque (Nm) - 150Nm
• Operating temperature range (°C) -30°C TO 70°C
• Opening time to 90° - >4 seconds
• Protection - IP54
• Weight - 6.5kg
• 3 programmable inputs:
  •Activation device (N.O.)
  •Safety device (N.C. / 8K2)
• 3 programmable outputs:
  •Electric lock (Fail Open / Fail Close)
  •Flashlight / light with timer
  •24V DC AUX
  Total output power: max 2
