Stoppy B 115 500

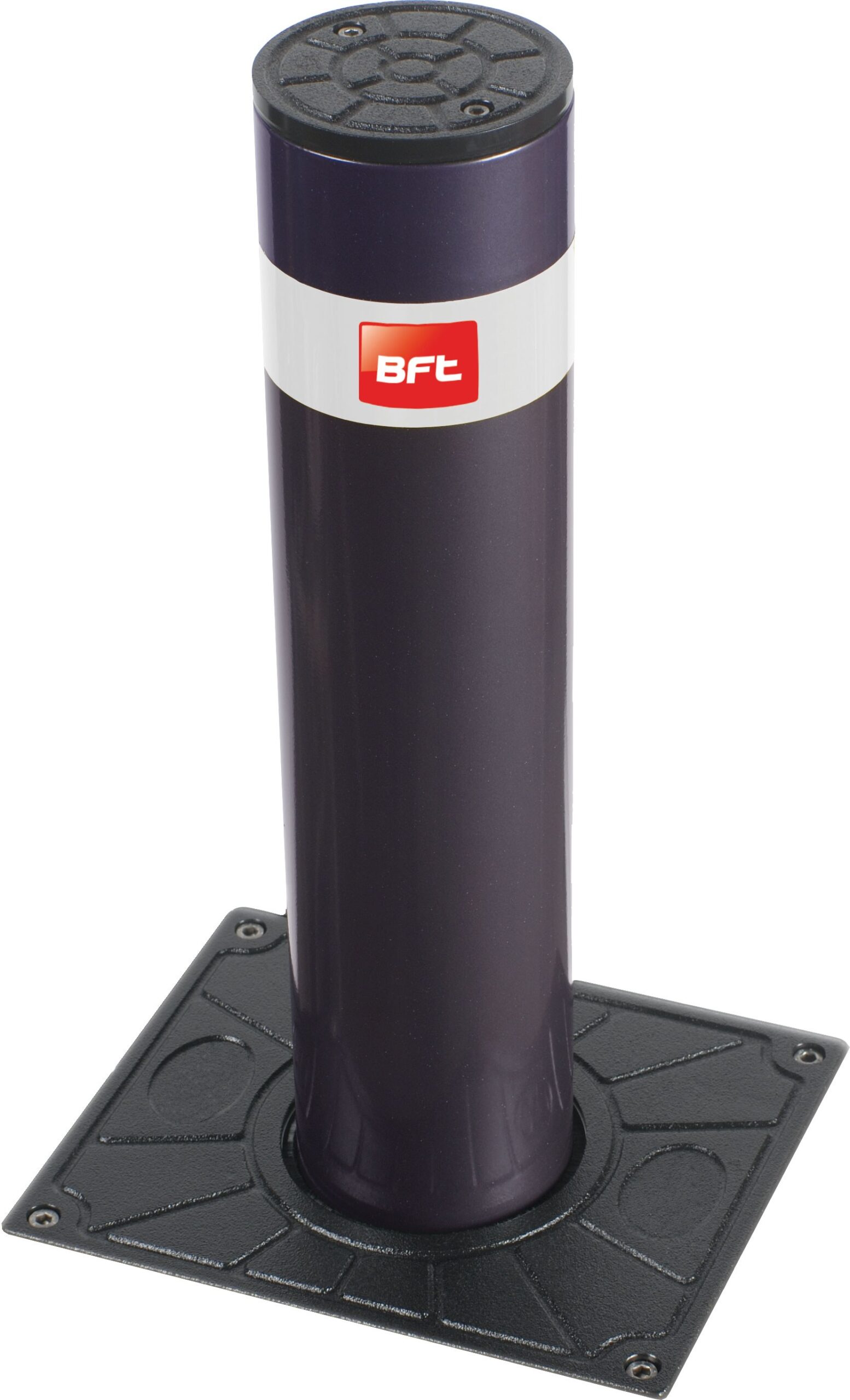

BFT STOPPY B 500mm electro-mechanical automatic rising bollard

Product Code: STOPPYB500

Designed for domestic driveway installations to control access and provide security to property and buildings, the BFT Stoppy B 500 is a simple, ready to install and value for money automatic rising bollard.

Options for controlling the bollard are:

  • The Mitto transmitter which can be programmed straight in using the built in receiver (sold separately)
  • Loop detectors for vehicles (sold separately)

Single bollard unit only

View more
inc VAT

Related Products (1)

ADDITIONAL INFORMATION

Overview:

  • Guarantee: 2 years
  • Opening/closing time: 7 seconds
  • Usage: semi-intensive

Installation:

  • Requires a 230v power supply to each panel
  • Foundation depth Min 1200mm (including 125mm for drainage) x 800mm x 800mm to be concreted below ground with adequate drainage
  • High water areas may experience slow water drain-off
  • Not recommended for sites prone to regular flooding
  • PERSEO CBD Control panel: Maximum of 4 bollards in parallel on the same system
  • Distance between bollards should be 1-1.5 metres

SPECIFICATION

technical design STOPPY B
Control unitPERSEO CBE
Power supply230 V
Power consumption300 W
Opening or closing time7 s
Rod height500 mm
Rod diameter115 mm
Type of limit switchREED magnetic sensor
SlowdownYes
Impact resistance6000 J
Break-in proof60000 J
Manual cyclereversible in the absence of voltage
Frequency of useSemi intensive
Protection ratingIP67
Environmental conditions-20 ÷ 60 °C
U-Linkno

Imperial measurements

The data shown are for information purposes only.

Control unitPERSEO CBE
Power supply230 V
Power consumption300 W
Opening or closing time7 s
Rod height19.68505 inch
Rod diameter4.5275615 inch
Type of limit switchREED magnetic sensor
SlowdownYes
Impact resistance6000 J
Break-in proof60000 J
Manual cyclereversible in the absence of voltage
Frequency of useSemi intensive
Protection ratingIP67
Environmental conditions-4 ÷ 140 °F
U-Linkno
