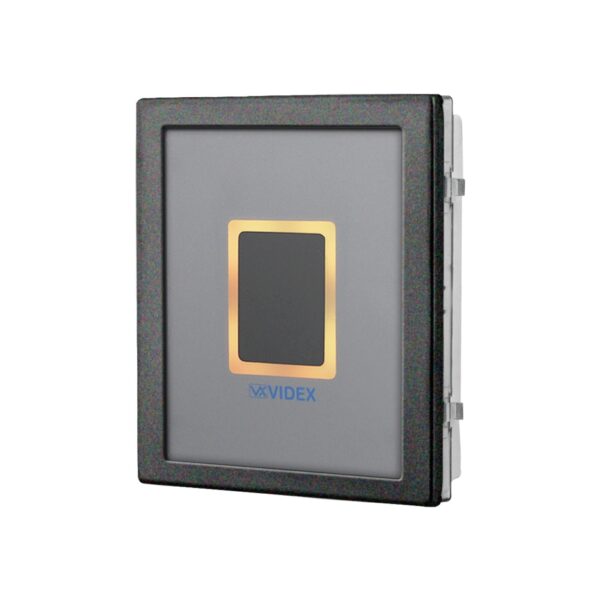

Videx 4849WS4 Mifare proximity reader module for the WS4 web access system - Gun metal grey finish

ADDITIONAL INFORMATION

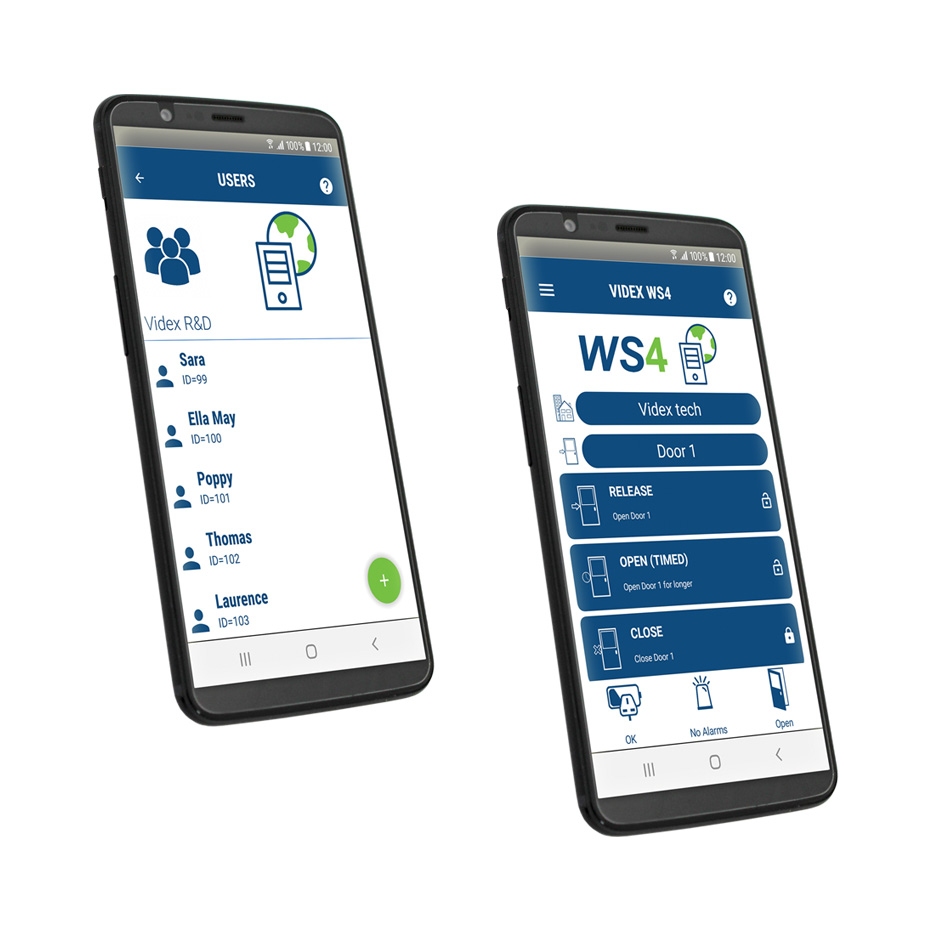

The 4949WS4 is a Mifare proximity reader with RS485 bus for use with the WS4 Web Access System, and is capable of reading Mifare Classic 1K and 4K cards and fobs. Programming configuration & setup is carried out via the RS485 bus connection to a local WS4 control cabinet and using the WS4 Web Access software. Remote connection to the WS4 Web Access software is achieved using a standard web browser (Chrome, Safari, Opera, Microsoft Edge or Firefix) where the system can be accessed and managed from anywhere in the world with an internet connection.

They are compatible with the full range of 4000 series surface and flush back boxes.

Features

• Available in 3 different finishes - mirror stainless steel, matt 316 grade stainless steel or gun metal grey
• Modules are compatible with both surface & flush 4000 series back boxes
• Can also be integrated with an audio or video system
• Can be connected to an access control CPU (4849PP and 4849WS4)
• Programmable relay time and push to exit input (4849MI)
• RS485 bus connection (4849MI and 4849WS4)

SPECIFICATION

Technical:
4849WS4:

• System – WS4 Web Access
• Compatible Controllers – 1 door WS4CU1/WS4CU1-4G cabinet, 2 door WS4CU2/WS4CU2-4G cabinet and 4 door WS4CU4/WS4CU4-4G cabinet
• Power – 9 – 14Vdc (supplied by local controller)
• Power consumption – 130mA (max.)
• Status LED indication: Tri-colour halo LED (amber = standby/data, green = access granted, red = access denied) and internal sounder
• Read range – 6cm with operating frequency 13.56MHz
• Protocol – Mifare (compatible with Mifare Classic, Ultralight and Desfire cards)
• Dimensions (mm) – 103 (W) x 120 (H) x 30 (D)

Mifare Fobs and Cards:

• PBX-1E-MS50 – grey, ABS Mifare keyfob, 1K memory
• PBXB-1E-MS50 – blue, ABS Mifare keyfob, 1K memory
• PBXBK-1E-MS50 – black, ABS Mifare keyfob, 1K memory
• PBXG-1E-MS50 – green, ABS Mifare keyfob, 1K memory
• PBXR-1E-MS50 – red, ABS Mifare keyfob, 1K memory
• PBX-2-MS50 – white, 0.75mm thick ISO Mifare card, 1K memory
• PBX-2-MS70 – white, 0.75mm thick ISO Mifare card, 4K memory
