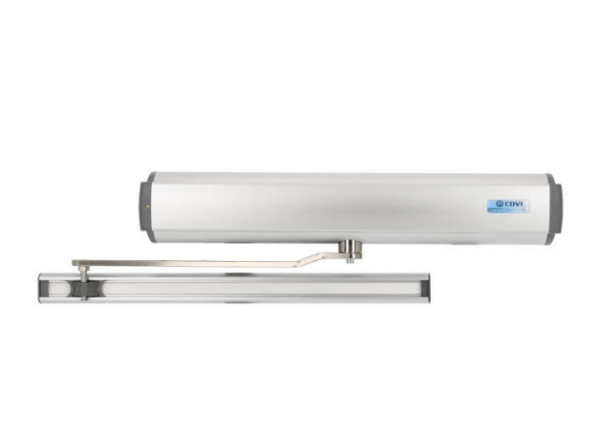

CDVI DWPS102U Digiway Plus with universal arm for single door

ADDITIONAL INFORMATION

DIGIWAY is a reliable, durable, and aesthetic solution for improved mobility in a wide range of environments, backed by a 2 year CDVI warranty.

The DIGIWAY Plus is a fully automatic motor-return door operator designed for residential and low-traffic installations. For other applications, the DWSR102U Spring return operator is available. Designed to combine ease of installation with discreet yet efficient operation, DIGIWAY Plus is suitable for people with reduced mobility under SENDA, whether a care home or for hygiene facilities.

No cables on either side of the motor for a sleek aesthetic solution to suit your installation. The Digiway is a compact electric motor for quiet, discreet operation whilst improving security with access control integration. The built-in radio receiver  ensure a seamless & wireless activation of the door. DIGIWAY door operators can be ordered with an optional built-in Bluetooth module for simple programming using DIGIWAY BLE smartphone app


Digiway kits are available and designed to comply with EN16005 standard under the Machinery Directive. These include signage, finger guards and safety sensors. These regulations cover a range of different factors to be considered when evaluating a site for installation suitability. For full training on EN16005 regulations, installers should contact the ADIA or ADSA. The factors covered by the EN16005 regulations include (but are not limited to): safety signage, emergency provisions, safety barriers, and sensors.

SPECIFICATION

Compatible with CDVI transmitters - up to 50 capacity

Bluetooth plug-in for programming via smartphone app

Power supply: 230Vac, 50Hz

Motor power: 33W

Motor voltage: 24Vdc

Battery included: 12Vdc, 1.3AH

Temperature : -10°C to 55°C

Lock Input: 1 x 12V 1A

Rating: IP22

Cycles: Tested for 500,000 cycles
